Saginaw+4DTV sensor cables ?

Status
Please reply by conversation.
SatGuyPR

SatGuyPR

Thread Starter
Member
Jun 10, 2008
14
0
Clarke Belt

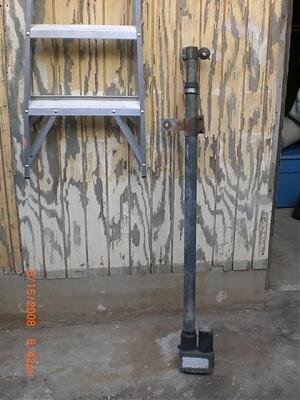

Got this Saginaw 36in monster actuator (experienced)
will use 4DTV DSR922 as positioner for my BUD-10

Saginaw cables schema...

1. power-black
2. power-red
3. not used
4. sensor-red
5. sensor-black
6. sensor-green

Motor educated guess...
1= M1
2= M2

Sensor educated guess...
4= red = +5V
5= black = ground
6= green = pulse

Sensor seems to be Hall Effect type 3-wires (guess)
Downloaded manuals from Danaher Motion...
but nowhere found the sensor cables schema...


Can you help me ?
dont want to burn my "new" Saginaw...

Thanks in advance...

and thanks July for this nice gift...


attachment.php



Attachments

  • TS36_JULY.JPG
    22.8 KB · Views: 209
gabshere

gabshere

SatelliteGuys Pro
Aug 20, 2006
3,720
21
Rison , Arkansas
sounds like you got them all but looking at an old diagram in my GI2400 book it shows that the terminal locations for a west mounted saginaw actuator should be

terminal 1 M1 = RED
terminal 2 M2 = Black
terminal 3
terminal 4 +5 Red
terminal 5 Pulse Green
terminal 6 Grnd Black
