Wondering what channels I can get with some old equipment.

nointernetguy

Member
Original poster
Jul 21, 2024
7
0
Upper Peninsula of Michigan
I want to get some FTA channels out at my camp because I stopped using Directv a little while back. I currently just have like 10 OTA antenna channels but I see there are lots of FTA satellite channels out there. I have a very old sat dish from like 2007 or something and a newer oval one from around 2018. I also have a old DIRECTV R15 Receiver and a Directv Gemini receiver that I'd prefer not to use because I lost the remote. I'd honestly be happy with even 1 new channel off Galaxy 19 or a different one. According to my research I should be able to use the new satellite dish with the R15 and still get some of the MPEG-2 channels. Should I spend my time setting this up or no?

As far as a new FTA receiver goes if you are looking for a small investment just to see if things work out for you there are inexpensive (from Asia) receivers to get you started. Perhaps this one?

GTMedia V7 S5X

There are other receivers out there with better support though if you have a few more bucks to throw at them. ;)


You may need a new LNB to mount at the focal point of your dish. Can you post photos of the dishes you have?

Re: I know I’ll need new lnbs for all of them, I’m wondering how many channels I’ll get now. I also have a few old small circular dishes but they’re pretty rusty and I think they’re to small for anything.


Attachments

  • IMG_1632.jpeg
    91.9 KB · Views: 17
  • IMG_1633.jpeg
    390.2 KB · Views: 16
  • IMG_1632.jpeg
    91.9 KB · Views: 16

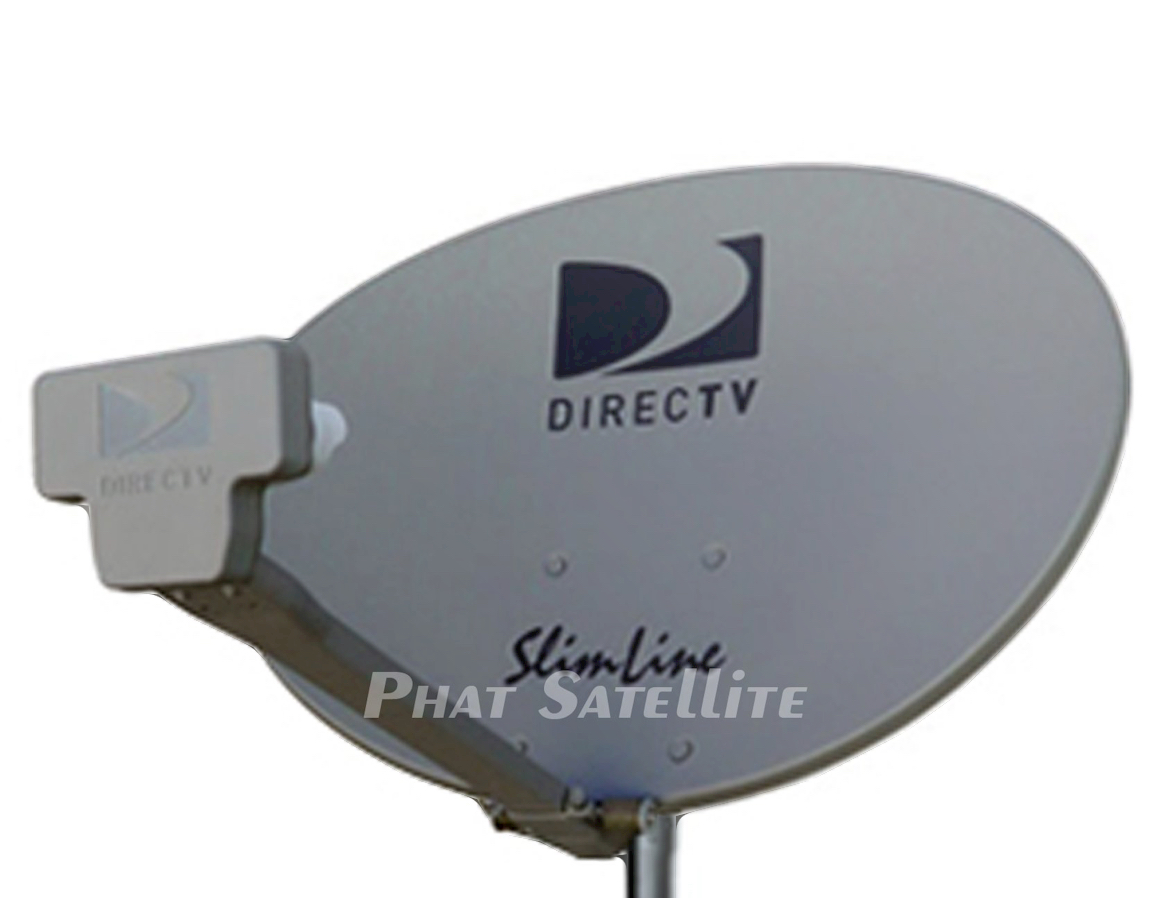

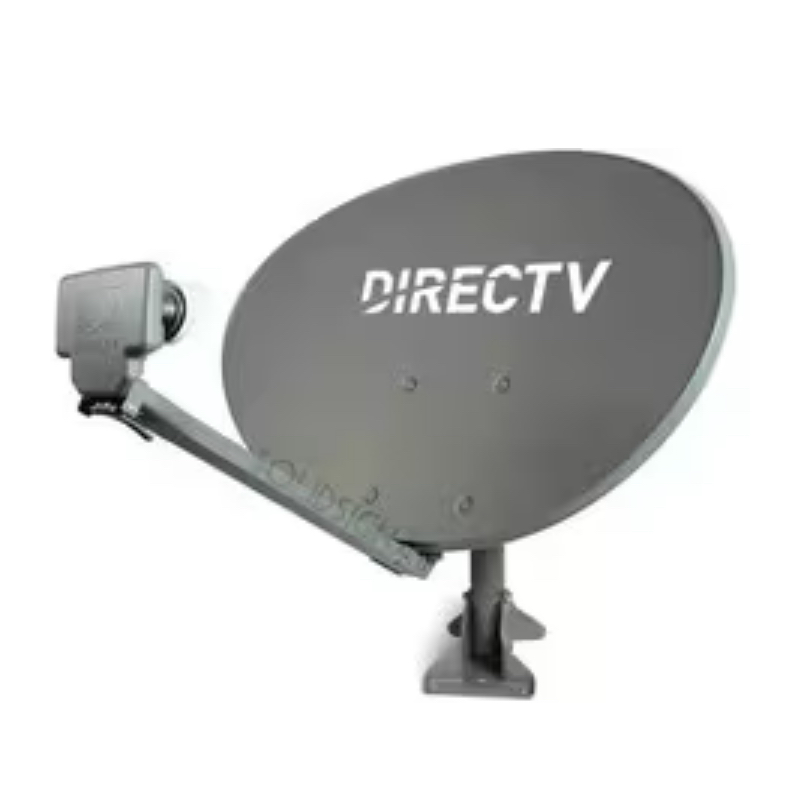

If your dish antenna looks like the ones in the photos above (DirecTV Slimline or the 5LNB cluster), I have had good luck with those. I currently have one of each pointed at 87W and 129W. Replaced the stock LNBF assembly with a linear by drilling a hole in the appropriate spot and adding one of Hyper Casey 's LNB holders with a linear LNBF. I did have another of them for a couple of days in the front yard* on a temp mount pointed at 67W, with a DishPro tacked to the side for 77W.

If you can find locally an old SuperDish, or even better HughesNet, those work great too. I have one of the Hughes dishes pointed at 97W, with additional LNBs for 101W and 105W.

For multiple dishes, you'll want to look into DiSEqC 4x1 or 8x1 switches, and there are more complicated ways if you want multiple dishes and multiple receivers. But sounds like you'll be happy with one dish into one receiver at least until the bug bites you.

* until Mrs Pepper said no dish antennas in the front yard!

Last edited:
Those dishes should be ok for most Ku signals as long as you don't mind losing them during heavy rain/snow. They might be a tad too small for weaker signals like Montana PBS on 99W or LPB on 87W, depending on your location. But once you get a new LNBF mounted, they are definitely worth a try. They would probably work fine for the NHK multiplex on 101W, maybe for the PBS multiplex on 99W, and 97W

Have fun!

Those dishes should be ok for most Ku signals as long as you don't mind losing them during heavy rain/snow. They might be a tad too small for weaker signals like Montana PBS on 99W or LPB on 87W, depending on your location. But once you get a new LNBF mounted, they are definitely worth a try. They would probably work fine for the NHK multiplex on 101W, maybe for the PBS multiplex on 99W, and 97W

Have fun!
Do you think I could get byu on 116.8 w?

BVN has a low symbol rate and a high error correction rate, so it doesn't take a huge signal to receive it properly. However, I have no idea what the actual output power on their transponder is, or how to do the math anyway. So unless someone comes up with that, the only way to tell would be to try it.

BVN has a low symbol rate and a high error correction rate, so it doesn't take a huge signal to receive it properly....
If Lyngsat is correct, then BVN uses DVB-S2 QPSK FEC 1/2. This means you need 1.0 dB to lock it. Very low and should be easy to lock with minimal signal. It broadcasts exclusively in the Dutch language.

On the other hand, BYU uses DVB-S2 8PSK FEC 2/3. This means you need 6.6 dB to lock. So it's going to be tougher. BYU has some interesting shows in English.

If Lyngsat is correct, then BVN uses DVB-S2 QPSK FEC 1/2. This means you need 1.0 dB to lock it. Very low and should be easy to lock with minimal signal. It broadcasts exclusively in the Dutch language.

On the other hand, BYU uses DVB-S2 8PSK FEC 2/3. This means you need 6.6 dB to lock. So it's going to be tougher. BYU has some interesting shows in English.
All of the lnbfs that I find when I search “ku band fta lnb(f)” are all saying .1 db. Where can I find a higher one?

All of the lnbfs that I find when I search “ku band fta lnb(f)” are all saying .1 db. Where can I find a higher one?

0.1 dB will be reached at about -260 degree Celsius or so, I guess. Or maybe even at -200 or -150.
Not at 'room temperature'.

So it is just a marketing number. It will probably be 0.6 or so at room temperature?

Greetz,
A33
