Channel Master 1,2m issue

Discussion in 'Free To Air (FTA) Discussion' started by RimaNTSS, Jan 30, 2015.

Thread Status:
Not open for further replies.
  1. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga

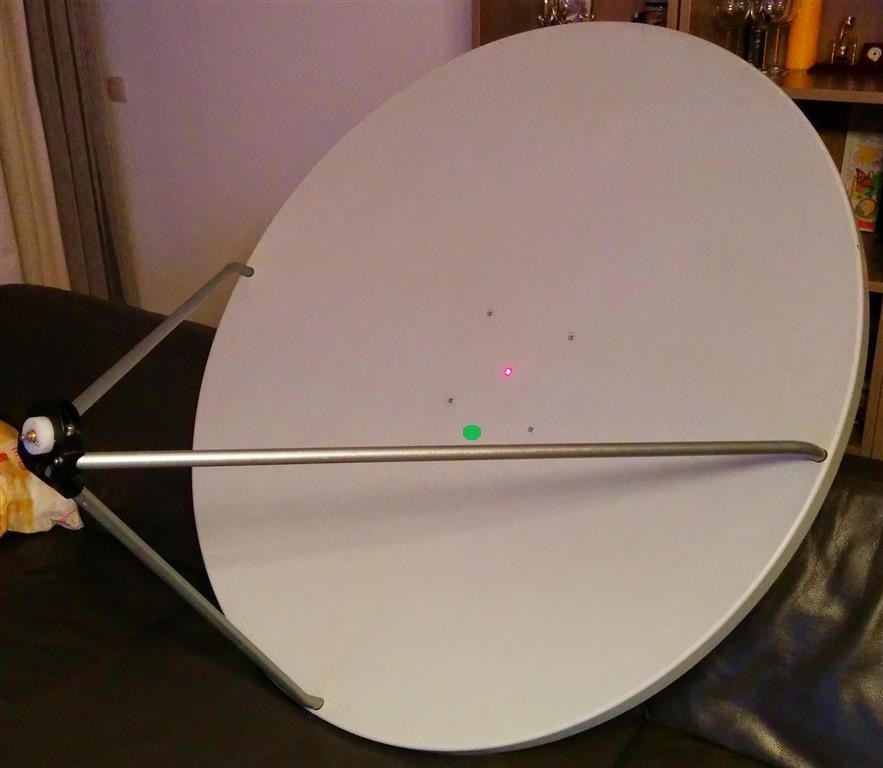

    Hi! I've heard that those dishes are good, but their feedarms and LNB holder do not point LNB to the right spot on the surface of antenna. So, I hot CM1,2m couple of days ago, installed laser-pointer instead of LNB and see that it points directly to the middle of the dish, however, proper aiming point should be about 140mm lower (approximately where I put green dot on attached picture).
    Did somebody tried to check this on your dishes?
    IMG_20150130_182925 (Large)Greendot.jpg

  2. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    Where is it that it 'points out' that the LNBF/feed should be where your green dot is ?? I think the should point to where your laser is pointed, the center of the dish.

  3. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    I would agree with you if that was prime-focus dish, but on offset dishes LNB's aiming point is always lower than middle of the dish. I have no idea why it points where it points. That why I was asking whether somebody else checked this.

  4. Magic Static

    Magic Static FTA Geek Staff Member HERE TO HELP YOU! Lifetime Supporter

    Joined:
    Oct 12, 2010
    Posts:
    6,806
    Likes Received:
    3,909
    Location:
    Montana
    It is kind of a "wrong question" thing. You want to know if the LNBF is in the sweet spot of the dish. But seeing what the LNBF is pointing at doesn't confirm it's location in reference to the dish.

  5. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    Where did you learn this?? I'd like to know the authoritative 'source'.
    I would think the manufacturer is 'In The Know' of where the LNBF should be pointed.
    Have you tried loosening the LNBF clamp and aimed it lower?? Is there an increase in Q on weak transponders??
    BTW, that's All I have in offset dishes, CM's 30 inch to 1.2 meter.
    Further experimentation:
    Clamp a camera into the holder. Take a picture, and I think you'll see the LNBF sees the dish as a perfect circle.
    Think you'd want to aim at its center. That's the point illuminated by your laser.

  6. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    I got this dish couple of days ago, so just washed it and started to explore.

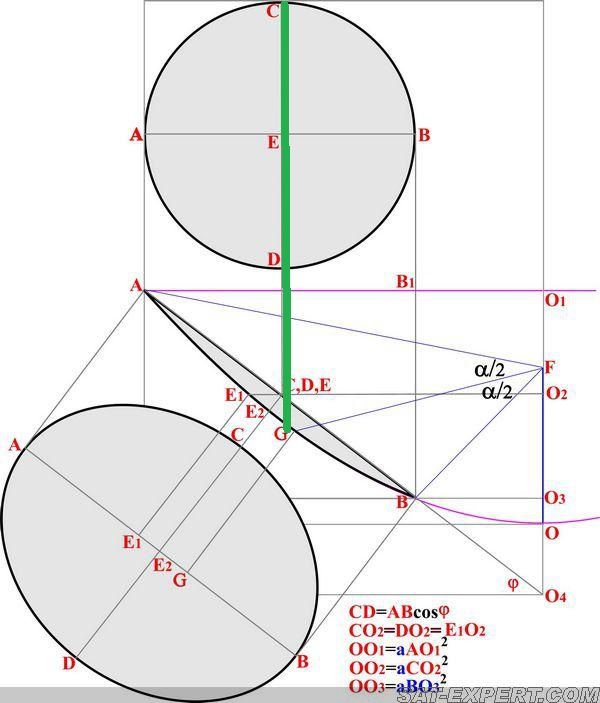

    Maybe attached picture can explain why LNB's aiming point should not be in the center of the dish. I draw green line , pretending it coming from satellite. Upper circle is representing how dish is visible form satellite. In the middle is dish' profile. And bottom oval is our dish, where point G "le point G" represents point our LNB should be aiming.
    Test with camera instead of LNB sounds easy, but doubt it can be accomplish with unmistakable result.

    Sorry... picture Offset.jpg

  7. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    I see an issue with your diagram. Point F signifying the focal point. It is not inline with the with the look angle of the dish.
    The offset dishes bottom lip, in line with the focal point, is where an offset dish looks to the satellites.
    The focal point should be at the point labeled B1. Where the LNBF also sees a circle. At F it would be an oval.

  8. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    Perhaps drawing is not perfect. But with that you are saying that LNB should be aiming right to the center of the offset dish?
    And, BTW, drawing is just indicative and Focal point is located in focus of PFA from which offset is cut-off. You can see curved pink line in continuation of the offset dish.

  9. polgyver

    polgyver Creative Tinkerer

    Joined:
    Sep 21, 2010
    Posts:
    441
    Likes Received:
    264
    Location:
    Toronto

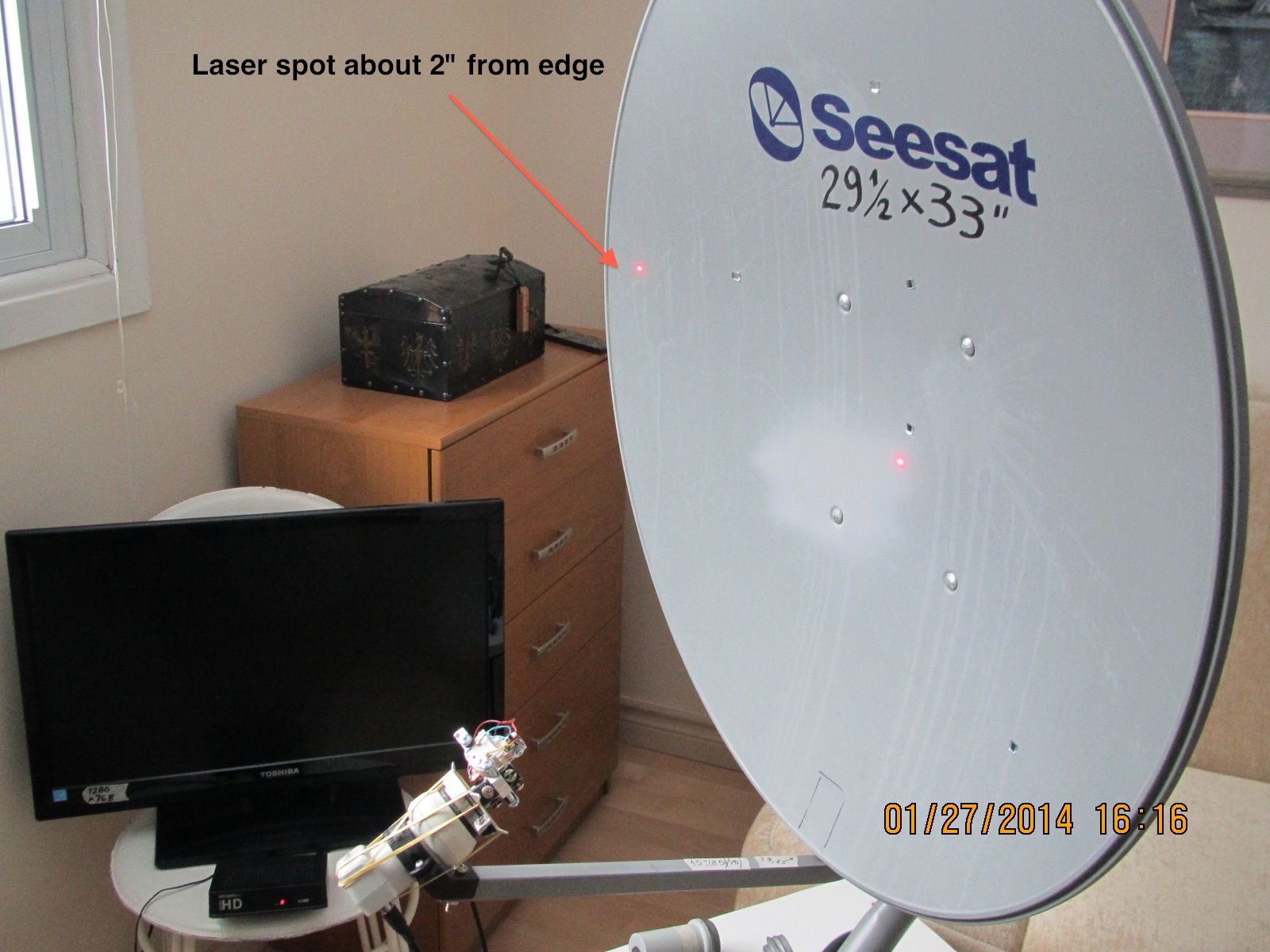

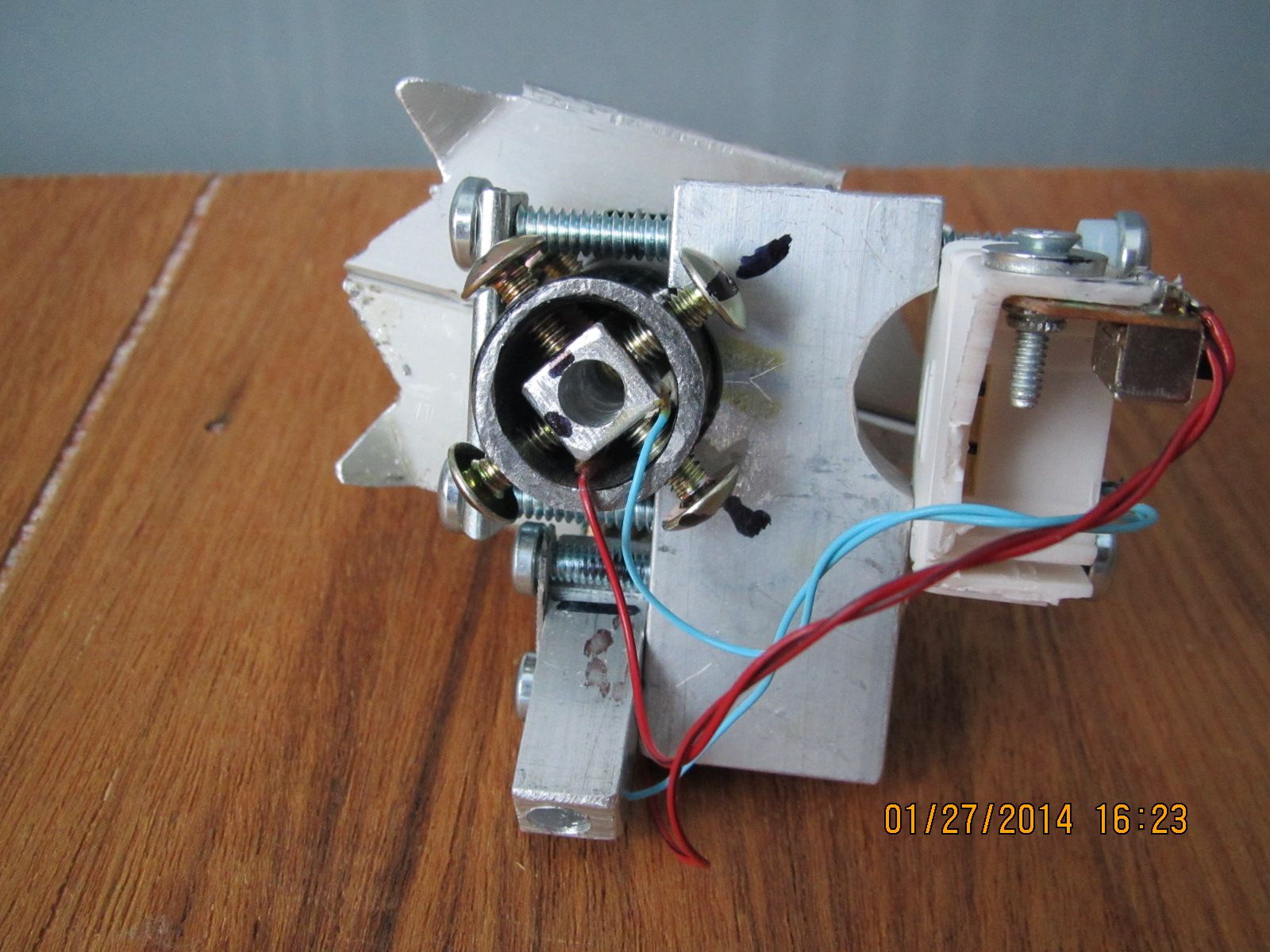

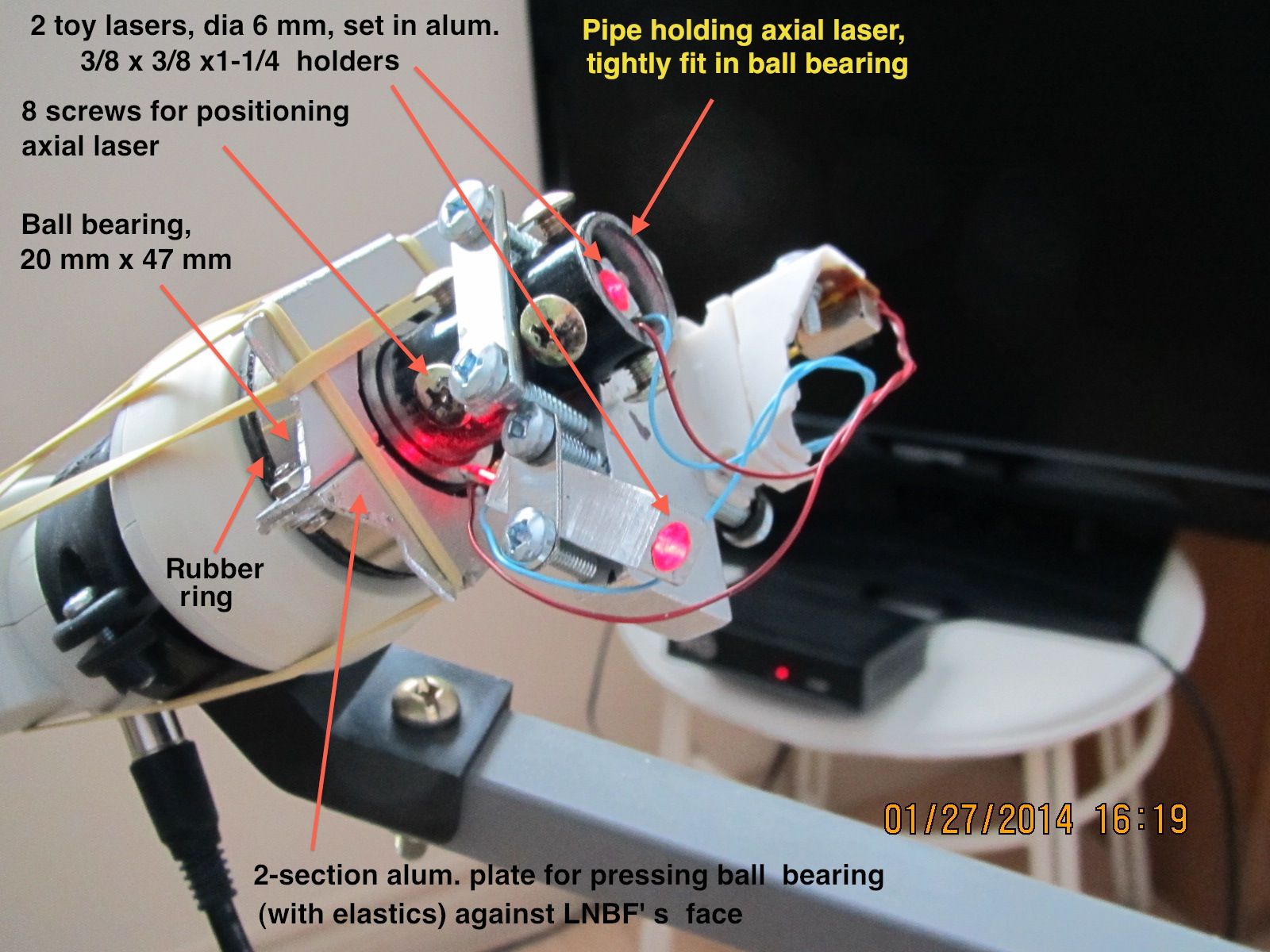

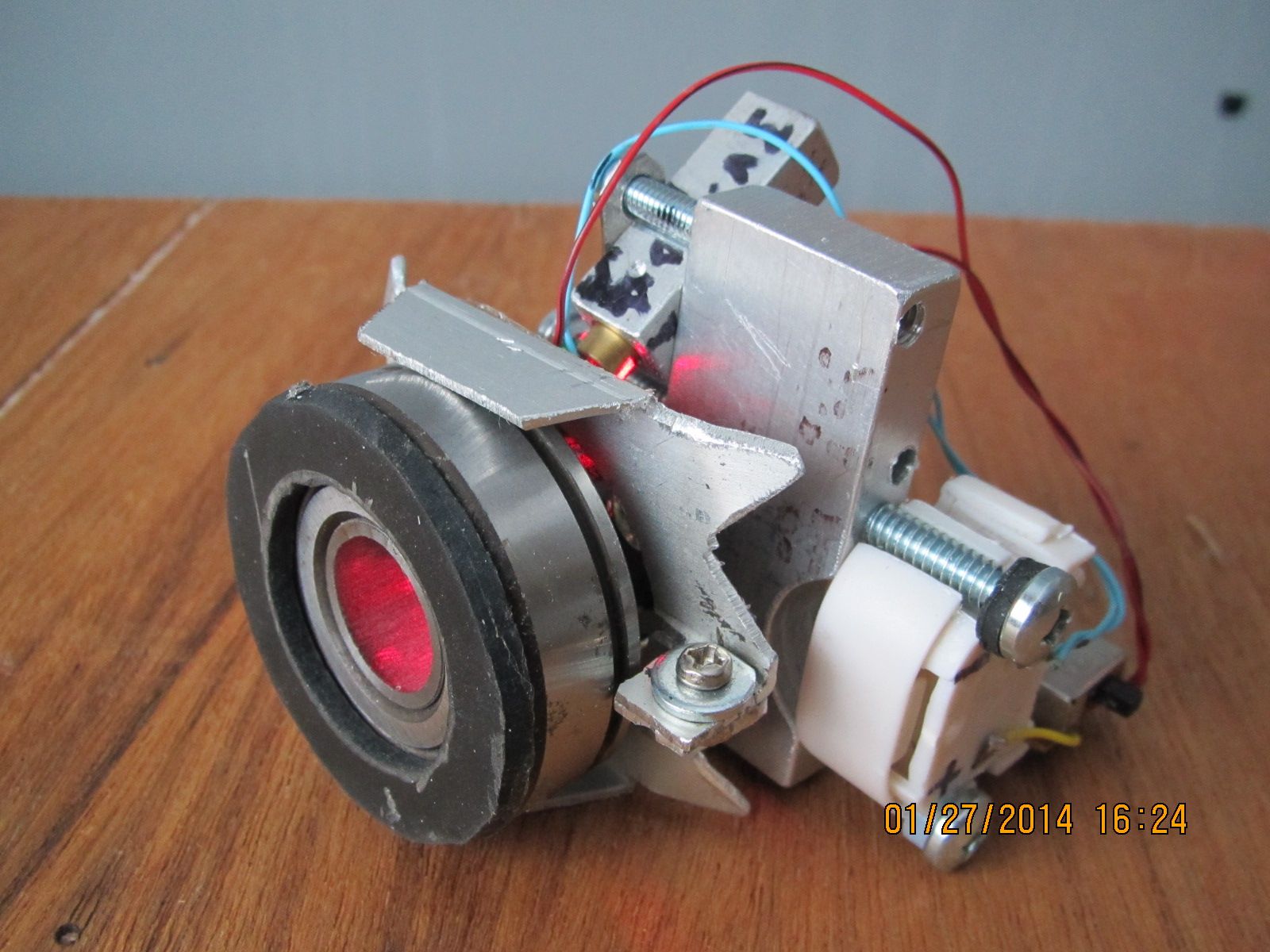

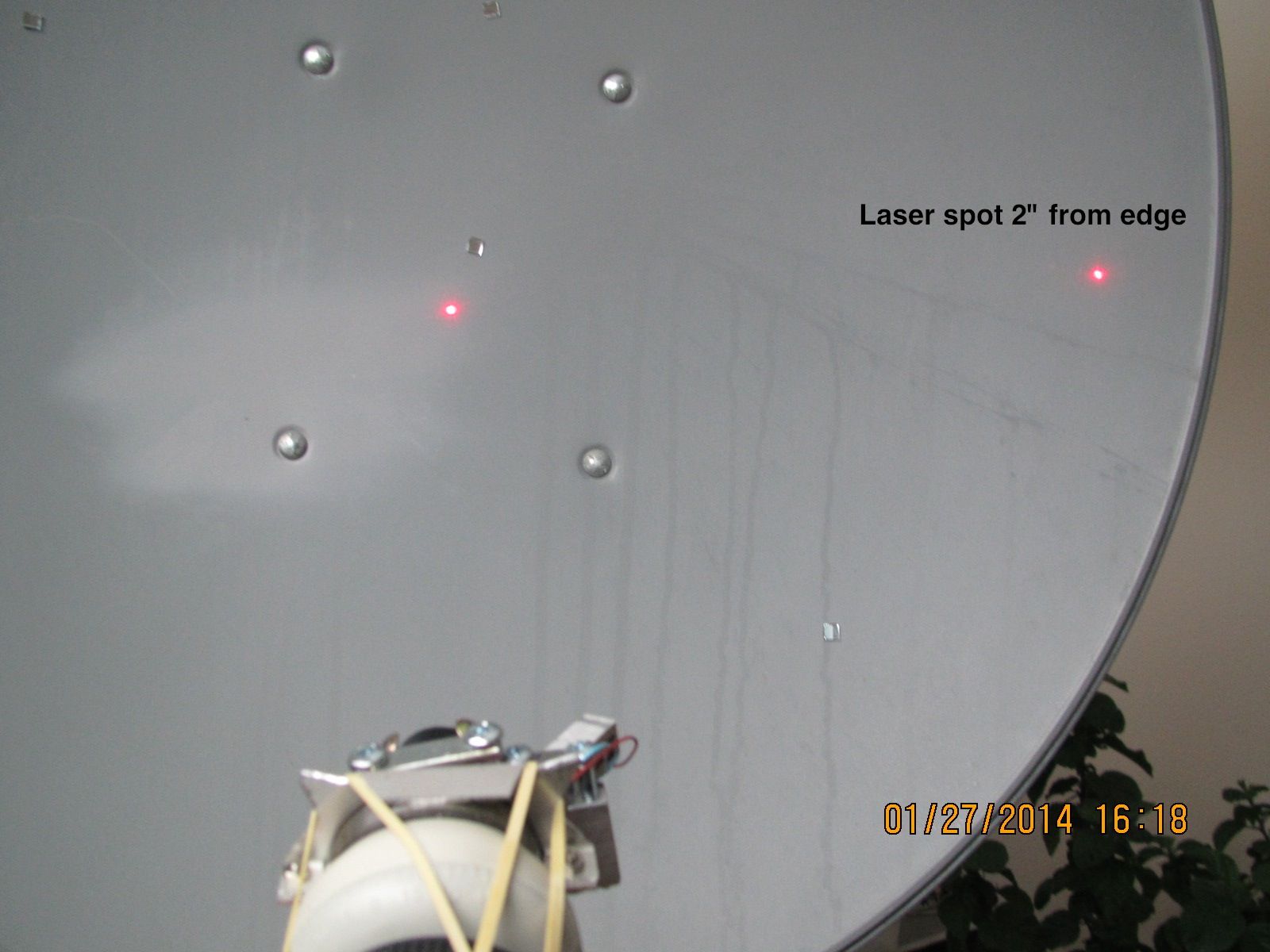

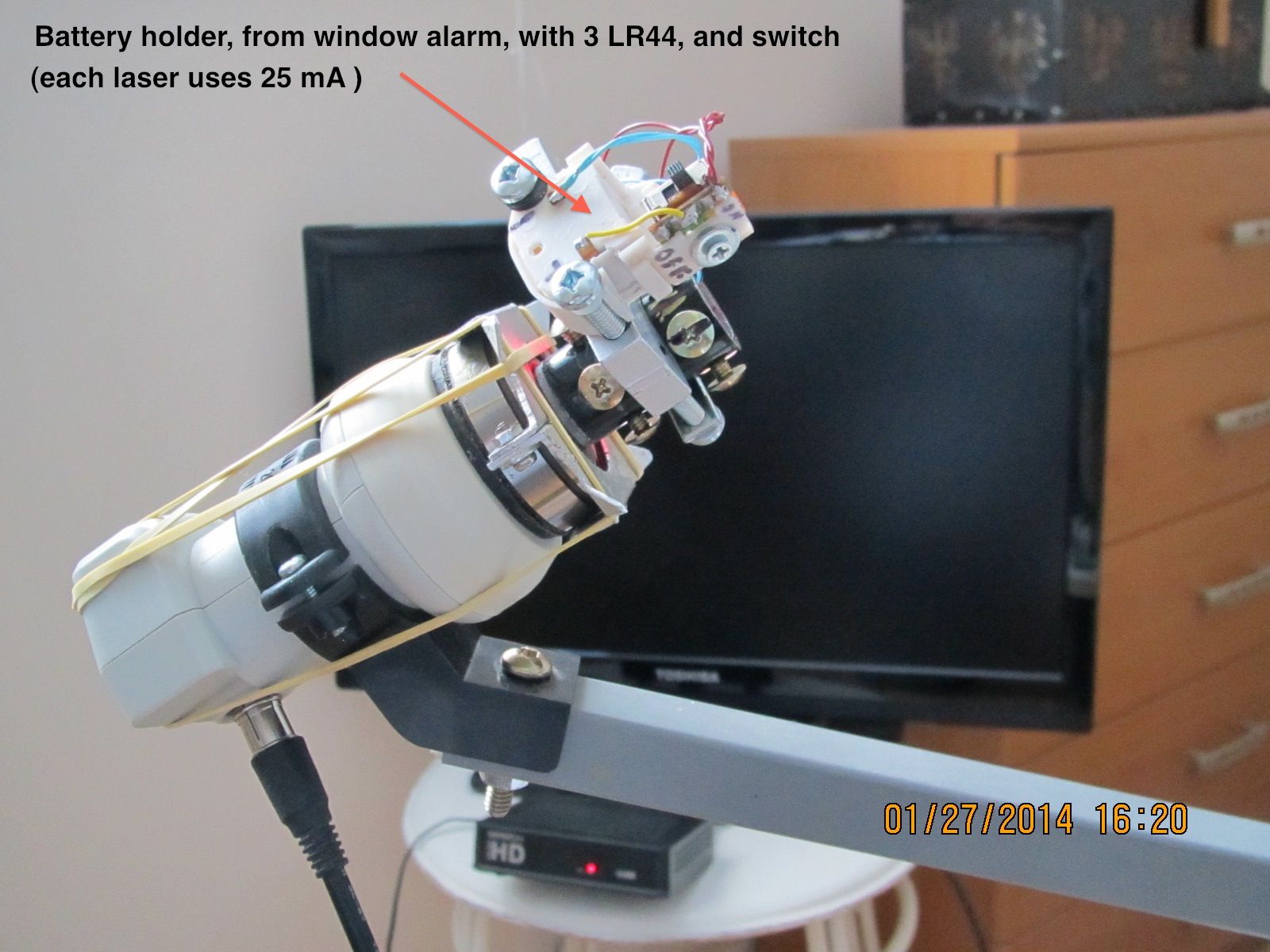

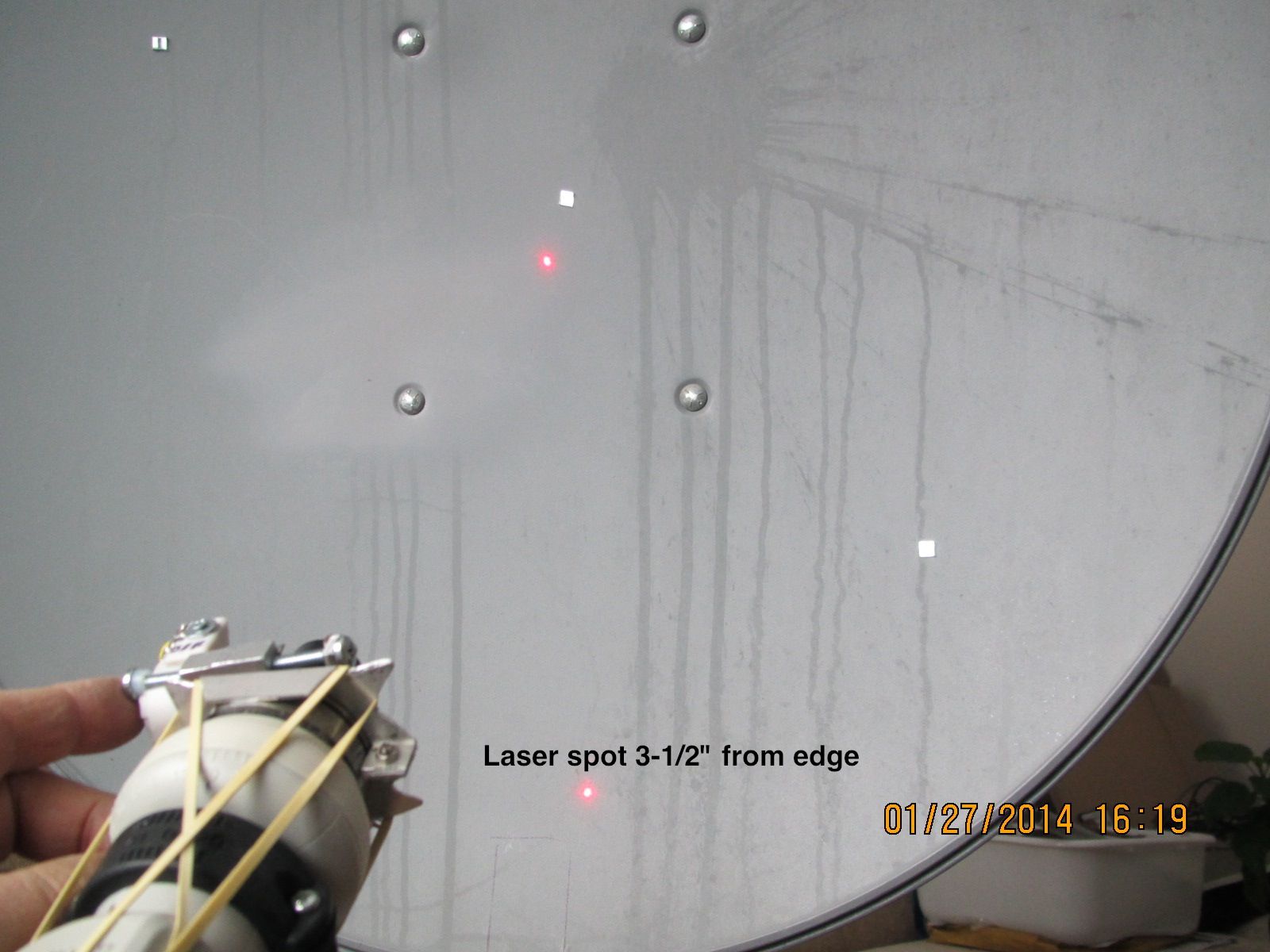

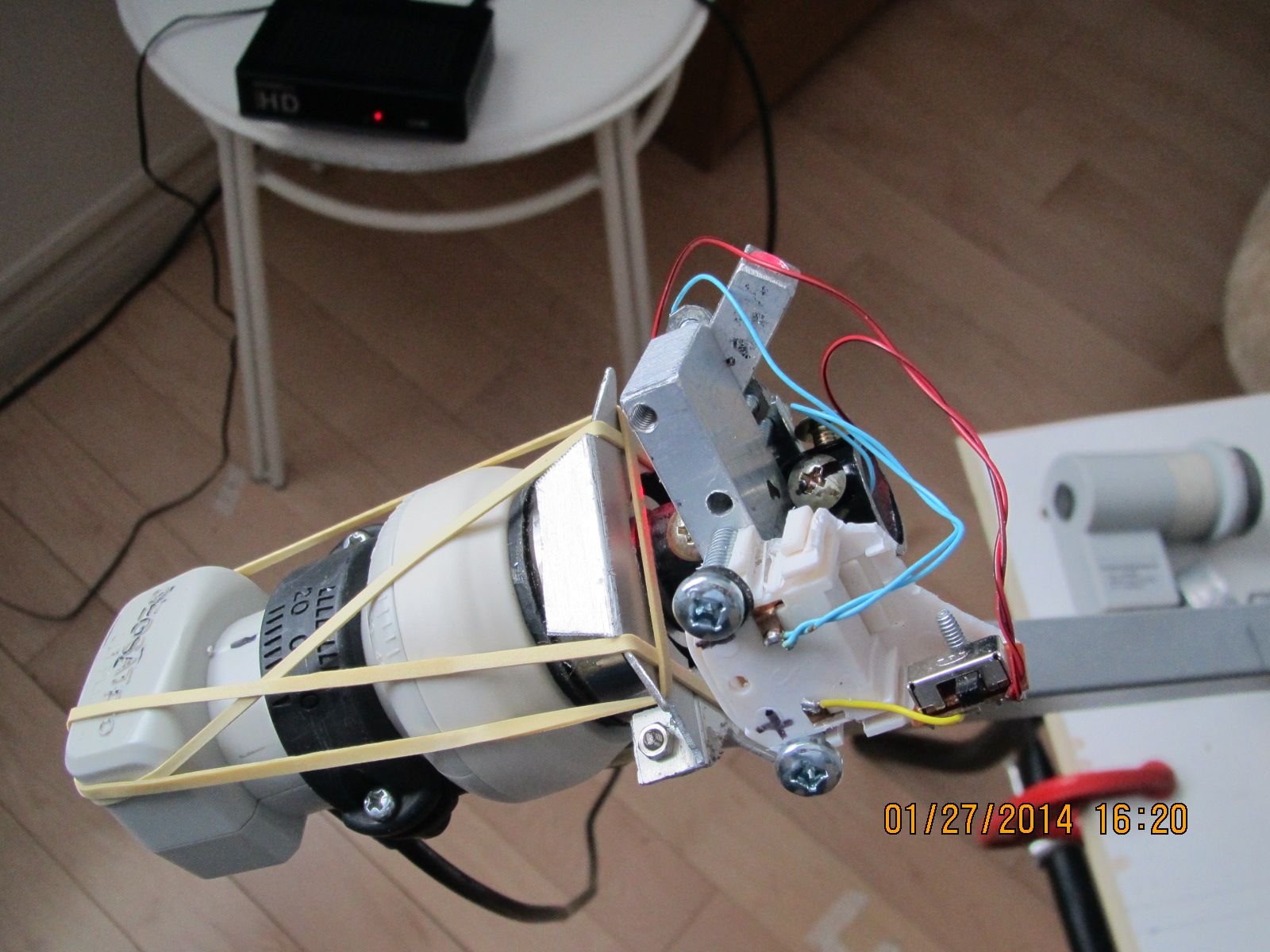

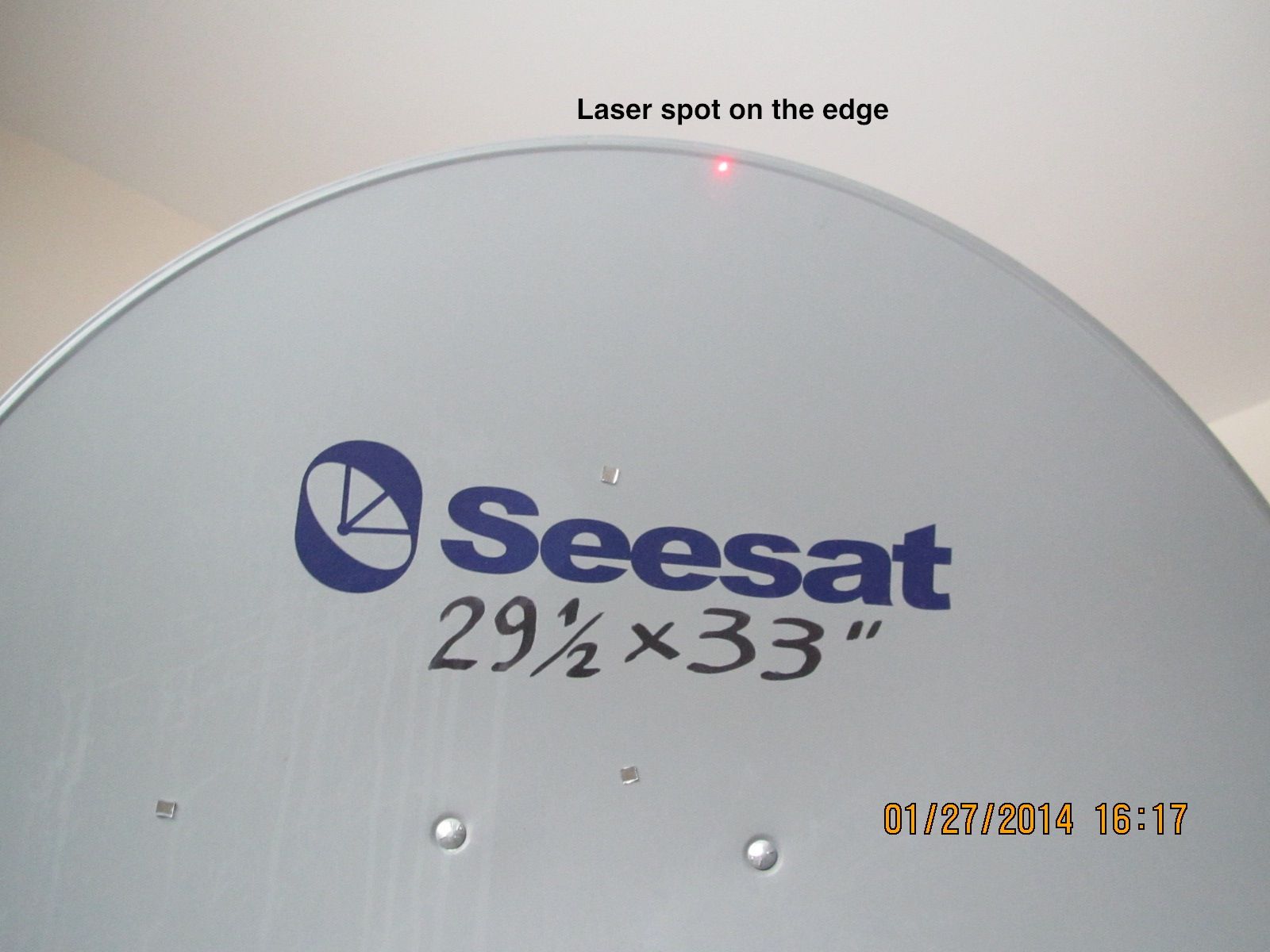

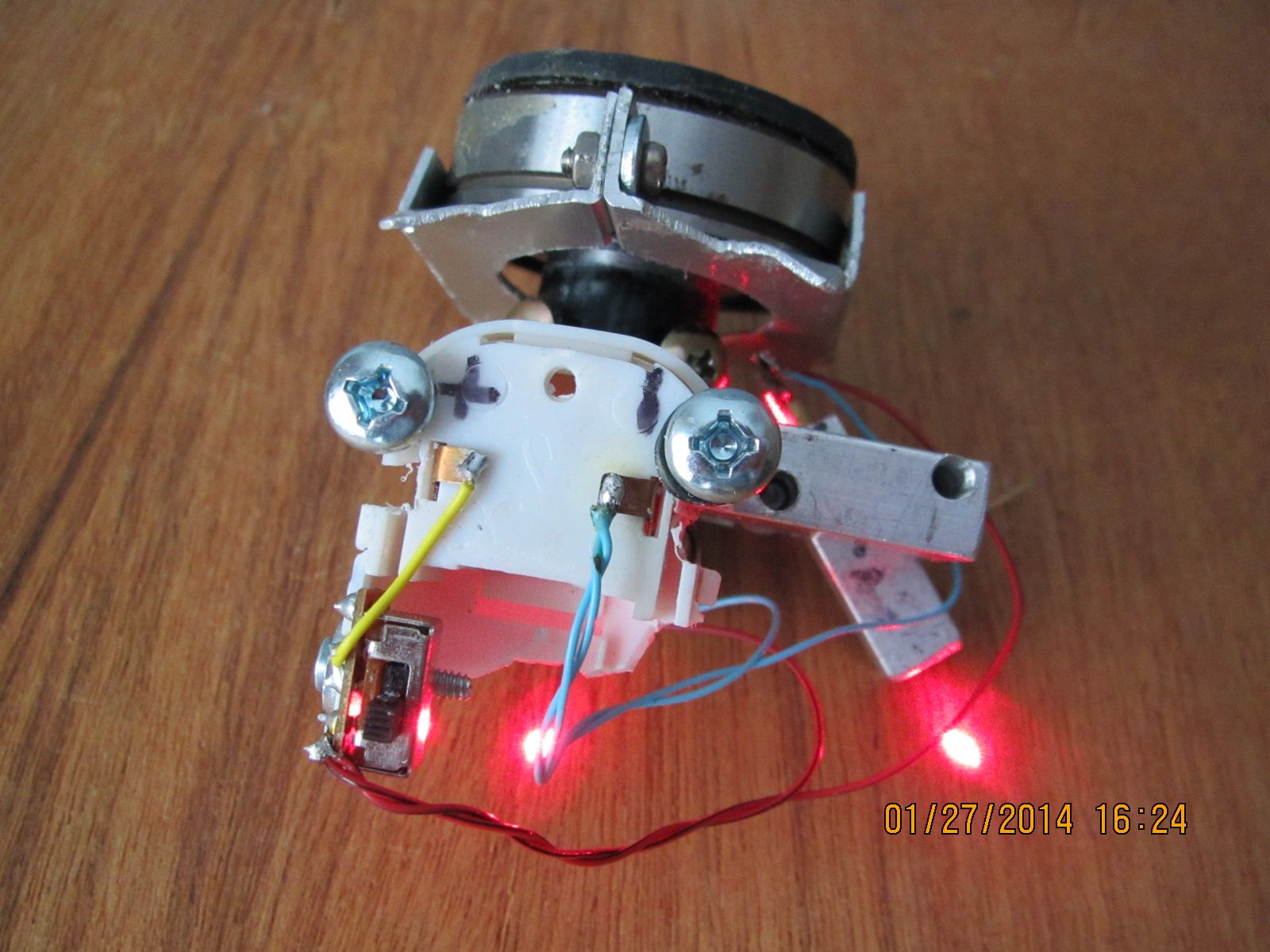

    I tried it with 2 lasers.
    IMG_0919.JPG IMG_0918.JPG IMG_0916.JPG IMG_0914.JPG IMG_0913.JPG IMG_0912.JPG IMG_0910.JPG IMG_0909.JPG IMG_0908.JPG IMG_0907.JPG

    Jason S likes this.
  10. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    Thanks for sharing those pictures. Construction looks sooo complicated. So, You've tried, and your conclusion is.....? :shh
    I am not sure I understand need for second laser. Could you explain process you went through?

  11. jorgek

    jorgek SatelliteGuys Pro

    Joined:
    Mar 11, 2013
    Posts:
    1,196
    Likes Received:
    202
    Location:
    Near Toronto
    The focal point will vary depending if the offset dish is round or oval.

  12. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    Do not fully understand what you mean by that.
    Of course, different dishes may have focal points located in different places.

  13. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    All along. Yep.
    the pink line is the parabola the offset is 'sliced' from. The bottom lip of the offset (should) terminate at the center of the parabola.
    Move the bottom lip of the dish to terminate at point O, not at the level of O3. Think that will change things.

    (On all my CM dishes, the LNBF shadow [upper half] is seen shading the very lower lip when the sun is in the same position as the satellite it's aimed at. Should be happening again shortly - twice a year - sun outage seasons)

    The radiation pattern of the LNBF is a circular cone. And if the satellite, and the LNBF, see a circle. The center (of a circle) is the center. That makes the angle of the cone equal on either side of the 'boresight' of the LNBF.
    And I think that would be the flat plane of the reflector. (Spanning across,lip to lip)

    If you can get better performance by aiming your LNBF lower, I may be wrong, But I don't think so.
    FWIW: Parabola Calculator 2.0 Use the WIFI tab for offset dishes.

    jorgek likes this.
  14. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga

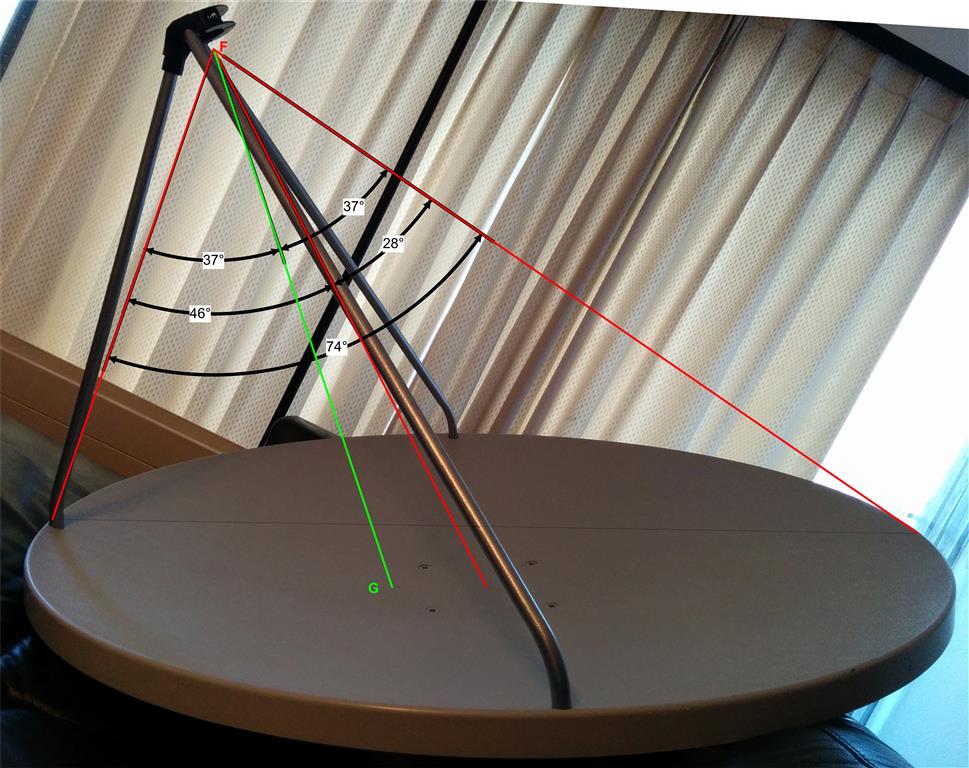

    I made small drawing. Because of angle picture was taken opening angle of the dish is slightly smaller than it is in reality. LNB, in original holder points to the middle of the dish and this line does not illuminate dish evenly. If LNB was pointing to G spot, illumination would be better.
    I know parabola Calculator 2.0, and if you calculate CM 1,2m in that program you will get distances from upper and lower points of the dish 1221mm and 721mm, so dish opening angle 79*. And after making bisector of this angle from focus, another bisector end will hot dish at point G.
    Not all offset dishes are cut-offs from parabola starting cut from parabola's focal line.

  15. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    Got me re-thinking

  16. jorgek

    jorgek SatelliteGuys Pro

    Joined:
    Mar 11, 2013
    Posts:
    1,196
    Likes Received:
    202
    Location:
    Near Toronto
    Got me thinking too. Since it is a round dish rather than oval, shouldn't the focal point be in the middle of the dish?

  17. RimaNTSS

    RimaNTSS Topic Starter SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    758
    Likes Received:
    802
    Location:
    Riga
    This is oval dish, has working area 1200mm x 1300mm. By saying "focal point" did you mean aiming point? No, it can not be in the middle of the dish!

  18. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    OK, You're probably right. I'm beginning to think the center of the 'circle' seen by the feed is below the physical center of the dish.
    BUT I don't think there will be much, if any, improvement in performance. Otherwise, I'm sure the manufacturer would have incorporated it into their design.
    Reference 6: REFERENCE-6.jpg
    Source: http://www.qsl.net/n1bwt/chap5.pdf

  19. primestar31

    primestar31 SatelliteGuys Master

    Joined:
    Mar 15, 2005
    Posts:
    8,210
    Likes Received:
    4,490
    Location:
    Beta Omicron Delta III
    Do you guys seriously believe Channel Master would design their dish and feed system wrong, and it would stay that way for almost 20 years without anybody else saying there's a problem?

    It's designed that way for a reason, and that's just the way it is for whatever reasons of design they were concentrating on. It's pointed at the center, because that's were it works best for the particular offset angle.

    hank123 and pdiddy like this.
  20. FaT Air

    FaT Air HOA Free Zone

    Joined:
    Feb 27, 2010
    Posts:
    6,668
    Likes Received:
    913
    Location:
    97W 48N
    No. I think it's designed to the best performance possible.

    primestar31 and jorgek like this.
