Enjoy 107w While It Lasts

Hi all,

It appears that CTV has left this satellite, ending my long running Canadian TV viewing. Signal was supposed to stay active until December, but that timeline changed.
I don’t believe I will be able to receive Canadian TV in its new location…too many trees blocking this satellite.
Oh well…it was great while it lasted.

John

  • Like
  • Sad
Reactions: FTA4PA and c-spand
Hi all,

It appears that CTV has left this satellite, ending my long running Canadian TV viewing. Signal was supposed to stay active until December, but that timeline changed.
I don’t believe I will be able to receive Canadian TV in its new location…too many trees blocking this satellite.
Oh well…it was great while it lasted.

John

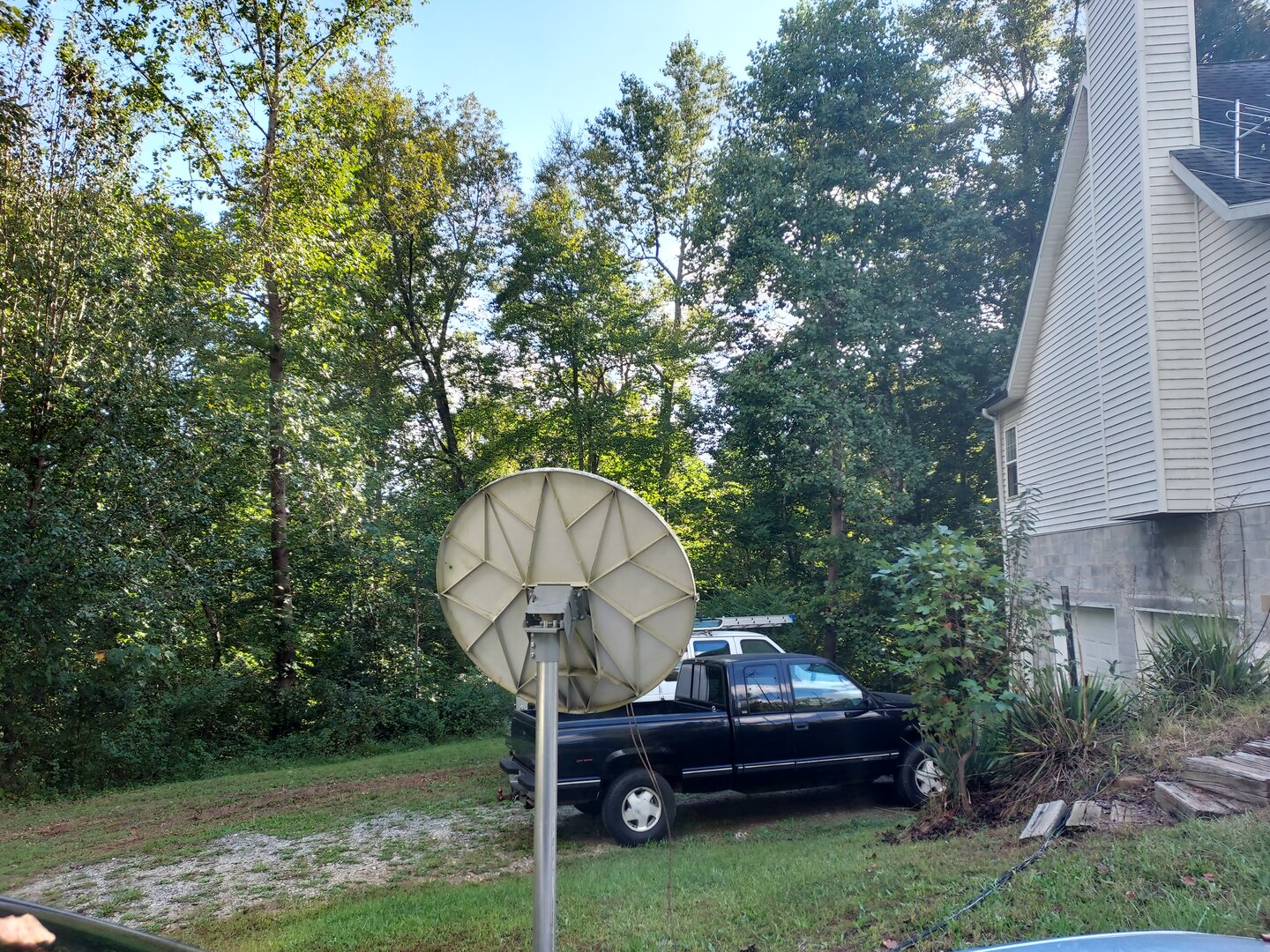

That sucks, I have the same issue with trees on 119 sat. I can get the DVB-S channels, but not enough signal for the DVB-S2 ones.

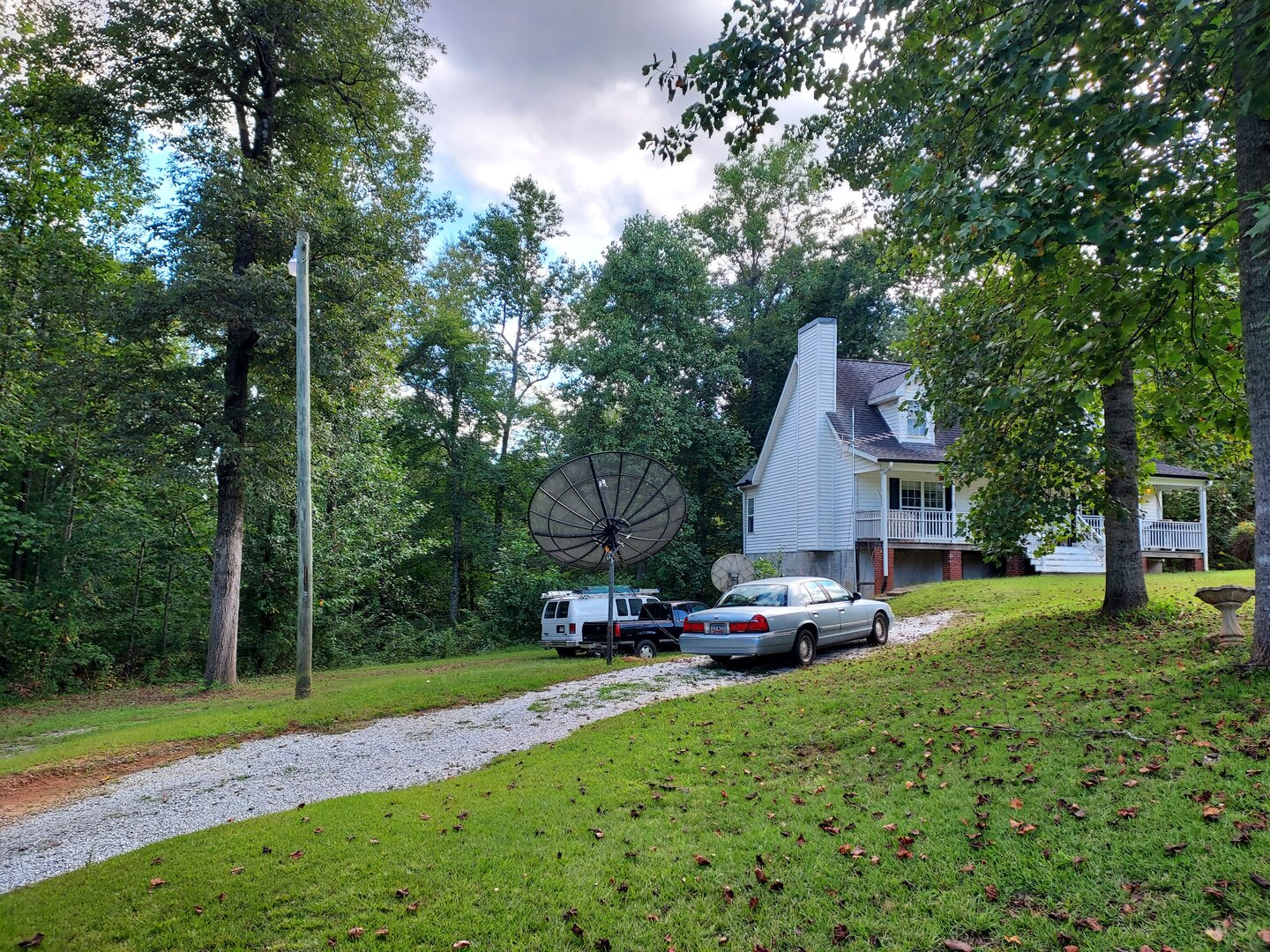

Anybody that says it can't be done check this out.


Attachments

  • 20210925_164654.jpg
    624.2 KB · Views: 216
  • 20210925_173010.jpg
    664.1 KB · Views: 189
I still can't get CTV or the Weather Network. I am getting VSE, though, so I know I'm parked on 119W. I tried re-peaking and re-scanning and still can't get them. They were present last night though.

I still can't get CTV or the Weather Network. I am getting VSE, though, so I know I'm parked on 119W. I tried re-peaking and re-scanning and still can't get them. They were present last night though.
I've got the various weather channels just fine, along with a few other things. Just NOT anything Dvb-S2, such as the CTV channels. My trees are VERY thick and tall maple trees. The only reason I get anything from this sat, is because there's a slight notch between two tree canopies that lets some signal in. IF I had a 10ft dish, or perhaps IF my dish was mounted higher than 7 feet, I then possibly could. Maybe even once all the leaves drop for Winter.

  • Like
Reactions: c-spand
I am on 107 and all there is the VSE channel.

9000i Linkbox and and a 10 foot mesh dish,

My concern is that my Linkbox does not have 119 preprogrammed into its memory!

How can I add 119 without going online and comepletly redoing my Linkbox?

I have a clear view of 119W and I can't pick up anything other than VSE. So I don't believe others are picking up the weather network or ctv. VSE is 13 dB SNR.

I have a clear view of 119W and I can't pick up anything other than VSE. So I don't believe others are picking up the weather network or ctv. VSE is 13 dB SNR.

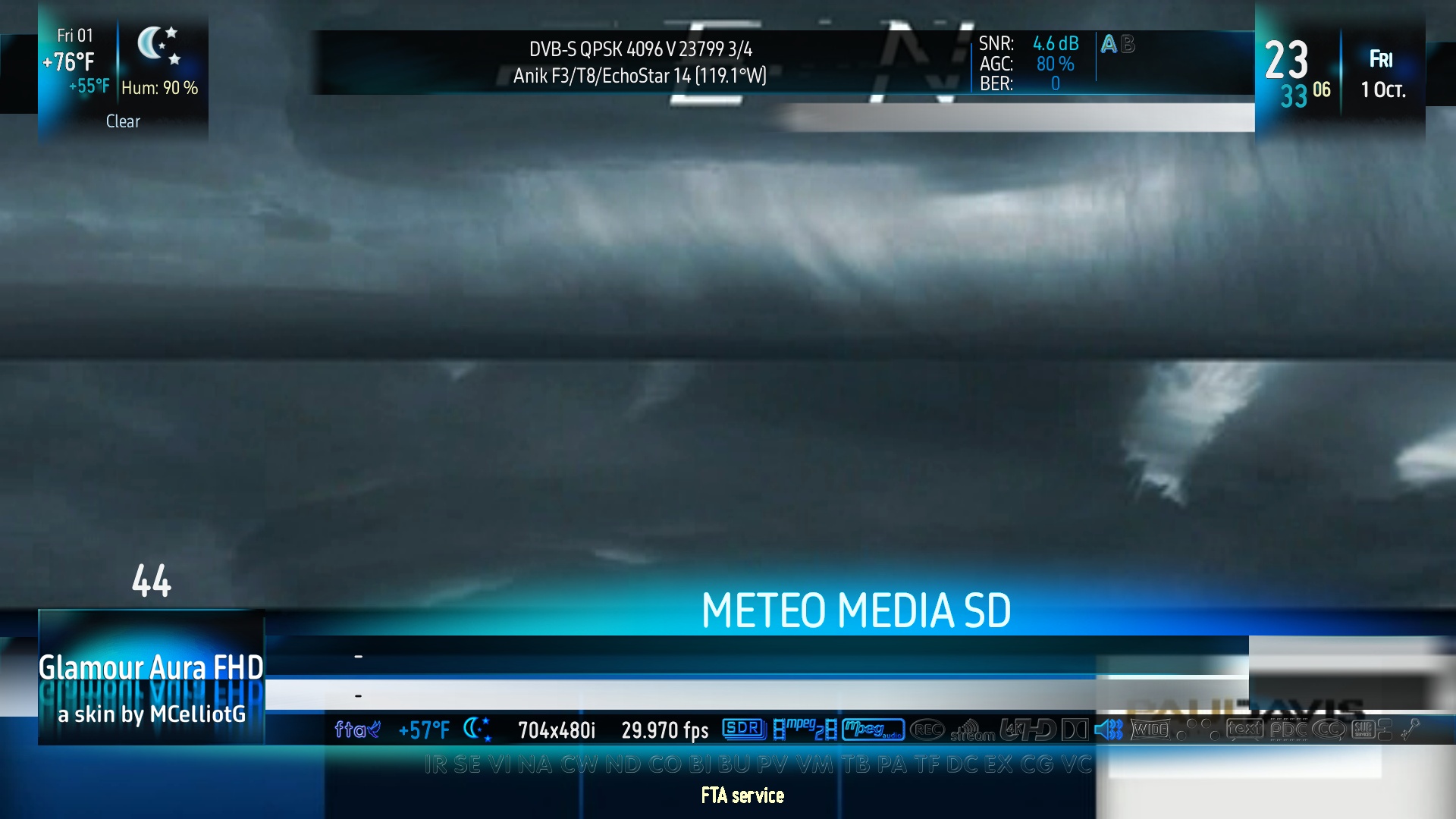

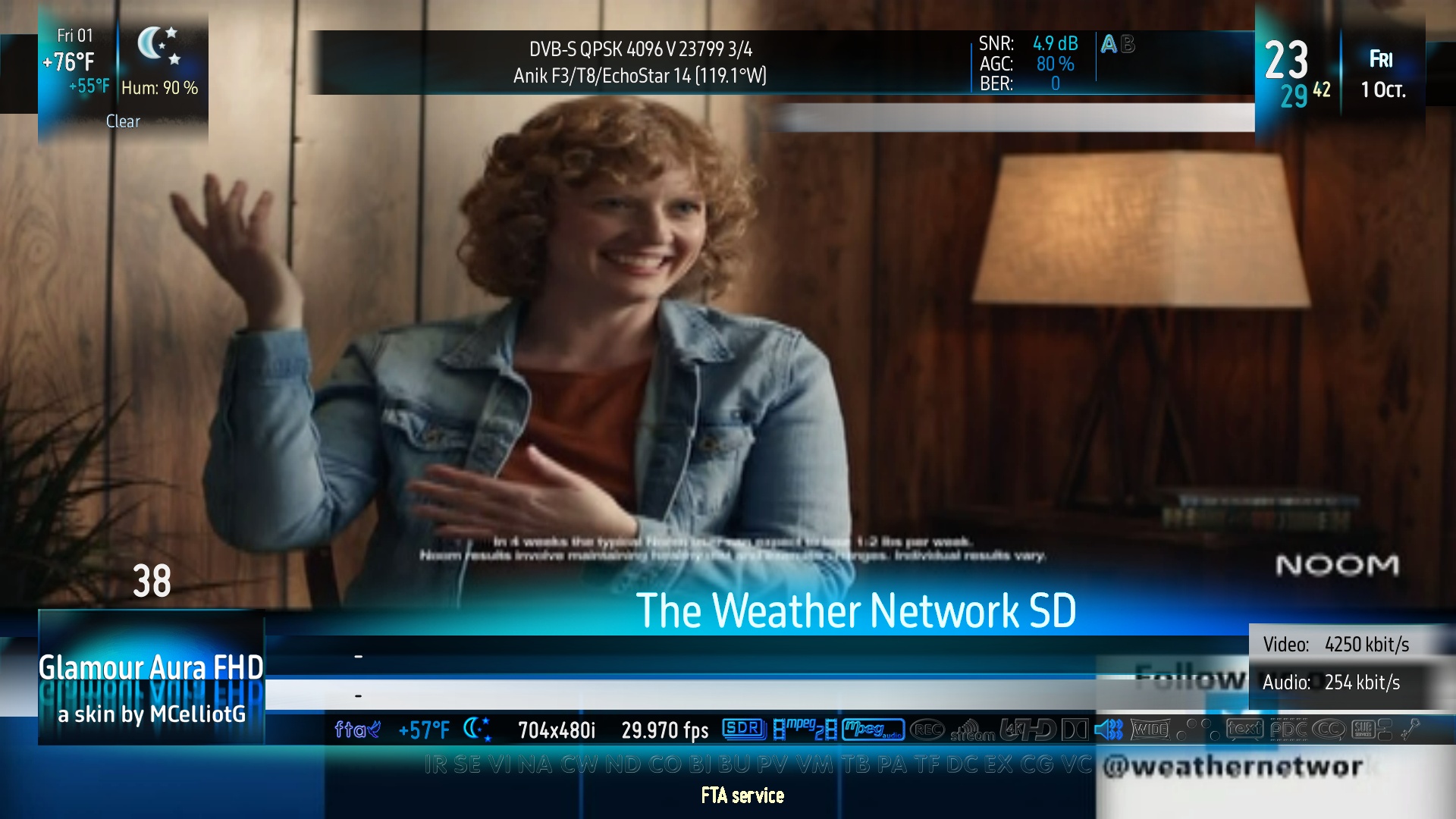

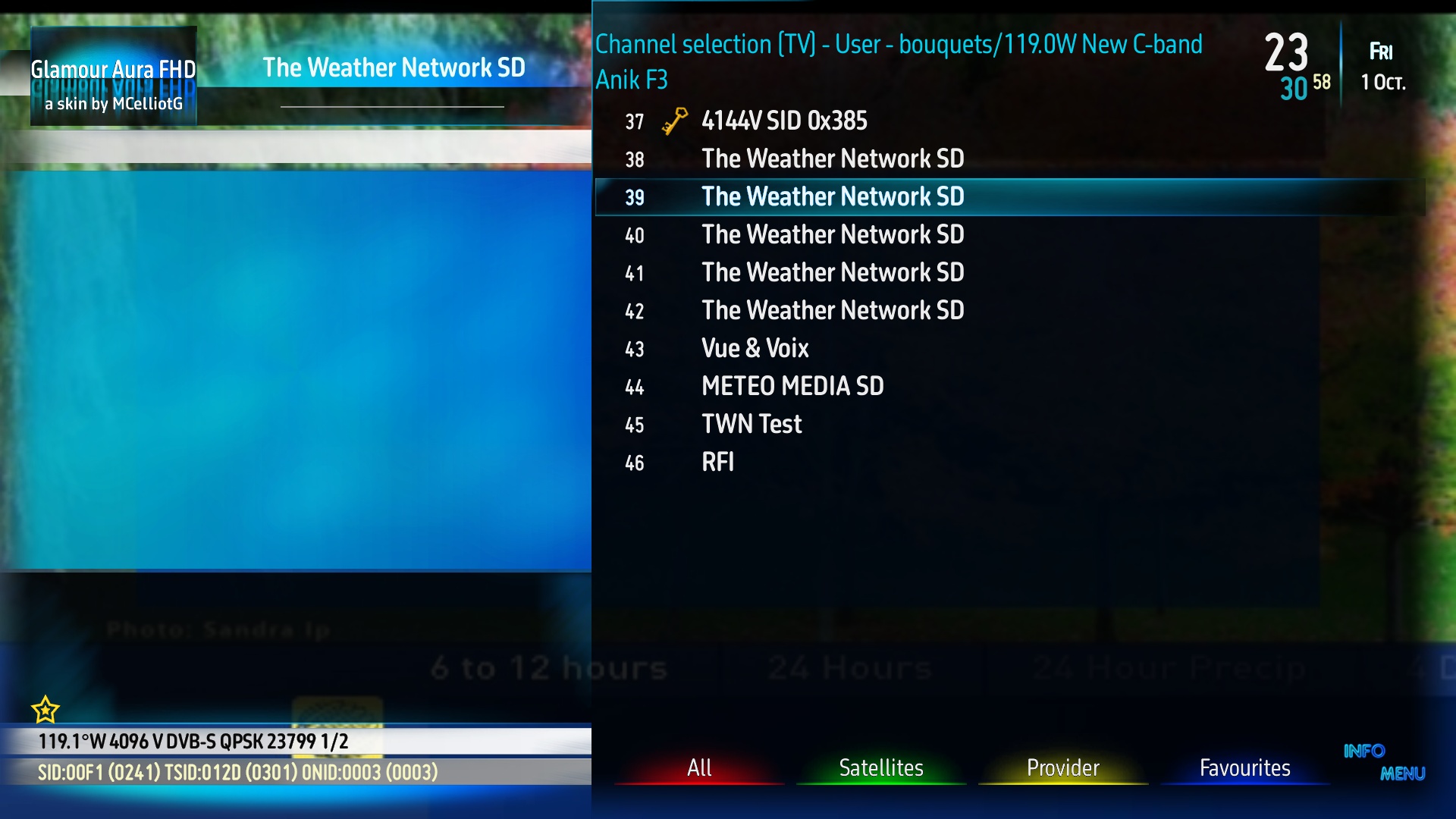

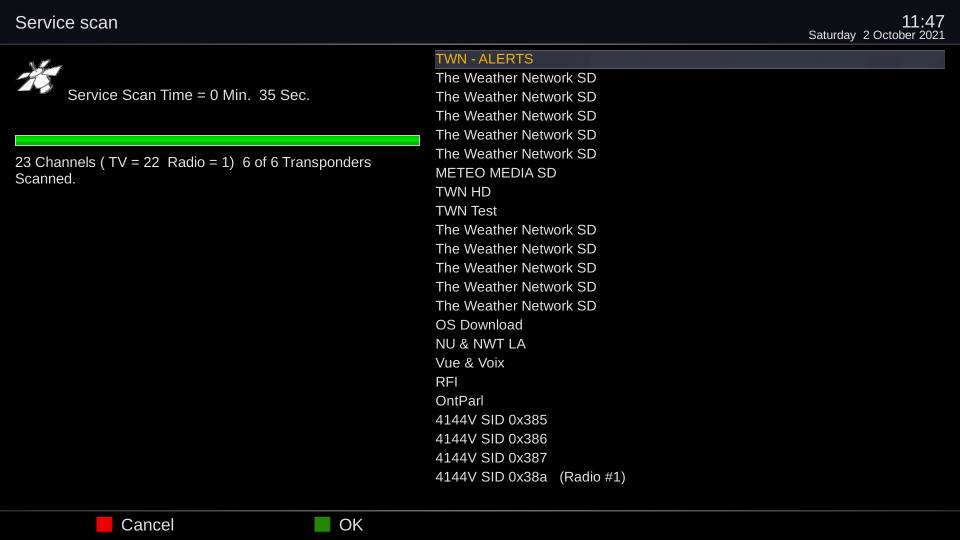

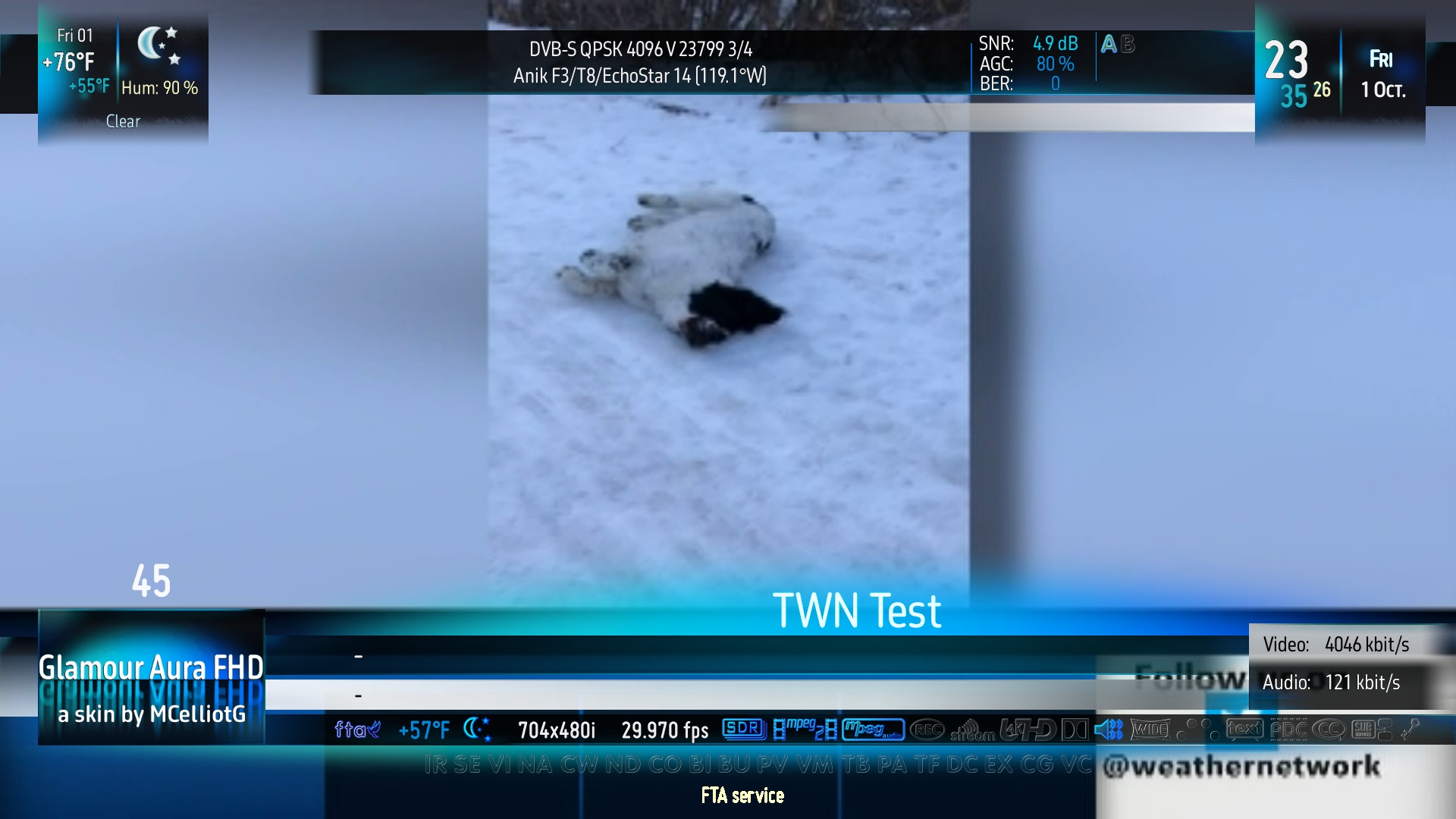

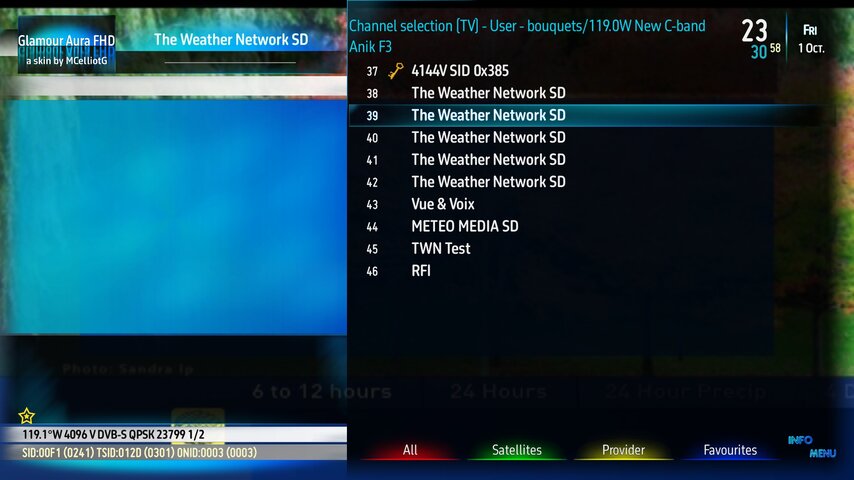

So, you just think we are all lying? These are all with my 7.5' dish, and with that sat mostly blocked by a huge maple tree. Seems to me your dish has a problem.

1_0_1_122_12D_3_9699000_0_0_0_20211001233307.jpg1_0_1_12B_12D_3_9699000_0_0_0_20211001233526.jpg


Attachments

  • 1_0_1_F0_12D_3_9699000_0_0_0_20211001232942.jpg
    440.5 KB · Views: 176
  • 1_0_1_F1_12D_3_9699000_0_0_0_20211001233030.jpg
    305.1 KB · Views: 177
  • 1_0_1_F1_12D_3_9699000_0_0_0_20211001233058.jpg
    351.2 KB · Views: 187

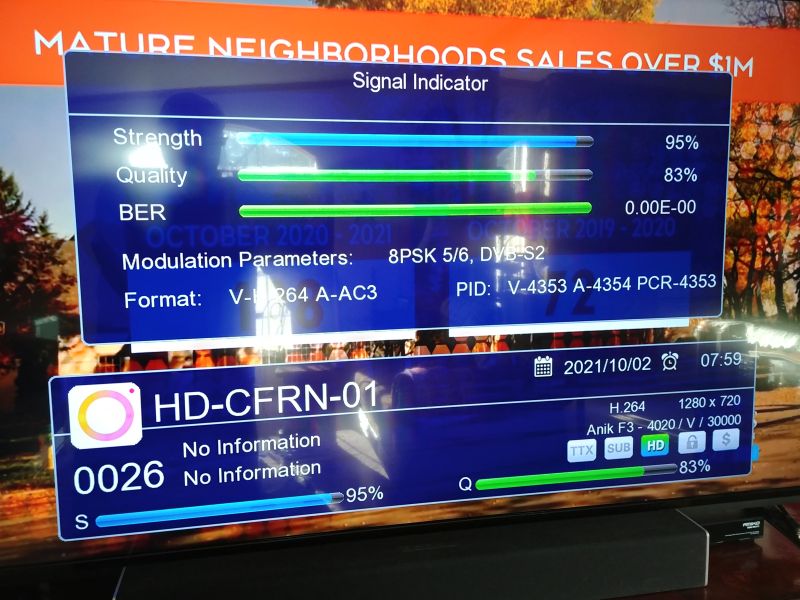

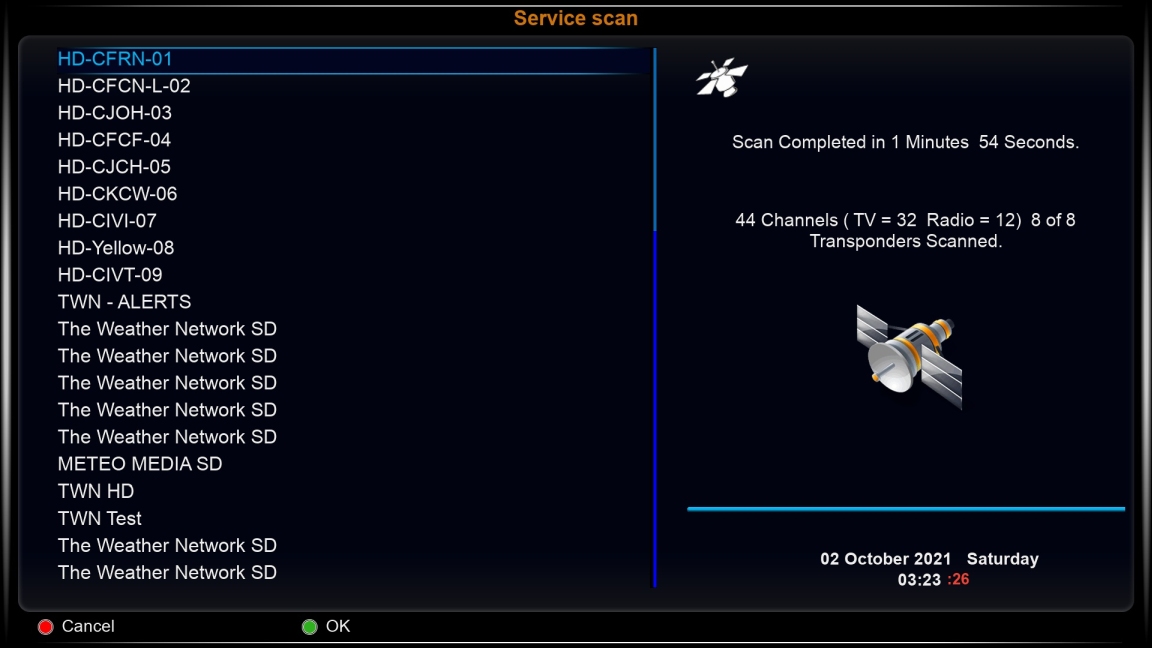

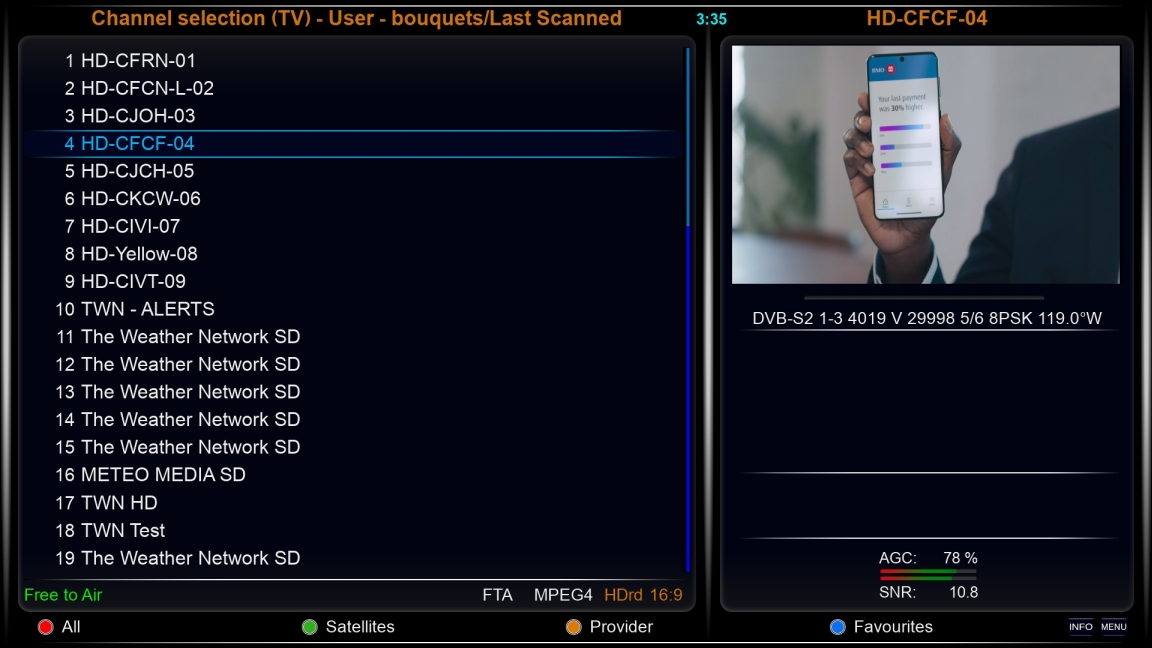

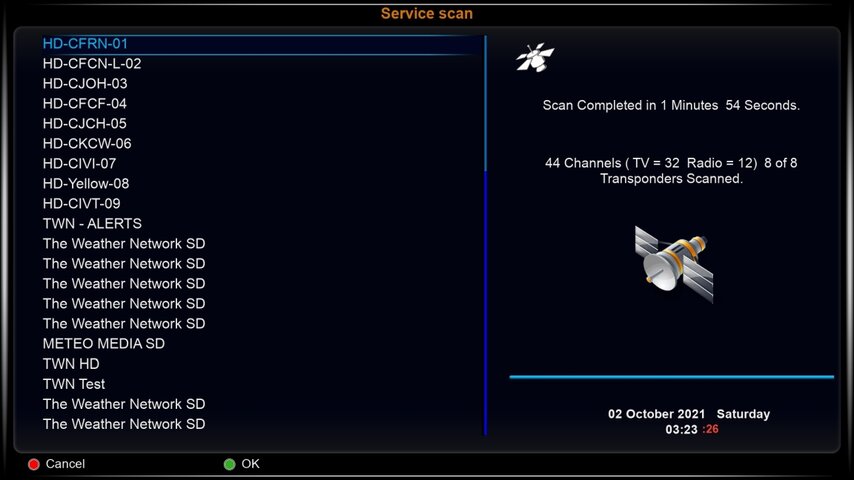

I made a few adjustments to the elevation and declination of my 7½ ft Unimesh dish yesterday evening and tuned it up using the meter I just got from Titanium. After reading this thread I scanned 119W and this is what I got on that dish.


Attachments

  • Anik-F3_scan.jpg
    157.2 KB · Views: 187
  • Anik-F3_Weather.jpg
    234 KB · Views: 188
  • Anik-F3_CFCF-04.jpg
    213.3 KB · Views: 176
Hi all,

Not only do I have a “tree leaf issue” receiving 119w, its also located at the very end of travel for my actuator arm.
I have no more wiggle room for adjustments.

John

  • Like
Reactions: c-spand

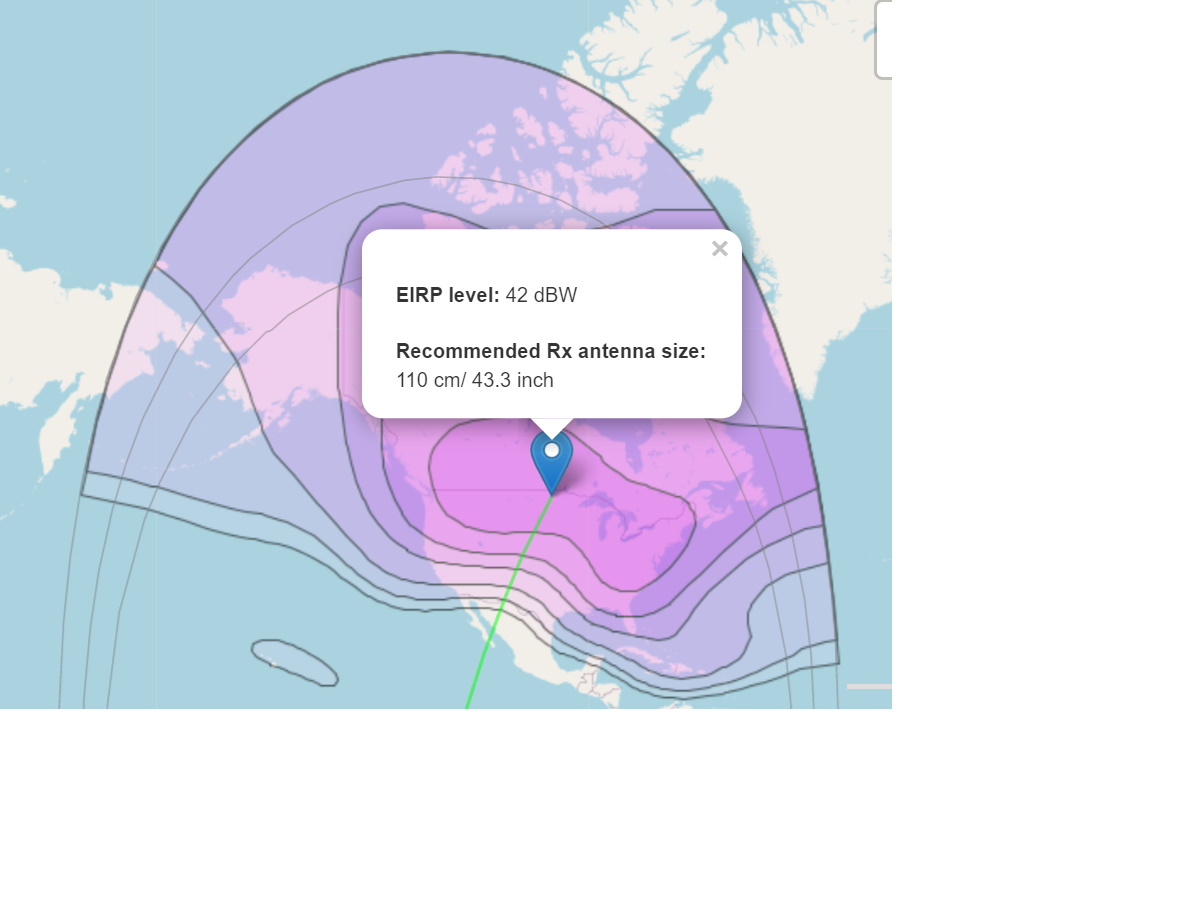

Your success or not may depend where in the footprint you are located. In Nova Scotia, where the signal is supposed to be 41 dBW, I have scanned in the APTN encrypted mux (4144 V 21000), Legislative Assembly Ontario (4116 V 3400), the Weather Network (4096 V 23800) and radio mux (4196 V 2800) using my 4-foot dish. I can't receive the CTV mux with this dish but only because it has a C/N of 9.4 dB which I will never reach with the small dish.

Anik F3 Footprint:
119W Footprint.jpg

  • Like
Reactions: c-spand
I have a clear view of 119W and I can't pick up anything other than VSE. So I don't believe others are picking up the weather network or ctv. VSE is 13 dB SNR.
I have found VSE on 107.3W (3825 V 6500), but I've never seen it on 119W last time I scanned 119W. Are you sure you're on 119W? NU & NWT Legislative Assembly is on 119W embedded in the Weather Network mux (4096 V 23800).

  • Like
Reactions: primestar31
looks like 119 is back to normal... This is what I just scanned:

< 'DVB-S2 16APSK 3760H / 30001 / 9/10 MIS 1' > Tp# 1

< 'DVB-S2 8PSK 3800H / 30001 / 3/4 MIS 1' > Tp# 2

< 'DVB-S2 8PSK 4020V / 30001 / 5/6' > Tp# 3
< (1)HD-CFRN-01 /> 1:0:1:1:3:1:9698FB4:0:0:0:
< (2)HD-CFCN-L-02 /> 1:0:1:2:3:1:9698FB4:0:0:0:
< (3)HD-CJOH-03 /> 1:0:1:3:3:1:9698FB4:0:0:0:
< (4)HD-CFCF-04 /> 1:0:1:4:3:1:9698FB4:0:0:0:
< (5)HD-CJCH-05 /> 1:0:1:5:3:1:9698FB4:0:0:0:
< (6)HD-CKCW-06 /> 1:0:1:6:3:1:9698FB4:0:0:0:
< (7)HD-CIVI-07 /> 1:0:1:7:3:1:9698FB4:0:0:0:
< (8)HD-Yellow-08 /> 1:0:1:8:3:1:9698FB4:0:0:0:
< (9)HD-CIVT-09 /> 1:0:1:9:3:1:9698FB4:0:0:0:

< 'DVB-S 4096V / 23799 / AUTO' > Tp# 4
< (10)TWN - ALERTS /> 1:0:1:D3:12D:3:9699000:0:0:0:
< (11)The Weather Network SD /> 1:0:1:F0:12D:3:9699000:0:0:0:
< (12)The Weather Network SD /> 1:0:1:F1:12D:3:9699000:0:0:0:
< (13)The Weather Network SD /> 1:0:1:F2:12D:3:9699000:0:0:0:
< (14)The Weather Network SD /> 1:0:1:F3:12D:3:9699000:0:0:0:
< (15)The Weather Network SD /> 1:0:1:F4:12D:3:9699000:0:0:0:
< (16)METEO MEDIA SD /> 1:0:1:122:12D:3:9699000:0:0:0:
< (17)TWN HD /> 1:0:1:127:12D:3:9699000:0:0:0:
< (18)TWN Test /> 1:0:1:12B:12D:3:9699000:0:0:0:
< (19)The Weather Network SD /> 1:0:1:154:12D:3:9699000:0:0:0:
< (20)The Weather Network SD /> 1:0:1:155:12D:3:9699000:0:0:0:
< (21)The Weather Network SD /> 1:0:1:156:12D:3:9699000:0:0:0:
< (22)The Weather Network SD /> 1:0:1:157:12D:3:9699000:0:0:0:
< (23)The Weather Network SD /> 1:0:1:158:12D:3:9699000:0:0:0:
< (24)OS Download /> 1:0:1:1BC:12D:3:9699000:0:0:0:
< (25)NU & NWT LA /> 1:0:1:1F4:12D:3:9699000:0:0:0:
< (26)Vue & Voix /> 1:0:1:1FE:12D:3:9699000:0:0:0:
< (27)RFI /> 1:0:1:208:12D:3:9699000:0:0:0:

< 'DVB-S2 QPSK 4116V / 3399 / AUTO' > Tp# 5

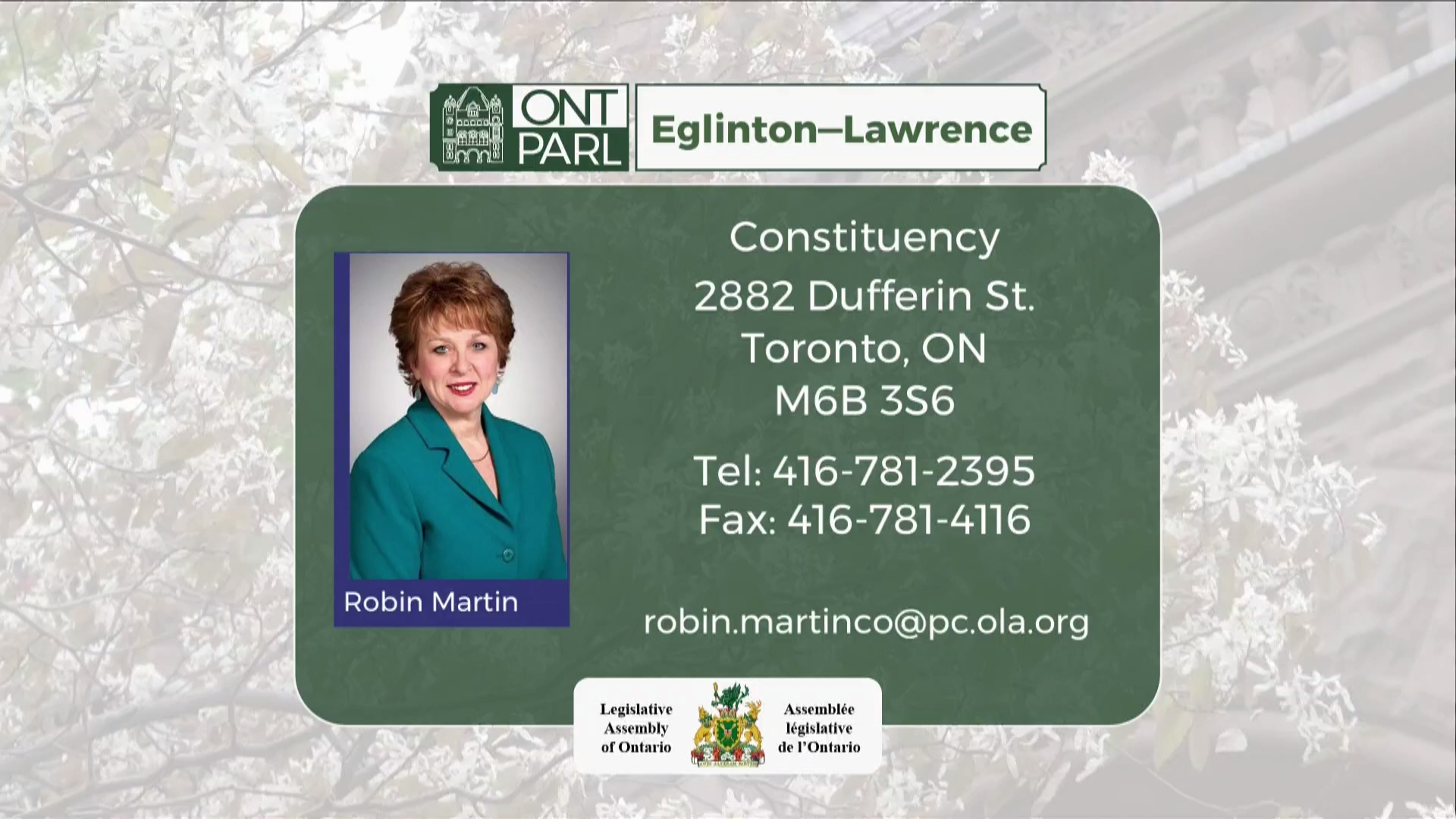

< (28)OntParl /> 1:0:1:1:1:1:9699014:0:0:0:

< 'DVB-S 4127V / 7500 / AUTO' > Tp# 6
< (29)4127V SID 0x01 /> 1:0:1:1:1:0:969901F:0:0:0:

< 'DVB-S 4144V / 21002 / AUTO' > Tp# 7
< (30)4144V SID 0x385 /> 1:0:1:385:47C:0:9699030:0:0:0:
< (31)4144V SID 0x386 /> 1:0:1:386:47C:0:9699030:0:0:0:
< (32)4144V SID 0x387 /> 1:0:1:387:47C:0:9699030:0:0:0:
< (33)4144V SID 0x38a (Radio #1) /> 1:0:2:38A:47C:0:9699030:0:0:0:

< 'DVB-S2 8PSK 4181V / 6538 / 5/6' > Tp# 8
< (34)DVIDS SD 1 /> 1:0:1:1:12D:1839:9699055:0:0:0:
< (35)DVIDS SD 2 /> 1:0:1:2:12D:1839:9699055:0:0:0:
< (36)DVIDS HD /> 1:0:1:8:12D:1839:9699055:0:0:0:

< 'DVB-S2 QPSK 4196V / 2800 / 3/4' > Tp# 9
< (37)Radio Nueva Vida (Radio #2) /> 1:0:2:1:1:1:9699064:0:0:0:
< (38)K-LOVE - Rocklin (Radio #3) /> 1:0:2:2:1:1:9699064:0:0:0:
< (39)Air1 - Rocklin (Radio #4) /> 1:0:2:3:1:1:9699064:0:0:0:
< (40)Virtual Channel 3 (News 3) (Radio #5) /> 1:0:2:5:1:1:9699064:0:0:0:
< (41)Virtual Channel 4 (News 4) (Radio #6) /> 1:0:2:6:1:1:9699064:0:0:0:
< (42)Virtual Channel 2 (Aux Room 2) (Radio #7) /> 1:0:2:7:1:1:9699064:0:0:0:
< (43)Virtual Channel 1 (Aux Room 1) (Radio #8) /> 1:0:2:8:1:1:9699064:0:0:0:
< (44)K-LOVE Christmas (Radio #9) /> 1:0:2:A:1:1:9699064:0:0:0:
< (45)K-LOVE 90s (Radio #10) /> 1:0:2:D:1:1:9699064:0:0:0:
< (46)BOOST Radio (Radio #11) /> 1:0:2:E:1:1:9699064:0:0:0:
< (47)K-LOVE 2000s (Radio #12) /> 1:0:2:15:1:1:9699064:0:0:0:<

Blind Scan Completed in 2 Minutes 24 Seconds.
47 Channels ( TV = 35 Radio = 12) 9 of 9 Transponders Scanned.

(getting 14.6 dB on the CTV mux with a 10' dish)

and on 107W:
< 'DVB-S2 8PSK 3812V / 1937 / 5/6' > Tp# 1
< (1)VSE 1 /> 1:0:1:1:1:1:9DE8EE4:0:0:0:

< 'DVB-S 3824V / 6500 / AUTO' > Tp# 2
< (2)VSE 1 /> 1:0:1:1:1:1:9DE8EF0:0:0:0:

< 'DVB-S2 8PSK 4111H / 15000 / 5/6' > Tp# 3
< (3)TCM HD /> 1:0:1:A:3:1:9DE100F:0:0:0:
< (4)TOON E HD /> 1:0:1:B:3:1:9DE100F:0:0:0:
< (5)CBS /> 1:0:1:C:3:1:9DE100F:0:0:0:
< (6)HGTV /> 1:0:1:D:3:1:9DE100F:0:0:0:
< (7)Food /> 1:0:1:E:3:1:9DE100F:0:0:0:
< (8)Travel /> 1:0:1:F:3:1:9DE100F:0:0:0:
< (9)Discovery /> 1:0:1:10:3:1:9DE100F:0:0:0:
< (10)Nick /> 1:0:1:11:3:1:9DE100F:0:0:0:
< (11)BBC /> 1:0:1:13:3:1:9DE100F:0:0:0:
< (12)ESPN U HD /> 1:0:1:15:3:1:9DE100F:0:0:0:
< (13)ESPN HD /> 1:0:1:16:3:1:9DE100F:0:0:0:
< (14)ESPN 2 HD /> 1:0:1:17:3:1:9DE100F:0:0:0:
< (15)ESPN SEC HD /> 1:0:1:18:3:1:9DE100F:0:0:0:
< (16)CNN HD /> 1:0:1:19:3:1:9DE100F:0:0:0:
< (17)CruiseSat Live /> 1:0:1:1B:3:1:9DE100F:0:0:0:<

  • Like
Reactions: c-spand
looks like 119 is back to normal... This is what I just scanned:

< 'DVB-S2 16APSK 3760H / 30001 / 9/10 MIS 1' > Tp# 1

< 'DVB-S2 8PSK 3800H / 30001 / 3/4 MIS 1' > Tp# 2

< 'DVB-S2 8PSK 4020V / 30001 / 5/6' > Tp# 3
< (1)HD-CFRN-01 /> 1:0:1:1:3:1:9698FB4:0:0:0:
< (2)HD-CFCN-L-02 /> 1:0:1:2:3:1:9698FB4:0:0:0:
< (3)HD-CJOH-03 /> 1:0:1:3:3:1:9698FB4:0:0:0:
< (4)HD-CFCF-04 /> 1:0:1:4:3:1:9698FB4:0:0:0:
< (5)HD-CJCH-05 /> 1:0:1:5:3:1:9698FB4:0:0:0:
< (6)HD-CKCW-06 /> 1:0:1:6:3:1:9698FB4:0:0:0:
< (7)HD-CIVI-07 /> 1:0:1:7:3:1:9698FB4:0:0:0:
< (8)HD-Yellow-08 /> 1:0:1:8:3:1:9698FB4:0:0:0:
< (9)HD-CIVT-09 /> 1:0:1:9:3:1:9698FB4:0:0:0:

< 'DVB-S 4096V / 23799 / AUTO' > Tp# 4
< (10)TWN - ALERTS /> 1:0:1:D3:12D:3:9699000:0:0:0:
< (11)The Weather Network SD /> 1:0:1:F0:12D:3:9699000:0:0:0:
< (12)The Weather Network SD /> 1:0:1:F1:12D:3:9699000:0:0:0:
< (13)The Weather Network SD /> 1:0:1:F2:12D:3:9699000:0:0:0:
< (14)The Weather Network SD /> 1:0:1:F3:12D:3:9699000:0:0:0:
< (15)The Weather Network SD /> 1:0:1:F4:12D:3:9699000:0:0:0:
< (16)METEO MEDIA SD /> 1:0:1:122:12D:3:9699000:0:0:0:
< (17)TWN HD /> 1:0:1:127:12D:3:9699000:0:0:0:
< (18)TWN Test /> 1:0:1:12B:12D:3:9699000:0:0:0:
< (19)The Weather Network SD /> 1:0:1:154:12D:3:9699000:0:0:0:
< (20)The Weather Network SD /> 1:0:1:155:12D:3:9699000:0:0:0:
< (21)The Weather Network SD /> 1:0:1:156:12D:3:9699000:0:0:0:
< (22)The Weather Network SD /> 1:0:1:157:12D:3:9699000:0:0:0:
< (23)The Weather Network SD /> 1:0:1:158:12D:3:9699000:0:0:0:
< (24)OS Download /> 1:0:1:1BC:12D:3:9699000:0:0:0:
< (25)NU & NWT LA /> 1:0:1:1F4:12D:3:9699000:0:0:0:
< (26)Vue & Voix /> 1:0:1:1FE:12D:3:9699000:0:0:0:
< (27)RFI /> 1:0:1:208:12D:3:9699000:0:0:0:

< 'DVB-S2 QPSK 4116V / 3399 / AUTO' > Tp# 5
< (28)OntParl /> 1:0:1:1:1:1:9699014:0:0:0:

< 'DVB-S 4127V / 7500 / AUTO' > Tp# 6
< (29)4127V SID 0x01 /> 1:0:1:1:1:0:969901F:0:0:0:

< 'DVB-S 4144V / 21002 / AUTO' > Tp# 7
< (30)4144V SID 0x385 /> 1:0:1:385:47C:0:9699030:0:0:0:
< (31)4144V SID 0x386 /> 1:0:1:386:47C:0:9699030:0:0:0:
< (32)4144V SID 0x387 /> 1:0:1:387:47C:0:9699030:0:0:0:
< (33)4144V SID 0x38a (Radio #1) /> 1:0:2:38A:47C:0:9699030:0:0:0:

< 'DVB-S2 8PSK 4181V / 6538 / 5/6' > Tp# 8
< (34)DVIDS SD 1 /> 1:0:1:1:12D:1839:9699055:0:0:0:
< (35)DVIDS SD 2 /> 1:0:1:2:12D:1839:9699055:0:0:0:
< (36)DVIDS HD /> 1:0:1:8:12D:1839:9699055:0:0:0:

< 'DVB-S2 QPSK 4196V / 2800 / 3/4' > Tp# 9
< (37)Radio Nueva Vida (Radio #2) /> 1:0:2:1:1:1:9699064:0:0:0:
< (38)K-LOVE - Rocklin (Radio #3) /> 1:0:2:2:1:1:9699064:0:0:0:
< (39)Air1 - Rocklin (Radio #4) /> 1:0:2:3:1:1:9699064:0:0:0:
< (40)Virtual Channel 3 (News 3) (Radio #5) /> 1:0:2:5:1:1:9699064:0:0:0:
< (41)Virtual Channel 4 (News 4) (Radio #6) /> 1:0:2:6:1:1:9699064:0:0:0:
< (42)Virtual Channel 2 (Aux Room 2) (Radio #7) /> 1:0:2:7:1:1:9699064:0:0:0:
< (43)Virtual Channel 1 (Aux Room 1) (Radio #8) /> 1:0:2:8:1:1:9699064:0:0:0:
< (44)K-LOVE Christmas (Radio #9) /> 1:0:2:A:1:1:9699064:0:0:0:
< (45)K-LOVE 90s (Radio #10) /> 1:0:2:D:1:1:9699064:0:0:0:
< (46)BOOST Radio (Radio #11) /> 1:0:2:E:1:1:9699064:0:0:0:
< (47)K-LOVE 2000s (Radio #12) /> 1:0:2:15:1:1:9699064:0:0:0:<

Blind Scan Completed in 2 Minutes 24 Seconds.
47 Channels ( TV = 35 Radio = 12) 9 of 9 Transponders Scanned.

(getting 14.6 dB on the CTV mux with a 10' dish)

and on 107W:
< 'DVB-S2 8PSK 3812V / 1937 / 5/6' > Tp# 1
< (1)VSE 1 /> 1:0:1:1:1:1:9DE8EE4:0:0:0:

< 'DVB-S 3824V / 6500 / AUTO' > Tp# 2
< (2)VSE 1 /> 1:0:1:1:1:1:9DE8EF0:0:0:0:

< 'DVB-S2 8PSK 4111H / 15000 / 5/6' > Tp# 3
< (3)TCM HD /> 1:0:1:A:3:1:9DE100F:0:0:0:
< (4)TOON E HD /> 1:0:1:B:3:1:9DE100F:0:0:0:
< (5)CBS /> 1:0:1:C:3:1:9DE100F:0:0:0:
< (6)HGTV /> 1:0:1:D:3:1:9DE100F:0:0:0:
< (7)Food /> 1:0:1:E:3:1:9DE100F:0:0:0:
< (8)Travel /> 1:0:1:F:3:1:9DE100F:0:0:0:
< (9)Discovery /> 1:0:1:10:3:1:9DE100F:0:0:0:
< (10)Nick /> 1:0:1:11:3:1:9DE100F:0:0:0:
< (11)BBC /> 1:0:1:13:3:1:9DE100F:0:0:0:
< (12)ESPN U HD /> 1:0:1:15:3:1:9DE100F:0:0:0:
< (13)ESPN HD /> 1:0:1:16:3:1:9DE100F:0:0:0:
< (14)ESPN 2 HD /> 1:0:1:17:3:1:9DE100F:0:0:0:
< (15)ESPN SEC HD /> 1:0:1:18:3:1:9DE100F:0:0:0:
< (16)CNN HD /> 1:0:1:19:3:1:9DE100F:0:0:0:
< (17)CruiseSat Live /> 1:0:1:1B:3:1:9DE100F:0:0:0:<
brct at what percentage are you getting each transponder? Thank you for the info.
