I would like to know if anyone has a full set of installation guidelines including wiring diagrams for the hopper and joey systems.
What I really need is a complete home technical system setup guide, from basic to advanced installation techniques without going as far as a commercial installation.
Especially something that will cover bi-directional cabling, taps, and correct switch use/placement on the systems
I have searched for this information and can only come up with pre-hopper / joey

I am well versed with the basic Dish Network systems used here in Mexico, using two separate dishes to capture 119 and 129 satellites
but I am ready for an update to the newest technology
Can anyone "point" me in the right direction?



[navychop]

OK, here's a start:



[navychop]

Also see the below.

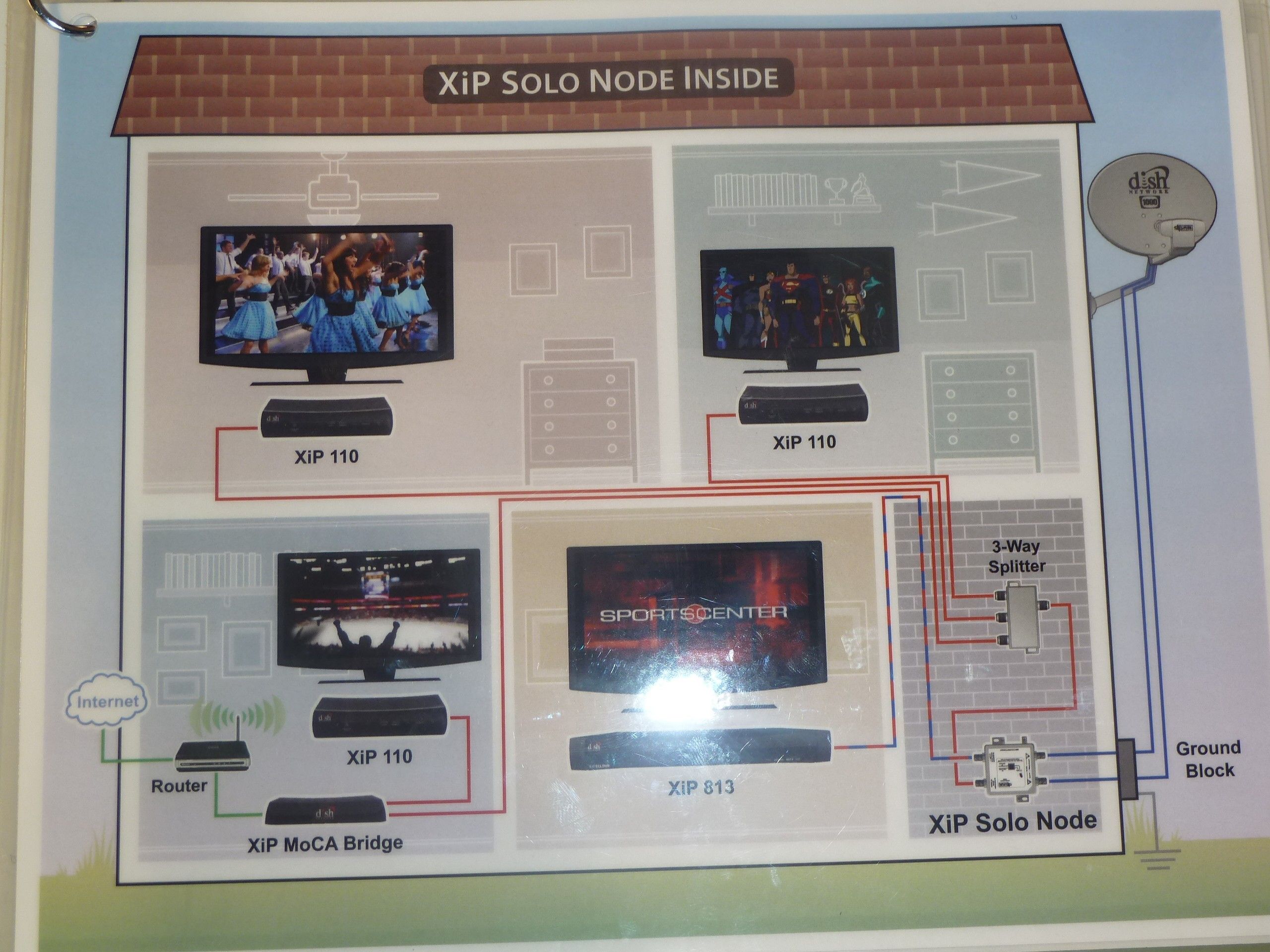

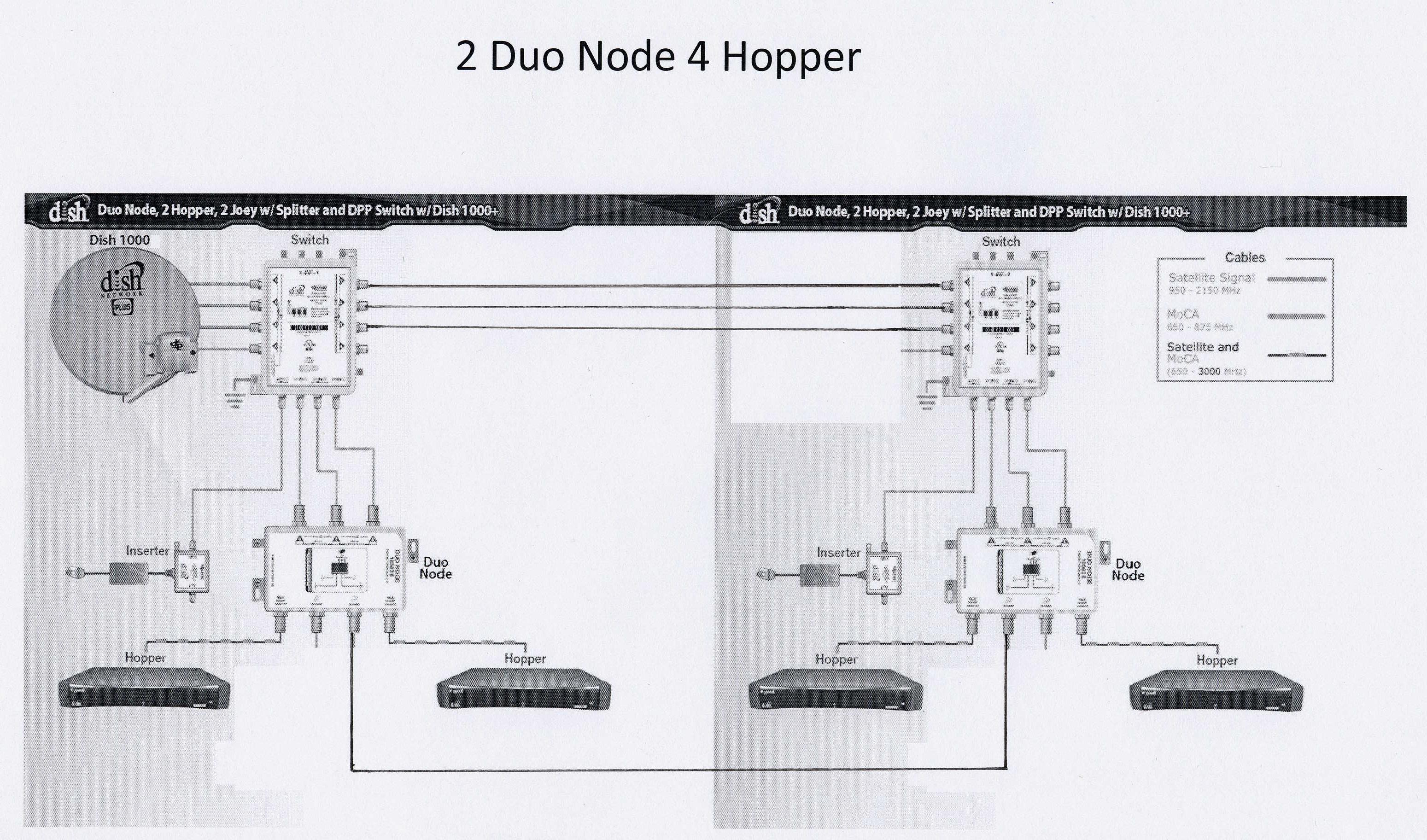

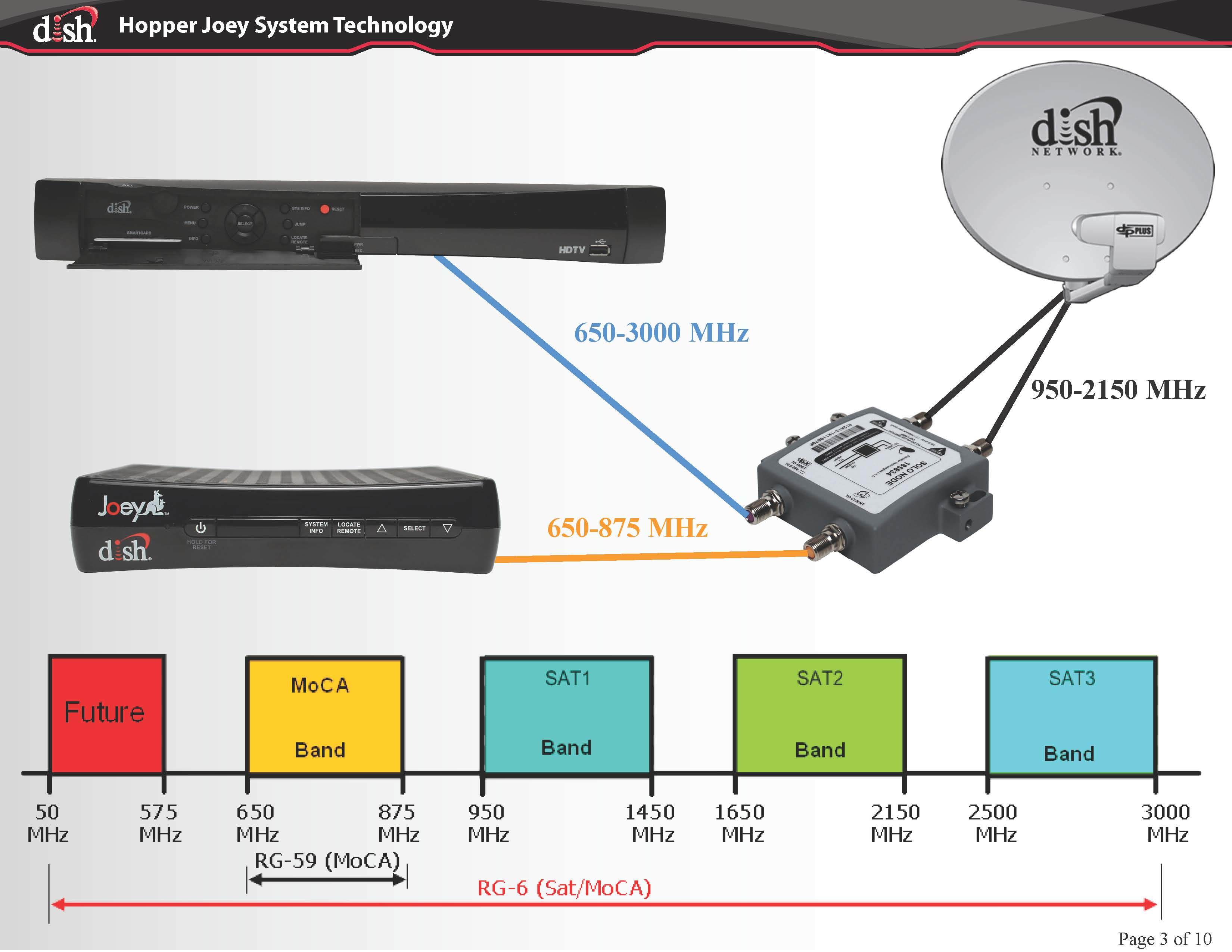

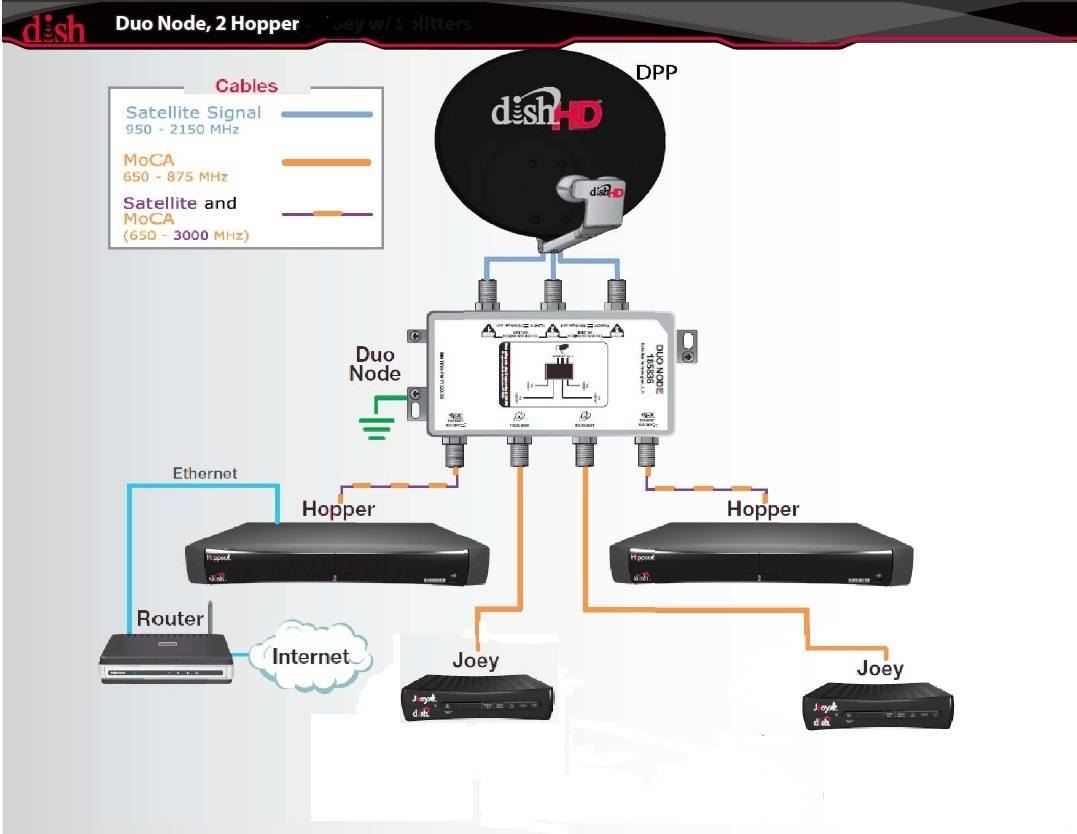

Actually, go look at the first two attachments in the first post in this thread. And go here.



[RT-Cat]

Expanded version:



[3HaloODST]

http://www.satelliteguys.us/threads/323521-protection-plan?p=3307180#post3307180
