Need help setting KTI elevation and zenith adjustments

Status
Not open for further replies.

Alan Rovner

Thread Starter
SatelliteGuys Pro
Jan 8, 2013
179
104
Vancouver, WA
Hi guys, I have an old KTI dish I'm trying to restore and get back on the air. The documentation is very limited and has really tiny diagrams of where to adjust elevation and declination offset/zenith. Please look at the attached photos and let me know if this is where to measure angles. The elevation picture shows my angle meter on top of the mount, and I believe the other picture is showing the zenith adjustment down at the bottom of the dish. Thanks so much for any suggestions.

Alan, K7AR

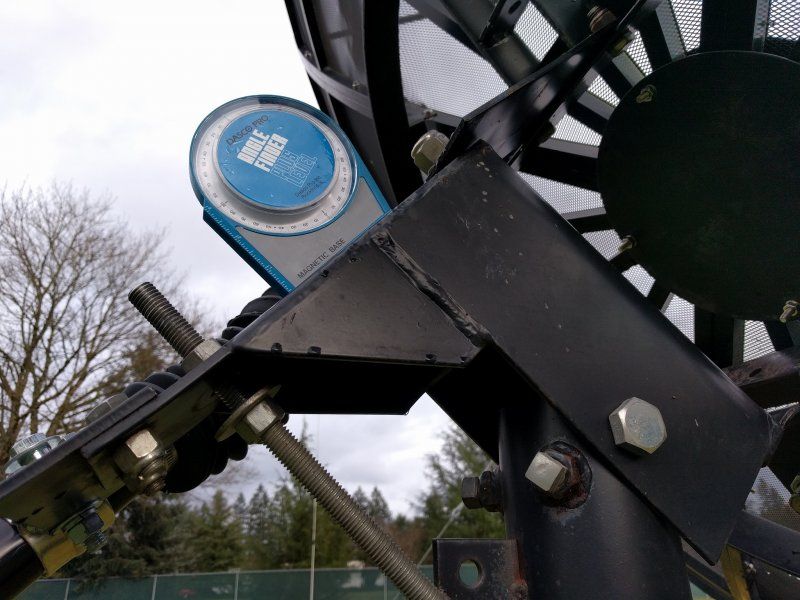

KTI Elevation.jpg

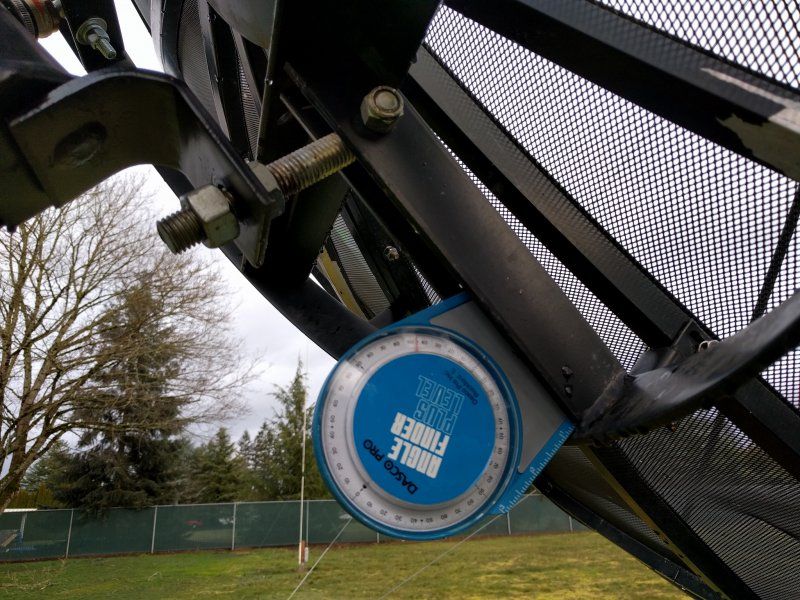

KTI Dec Offset.jpg


Shicks4

SatelliteGuys Pro
Aug 29, 2015
476
259
Kansas
Id say where you are measuring on the bottom photo wouls be incorrect unless that spar is not curved at all from the center of the dish. I usually use my digital inclinometer in the center portion of the dish on the back side. But its small enough to fit in there. Fatair always said take a 2x4 and lay it across the front edges of the dish and measure that way. I actually made a 2x4 that had a scarp piece nailed on the end so i could hang it on the front of my dish but figured out my inclionmeter fit on the back of the dish and never used it. However where you are measuring in the top photo is where i measure my dish. Wherever you do measure make sure you write it down and always measure from those spots when you tune up your dish.

  • Like
Reactions: hank123

Shicks4

SatelliteGuys Pro
Aug 29, 2015
476
259
Kansas
Actually i just looked at my measurements and i measured and recorded both places on the outside like you have yours in the top pic and 90* over between the dish and the mount.
