What signals can you "see" at 61.5?

[Smith P.]

If you could get spectrum from those odd tpns. I'd like to see an evidence of SB, not crosstalk from adjusted tpns or different sats.



[Smith P.]

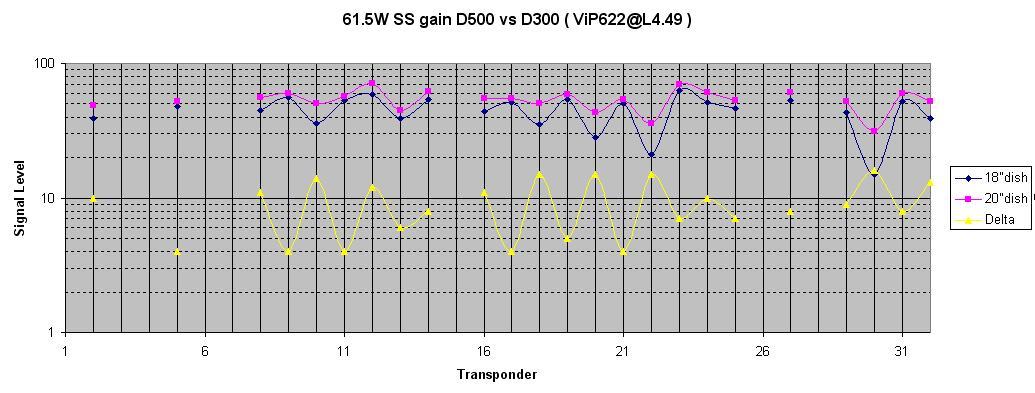

There is a result of using different dishes on same setup/location:
ViP622@L4.49 with Sony 18" 18SD2 and Dish500 DP LNBF:
it show better gain for even tpns (11..15) then for odd tpns (4...8). Could be advantage of using DP type of LNBF.

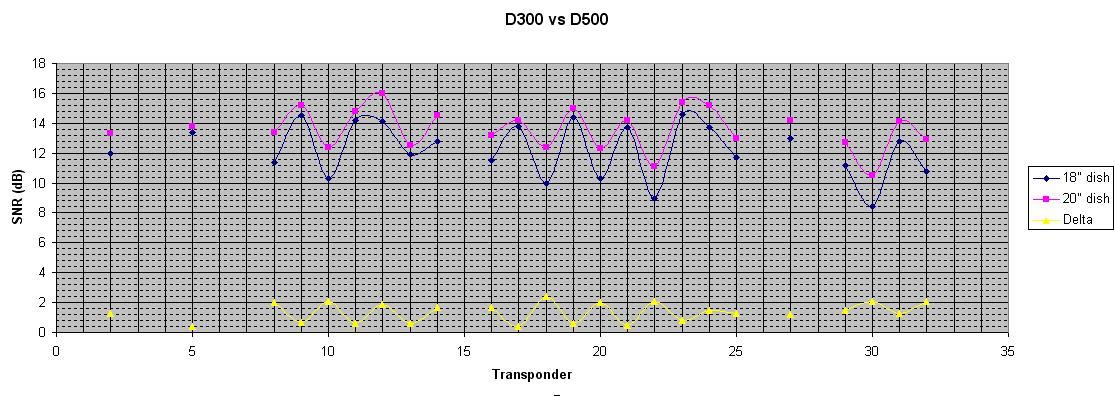

Second picture show measures of SNR by DVB-S card using same setup.



[Smith P.]

Very interesting! Looks like the beams are kicking in quite a few places. When I get back I will definitelt be cross referencing this with some of the maps we have.

Those that are missing odd transponders from 1-23 keep an eye on those and report back any changes.

ptech, I would check again as it is impossible to have a lock on all 32 TP's at 61.5 at this time.

Keep the area reports rolling in!

No, Digi - without Spectrum Analyzer all the numbers on tpns 1,3,5,7,15 are wrong - it's just 'crosstalk' from from switches/LNBFs.



[DWS44]

Here's another southeast perspective for y'all:

3-8-2008 9:45 pm eastern
29732
61.5 via Dish 500
VIP622 L449

01 - 25 (wrong sat)
02 - 61
03 - 27
04 - NL
05 - 55
06 - NL
07 - 57 (name not acquired)
08 - 67
09 - 59
10 - 74
11 - 58
12 - 80
13 - 45
14 - 80
15 - NL
16 - 66
17 - 54
18 - 72
19 - 57
20 - 51
21 - 54
22 - 56
23 - 67
24 - 64
25 - 72
26 - NL
27 - 65
28 - NL
29 - 46
30 - 47
31 - 66
32 - 61



[Smith P.]

3-8-2008 12:45 pm pacific
94085
61.5 Dish 500
VIP622 L4.49

01 -
02 - 49
03 -
04 -
05 - 52
06 -
07 -
08 - 56
09 - 60
10 - 50
11 - 57
12 - 71
13 - 45
14 - 62
15 -
16 - 55
17 - 55
18 - 50
19 - 59
20 - 43
21 - 54
22 - 36
23 - 70
24 - 61
25 - 53
26 -
27 - 61
28 -
29 - 52
30 - 31
31 - 60
32 - 52

(Interesting - most of odd tpns have same level as in SC and some of them higher (!) like tp29 )



[TRSmudge]

08MAR2008 21:15 Central
Area: 54501, Wisconsin
61.5 Dish Type: 500
Receiver: ViP211 L4.37

01 - NL
02 - 52
03 - 52 NNA
04 - NL
05 - 52
06 - 63 NNA
07 - 59 NNA
08 - 62
09 - 59
10 - 57
11 - 56
12 - 78
13 - 42
14 - 68
15 - 53 NNA
16 - 62
17 - 53
18 - 57
19 - 59
20 - 48
21 - 53
22 - 41
23 - 68
24 - 59
25 - 61
26 - NL
27 - 59
28 - 32 NNA
29 - 59
30 - 34
31 - 58
32 - 57



[charlesrshell]

9 Mar 08 - 6:15 AM CST
O'Fallon, IL 62269
61.5 - Dish 500
VIP722 - L4.49

NL = Not Locked

01 - NL Name Not Acquired
02 - 56
03 - 55 Name Not Acquired
04 - NL Name Not Acquired
05 - 56
06 - 70 Name Not Acquired
07 - 62 Name Not Acquired
08 - 70
09 - 62
10 - 68
11 - 61
12 - 84
13 - 49
14 - 75
15 - 57 Name Not Acquired
16 - 69
17 - 59
18 - 68
19 - 62
20 - 53
21 - 57
22 - 52
23 - 71
24 - 62
25 - 71
26 - NL Name Not Acquired
27 - 73
28 - NL Name Not Acquired
29 - 68
30 - 44
31 - 73
32 - 64



[Smith P.]

Folks, we wouldn't see changes on SB tpns - engineers' activity during Sat & Sun is null.

Lets check starting Monday during business hours.



[digiblur]

No, Digi - without Spectrum Analyzer all the numbers on tpns 1,3,5,7,15 are wrong - it's just 'crosstalk' from from switches/LNBFs.

We've had one person saying spotbeam so far.



[Hemi 6.1]

We've had one person saying spotbeam so far.

Should we keep checking DIGI ? Are they making changes as we speak? Or have they already made changes. I can check again if you wish.



[Smith P.]

We've had one person saying spotbeam so far.

You missed that point - it was a leak from 110W SB.



[digiblur]

Should we keep checking DIGI ? Are they making changes as we speak? Or have they already made changes. I can check again if you wish.

I wouldn't keep checking except for maybe every 2 days or so.



[digiblur]

You missed that point - it was a leak from 110W SB.

I didn't see where the poster stated it said 110 spotbeam.



[Hemi 6.1]

I wouldn't keep checking except for maybe every 2 days or so.

I checked,and its no different then when I last posted anyway!



[brownover]

You missed that point - it was a leak from 110W SB.

It said 61.5 Spotbeam. That I am certain of because I have looked several times.



[TheKrell]

Brownover and myself are both seeing "spotbeam" on transponder 3. Back when this thread began, I posted results from my 625 that showed wrong satellite (119) and no spotbeam. Then the signal stength went to 1/2, but it started showing locked on 61.5 and spotbeam. Having just checked again an hour ago, it's back up to the 60s and still shows "locked - 61.5W" and above the "3" a "spotbeam". My 311 also agrees on these points.



[ncted]

I just checked my 625. It changed to Spotbeam when I selected TP 3. It was locked on 61.5 and signal strength was 91. I cannot confirm on my 722 as my wife is watching TV.

Zip: 27713 - Durham, NC

Ted



[digiblur]

Just to be sure, if you can, do P Smith a favor and hang a piece of foil on the face of the 110/119 LNB and check your signals on 61.5. That way you'll know for sure the spotbeam is coming from 61.5.



[Smith P.]

Would be interesting to see a screenshot from that ppl. BUT only if the receiver connected directly to 61.5W dish without switch.



[ncted]

Just to be sure, if you can, do P Smith a favor and hang a piece of foil on the face of the 110/119 LNB and check your signals on 61.5. That way you'll know for sure the spotbeam is coming from 61.5.

Sorry, but I don't have a ladder long enough to get on my roof.

Ted
