10 Foot Mesh - What Is It?

Status
Please reply by conversation.

Horsepower

Thread Starter
SatelliteGuys Pro
Dec 11, 2017
542
221
Richmond, VA

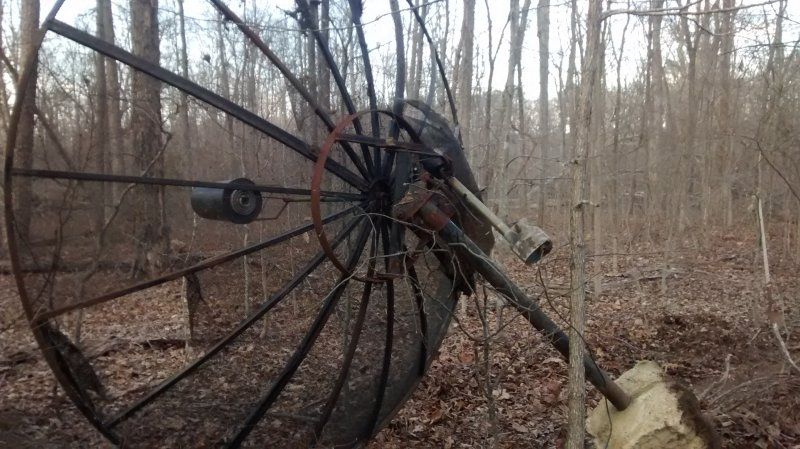

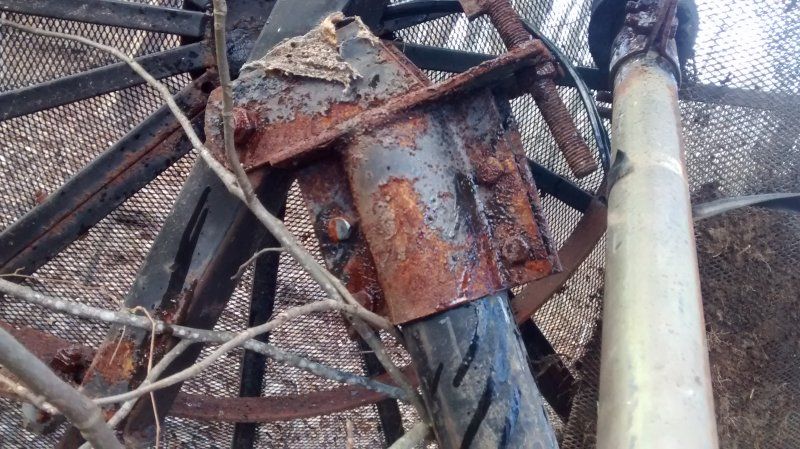

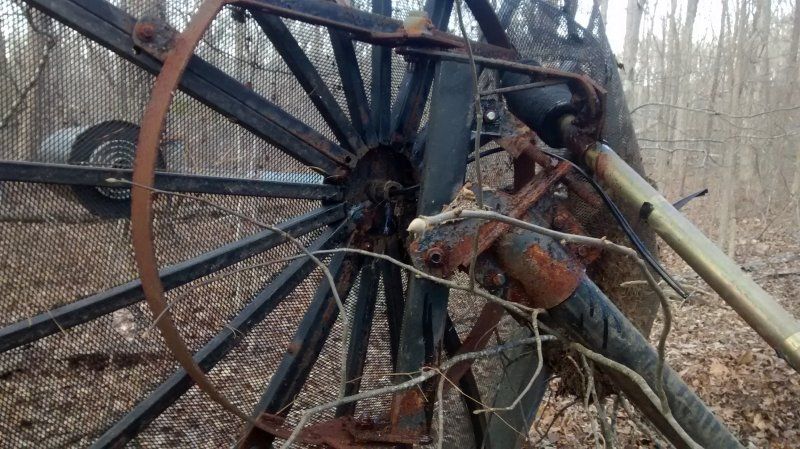

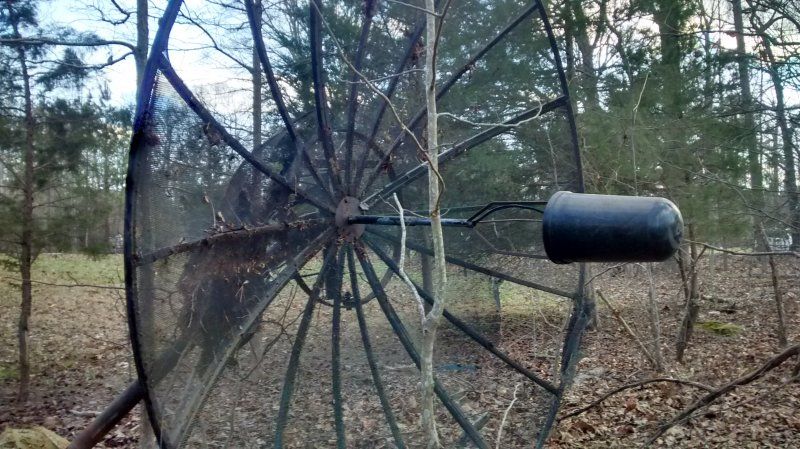

Anybody know what brand etc. this is. Just dug it out of woods today. Taking it home soon.

Solid, but some of the mesh will need to be replaced. Can I just buy the metal (I call it "expanded metal") and make my own?

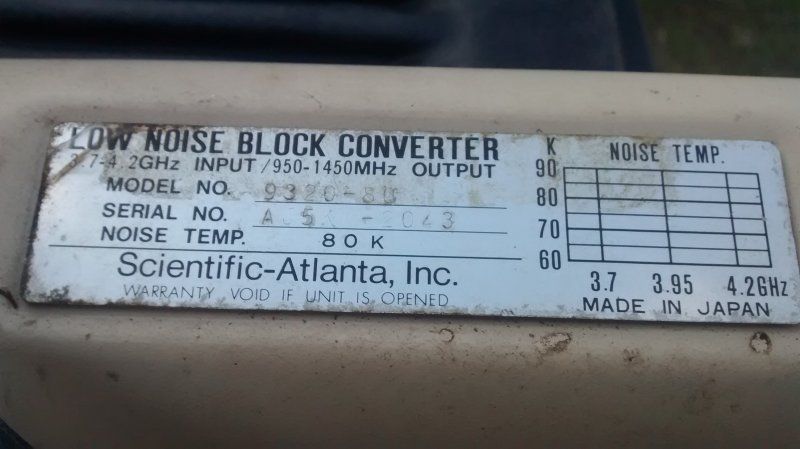

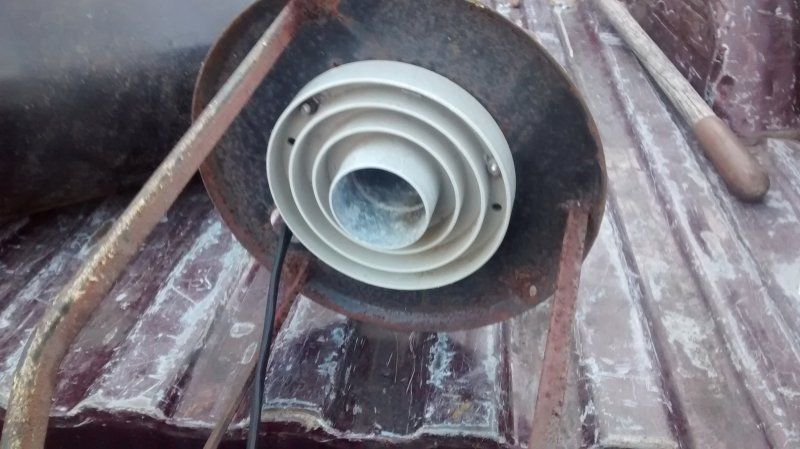

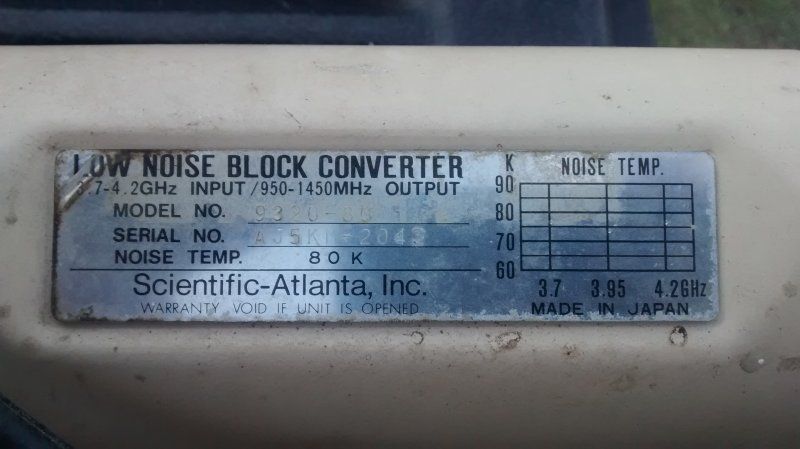

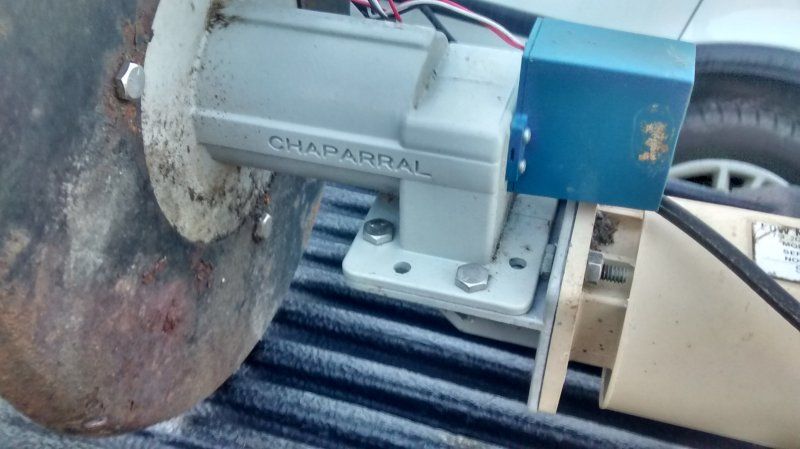

Anybody know anything about this LNB?

Thanks for all responses.
IMG_20180314_175822114.jpg IMG_20180314_175832573.jpg IMG_20180314_175843539.jpg IMG_20180314_175925704_HDR.jpg IMG_20180314_184643119.jpg IMG_20180314_184650439.jpg IMG_20180314_184658807_HDR.jpg IMG_20180314_184831565.jpg


Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,004
720
southeast
Don't know about the dish but that's a VonWeise actuator on that thing and it's likely worth it's weight in gold if it's not horked up from the exposure to the elements! I've got 3 of those up and running now and they are a good piece for sure!

The rest of it......... Well, I guess it's OK if you need a project to work on! :eek

  • Like
Reactions: Horsepower

Horsepower

Thread Starter
SatelliteGuys Pro
Dec 11, 2017
542
221
Richmond, VA
Don't know about the dish but that's a VonWeise actuator on that thing and it's likely worth it's weight in gold if it's not horked up from the exposure to the elements! I've got 3 of those up and running now and they are a good piece for sure!

The rest of it......... Well, I guess it's OK if you need a project to work on! :eek
The actuator still has the boot etc. intact. They said it was working, which really means nothing 20 years later. I'll have to hook it up to find out.

The only thing I'm worried about is either finding panels, or being able to make some out of that type mesh.


Brct203

SatelliteGuys Pro
Dec 24, 2016
1,065
1,050
Connecticut
As for the LNB - it's an 80 Kelvin model. It might still work but will not be good with weak signals. Its best place is on the shelf in a museum. The least expensive alternative would be to replace the whole feed assembly with a voltage-controlled LNBF such as the Titanium C1-PLL or one of its variants. Alternatively you could get a lower noise LNB (15 to 20 K) and reuse that feedhorn but then you need to be able to control the servo motor to change between H and V.

about the actuator (I agree with Lone Gunman, that's a great one), try powering it with a low-voltage source (I use an 18V cordless drill battery) to test it. This way if it's seized by rust, at least you'll reduce the risk of breaking the gears. But regardless you might want to take it appart and clean and lube the screw. Take plenty of notes and photos as you are taking it apart, so that you know how to reassemble it.

I have no idea about where to find some mesh but it's hard to tell from the photos how much of it is missing. It might be worth tucking the loose mesh back in place and trying the dish despite it having a few holes before you spend too much time and $ on trying to find replacement mesh. If you decide to look for some mesh and find some, please post the info on this forum. Many here will thank you.


Horsepower

Thread Starter
SatelliteGuys Pro
Dec 11, 2017
542
221
Richmond, VA
Thanks guys. The way I see it, about half of them should be replaced from limbs falling off trees that grew up around the thing. Making the mesh panels should be no problem for me. Getting the curvature correct will be the challenge. I just need to find the material.


FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
4,267
2,204
Central Pennsylvania
Thanks guys. The way I see it, about half of them should be replaced from limbs falling off trees that grew up around the thing. Making the mesh panels should be no problem for me. Getting the curvature correct will be the challenge. I just need to find the material.
Sometimes the mesh can be repaired if it's all there but just torn. Here is a thread where I fixed up an 8' mesh dish... :)

8' dish finally repaired

Last edited:
  • Like
Reactions: Horsepower

Horsepower

Thread Starter
SatelliteGuys Pro
Dec 11, 2017
542
221
Richmond, VA

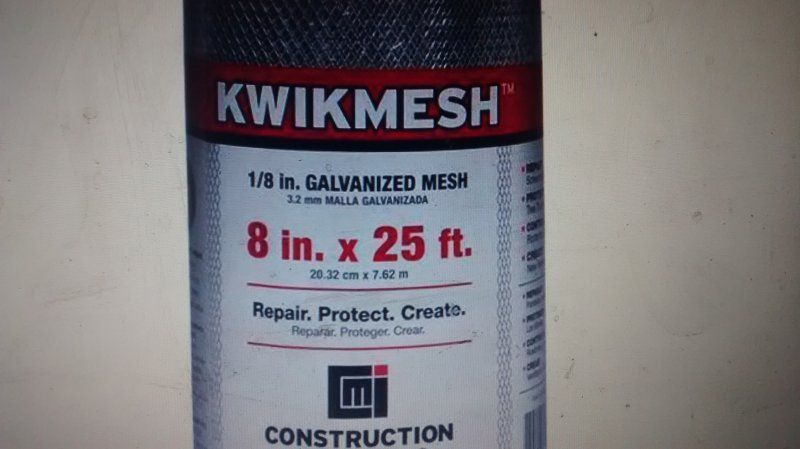

After doing a fair amount of shopping/research. I think this stuff is going to be the closest to matching the mesh in the dish.
