OTHER Doubts about Inclinometer

[Juan-Argentina]

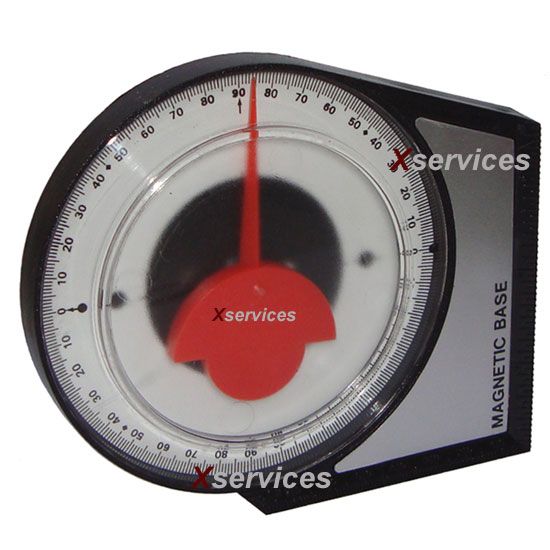

Hi you all, I had a few FTA dishes at home since a few years, nevertheless I always had a doubt about what is the correct position we have to put the inclinometer I have, like the picture, according for Offset Ku Band or Focal point in C Band.
There are lots of tutorial on the internet but it seem they aren´t completely agree.
Could someone please tell me a good tutorial on the net. I would appreciate it very much. Greets from Argentina.



[shopman]

One of the best resources for setting up a dish:
https://web.archive.org/web/2007112...bit.org:80/sizepgs/tuningp4.html#anchor804916



[FTA4PA]

One of the best resources for setting up a dish:
https://web.archive.org/web/2007112...bit.org:80/sizepgs/tuningp4.html#anchor804916

Yes, very good site. I used it myself when I first set up my c band dish a few years back. Had the actual site bookmarked then had to find it again on the Wayback Machine later.
