Guys I have been trying to get my cband dish peaked up. On some satellites iam getting the horizontal transponders and not the vertical ones. This is my dish setup:

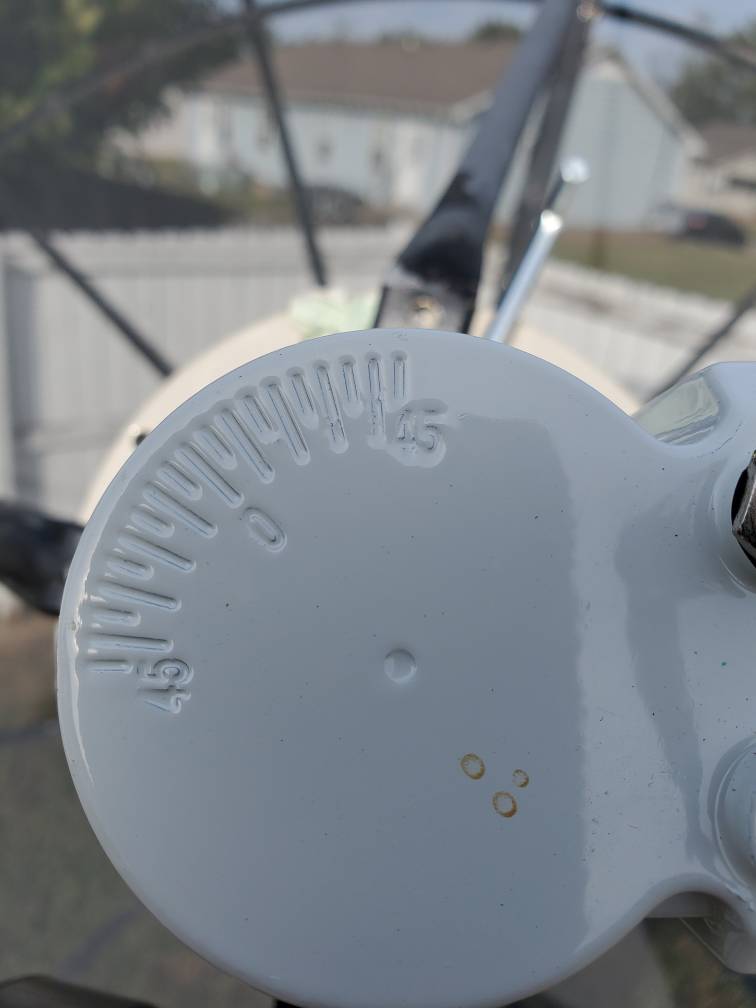

Its 89inches in diameter. Dish depth of 12inches. Iam using a C1-PLL cband lnbf. Where should I have the scale set up on the top of the lnbf see the attached photo.
Thanks in advance.


Sent from my SM-G975U using the SatelliteGuys app!


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,140
8,023
Meadow Vista, Northern California
Depends if this is a fixed or motorized dish.

If a motorized dish, the "0" is aligned with the vertical axis of the dish (12 o'clock position when mount is centered at the peak of the arc "True South").

If fixed, "0" is the vertical probe and aligned with the skew angle for this satellite at your install location.

Here is the install guide. It should answer any install or alignment questions.
www.titaniumsatellite.com/downloads/Guides/LNBF%20Install%20Guide.pdf

  • Like
Reactions: KE4EST

KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,629
5,888
EM75xb
Read through this: BUD manual
You should center the 0 with either 12 or 6 'o clock on your dish.


KE4EST

SatelliteGuys Is My Second Home
Staff member
HERE TO HELP YOU!
Lifetime Supporter
Aug 9, 2004
25,629
5,888
EM75xb
Ha Brian and I posted at same time. After your go through either of those install guides and still are only getting one polarity, then your receiver is not switching as it should.
