How do i get a KU dish to point lower?

Status
Please reply by conversation.

phlatwound

SatelliteGuys Pro
Lifetime Supporter
Dec 25, 2007
3,250
203
Goosapeak Junction
You may have already tried it but you can get your dish elevation fairly close by placing a straightedge and angle finder vertically from edge-to-edge on the reflector and "doing the math" with your offset angle and elevation above the horizon.

Good luck with it, you will get it.


gpflepsen

Supporting Founder
Supporting Founder
Sep 8, 2003
3,289
294
SE NE
Another method to get there and make it easy to experiment in getting any orbital position is to install the mast at the elevation angle corresponding to your latitude, just like setting up the pivot axis on a C-band dish mount or a KU motor. Once you have this and aimed due south, just rotate the dish on the mast to go from orbital to orbital.

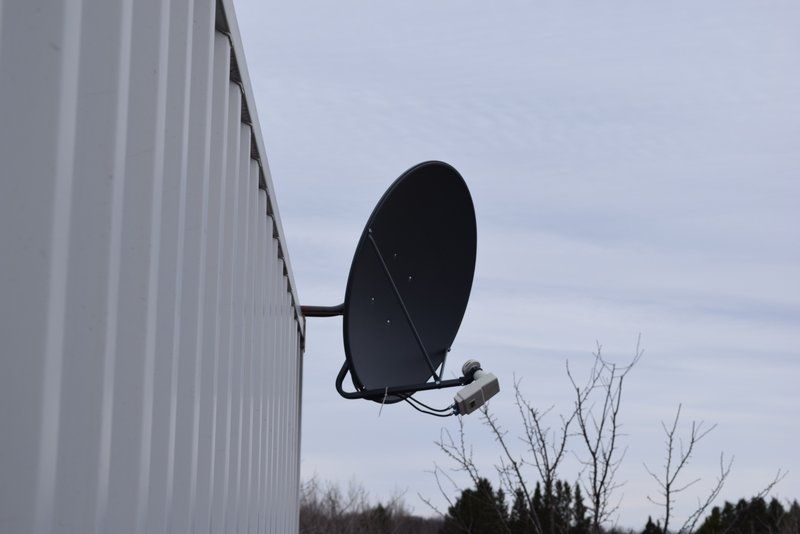

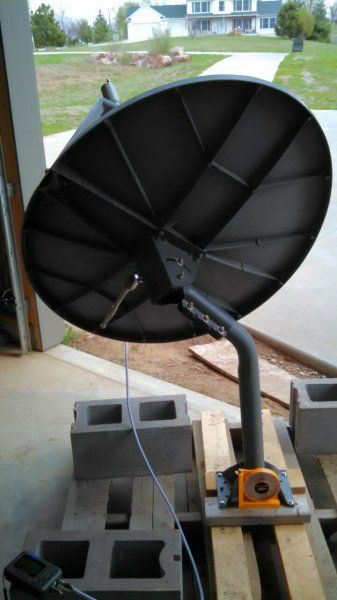

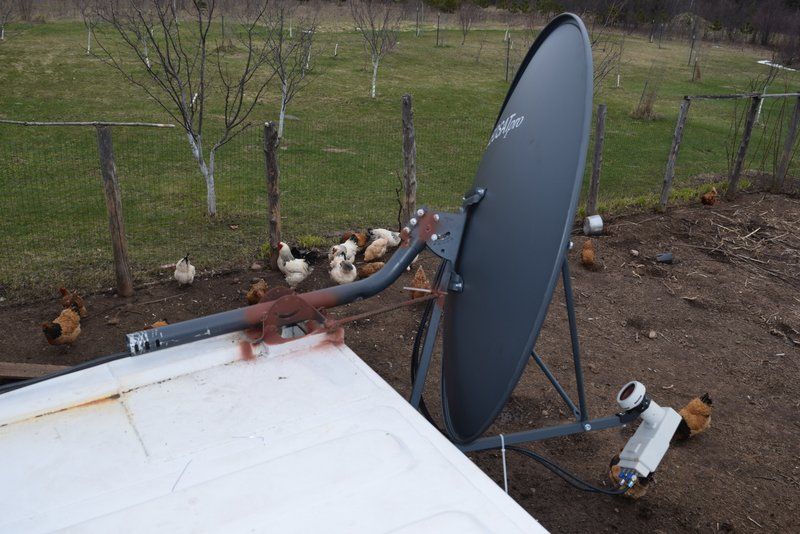

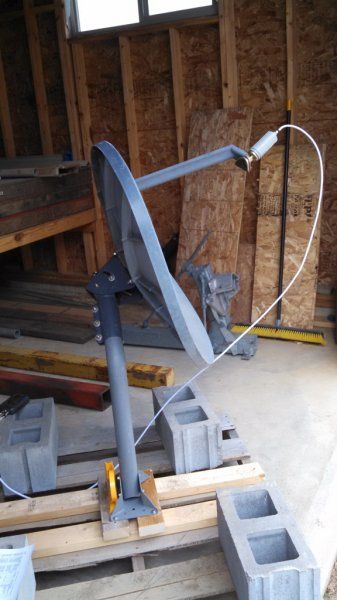

30W is 9° elevation for me and this is one of the ways I hit it. These pics have the reflector mounted upside down on the mounting bracket.






danristheman

SatelliteGuys Pro
Jan 25, 2011
3,142
1,132
85w

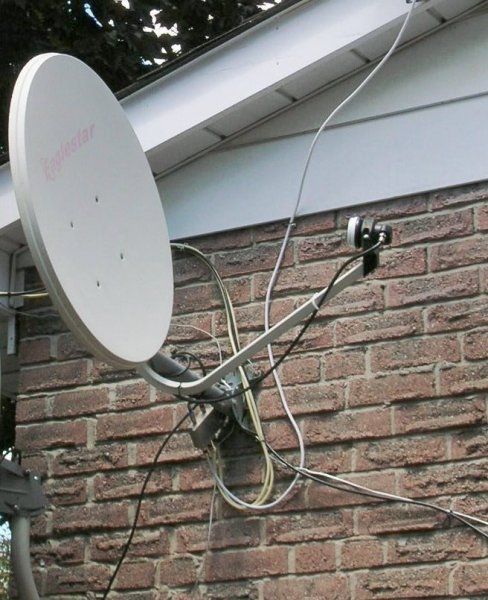

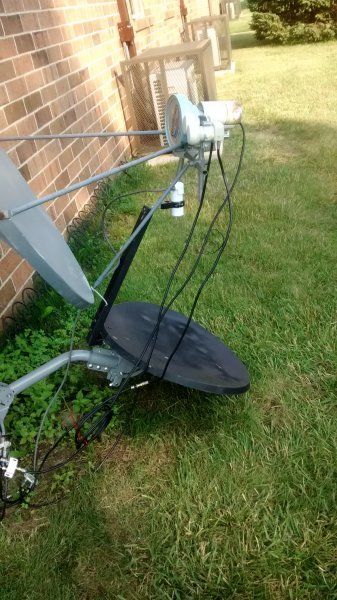

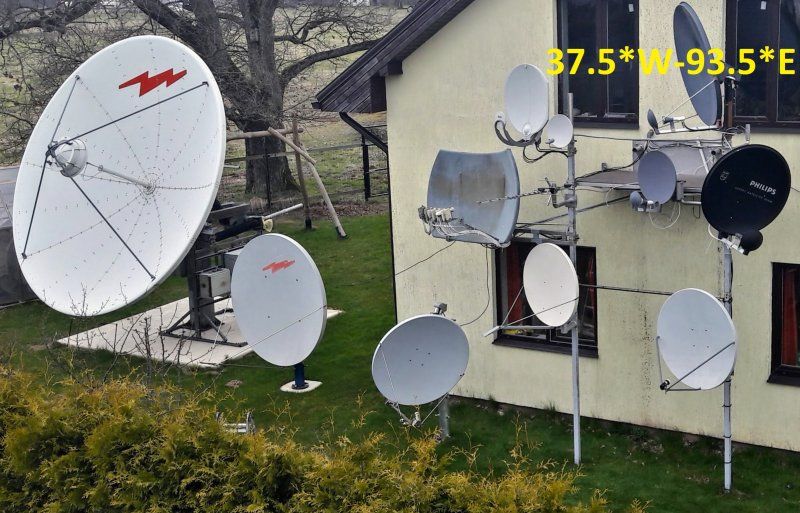

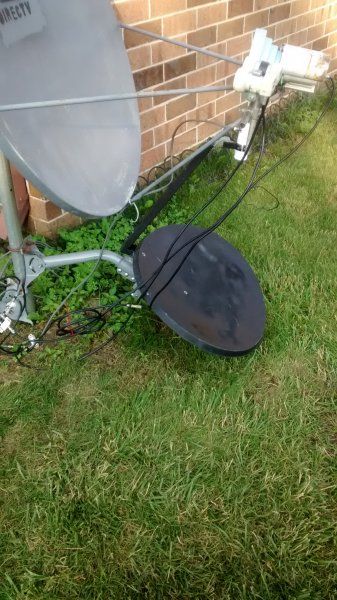

IBoston here is some pics to help you out of my old setup before I got into trouble from the office.


Attachments

  • IMG_20140628_185803785[1].jpg
    66.9 KB · Views: 165
  • IMG_20140628_185744589[1].jpg
    64.4 KB · Views: 147
  • Like
Reactions: olliec420

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
1,940
1,189
North Central
Thanks for all these thoughts / suggestions.. Now the idea from gpflepsen is just way cool, although not possible with this particular situation, but ill have to try that in another application.


Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,278
830
Boonies
I have been using a motorized system to get 30w on a 90cm offset dish. Pole has to be perfectly plumb and solid for it to work though. It's 6 deg above the deck here too, and I have to run the motor all the way east against the stop using DISEqC in order for it to work. Think the motor is an old SG2100, still solid. This way no worries about the skew, motor takes care of that.
Takes forever for the dish to move there especially from 107w or farther away, even using 18v (horizontal polarity)! :)

  • Like
Reactions: dlf35121

Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,089
7,946
Meadow Vista, Northern California
Looks good!

Keep an eye on the lens cover for the QPH-031 LNBF. As they age, the UV exposure makes the lens very brittle and will eventually deteriorate. When the lens material was UV tested during the QPH-031 development, we spec'd it for 10 year exposure. While many installs made that benchmark, I am certain that most did not. :( Wish I had a do-over on that choice... LOL!

Water will definitely collect at that angle!

  • Like
Reactions: iBoston

iBoston

Thread Starter
SatelliteGuys Pro
Jul 15, 2014
1,940
1,189
North Central
Looks good!

Keep an eye on the lens cover for the QPH-031 LNBF. As they age, the UV exposure makes the lens very brittle and will eventually deteriorate. When the lens material was UV tested during the QPH-031 development, we spec'd it for 10 year exposure. While many installs made that benchmark, I am certain that most did not. :( Wish I had a do-over on that choice... LOL!

Water will definitely collect at that angle!

Thanks for the heads up. I do remember hearing that somewhere else too. Ill keep an eye on it. I have more work to do up there. I have to do some painting up there and wire organization, but the weather has NOT been cooperative. Its been a snowy/rainy two weeks.


spongella

SatelliteGuys Pro
Pub Member / Supporter
May 12, 2012
1,577
1,165
Central NJ
Nice installation iBoston. Seems to be high enough so the birds won't roost on it hihi. Had similar problems with getting Telstar (15 W) signal with a Ku dish and it was solved just by moving the dish to a different area of the yard. Hope you enjoy Hispasat programming. Hint: scan all the channels, as some with the $ sign at the beginning at times are FTA.

P.S. Would not mount dish upside down, otherwise you'd have to stand on your head to view programs .......
