Anyone know if or where I can obtain a schematics diagram for a MCP61PM-HM (Nettle2) motherboard ? I want to replace some bad caps on this board. I would love to have the correct ones on hand before pulling the board out of the case.
Need schematics
- Thread starter Frank Jr.
- Start date
- Latest activity Latest activity:
- Replies 13
- Views 2K
Unlikely you will find this doc. Reason is these boards are often different based on the rev number which changes too often to publish schematics. Best to pull the board and look at the caps and replace with actual values. Better yet, just buy a replacement board. You may have trouble soldering a multi layer board technology.
Thanks for the replies guys. The PC still works but only boots up sometimes. I can see the tops of the bulging caps. One leaking from the top. I can't read the values without pulling the board though. This is just a spare PC out of the closet. I know I can purchase a replacement board but just don't think it would be worth it, but then again maybe it would. It is about 2 1/2 years old and has decent specs.. For the cost of the caps I think it would be worth a shot.

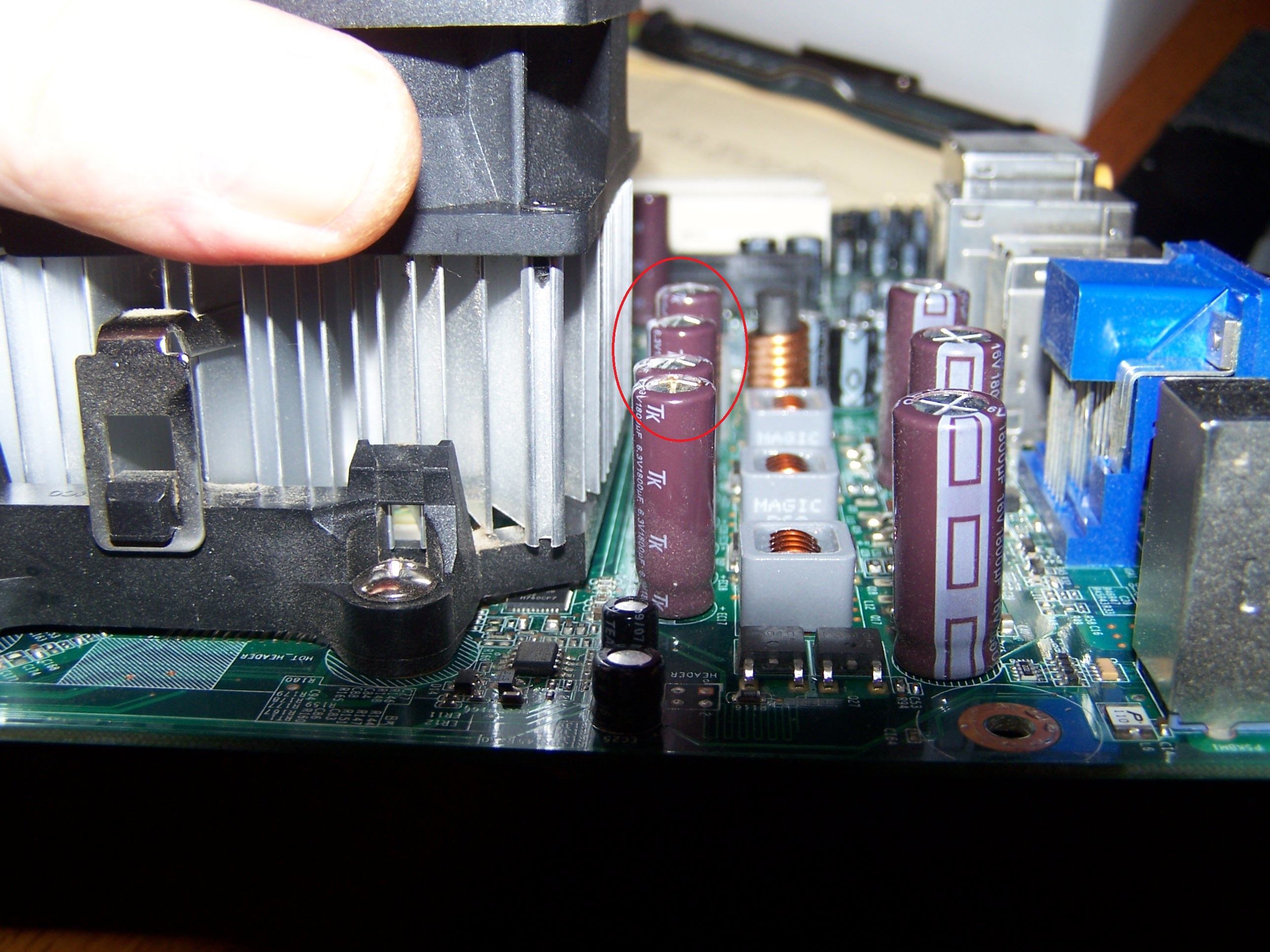

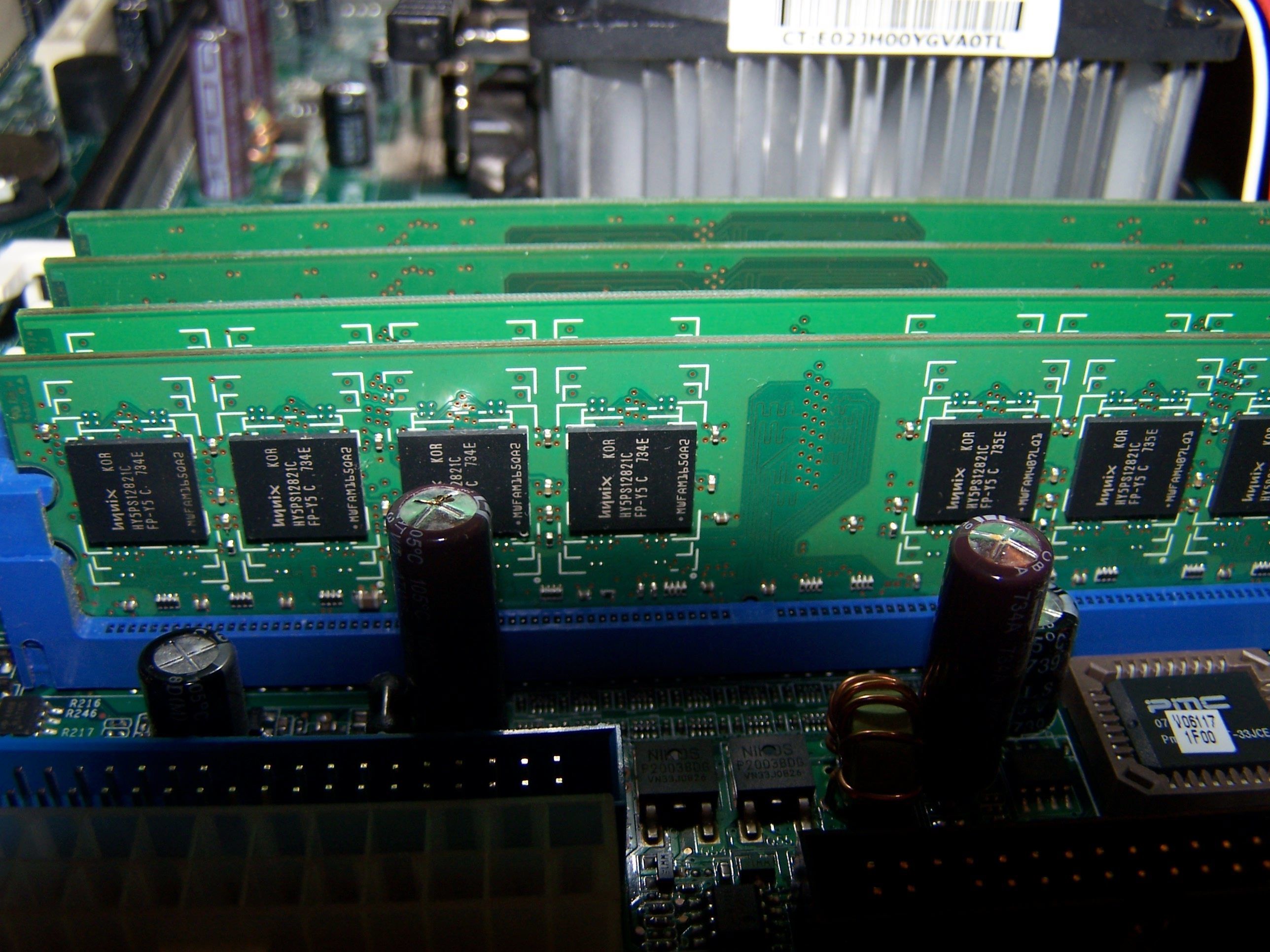

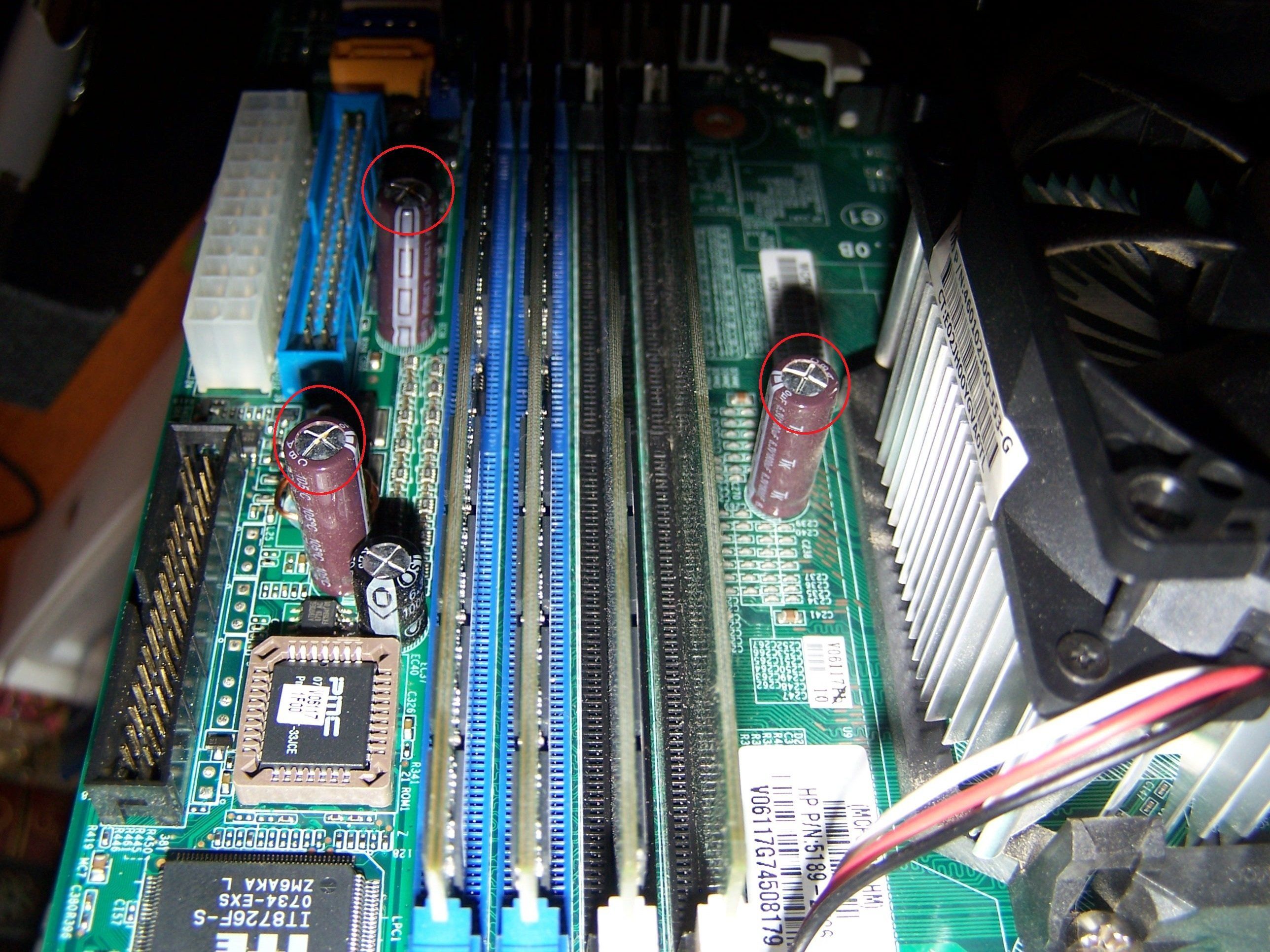

Well I took out the mobo. Just for the heck of it, here are some pictures of the bad caps. All together I found 8 of them, all made by Toshin Kogyo (Tk). (6.3v 1800uF) I just checked, I can by 10 Rubycon caps for 9 bucks plus shipping. Obtw I know it is a little dusty. It will be cleaned up.
Attachments
You should have no trouble removing the capacitors and soldering in the replacements (as long as you're comfortable with a soldering iron). I've done a number of repairs like this and I have found that the capacitors can be removed by simply pushing the cap over towards one lead which levers the other lead out of the board. If the lead breaks off, you can use needle-nose pliers to pull the lead straight up. If that fails, I resort to the soldering iron.
The advantage to the mechanical removal is leaving the plated holes open and ready for the replacement caps.
Good luck!
The advantage to the mechanical removal is leaving the plated holes open and ready for the replacement caps.
Good luck!
Thanks for the tips, I have no problems soldering other than being very careful not to mess up a trace........
Just an update. The capacitors came in the mail Friday. Tonight I replaced all 9 of the 6.3v1800uf caps on the board. From start to finish it took about an hour and a half. It is up and running well. I have to thank Troy Brown who owns thecapking. I ordered 10 of those caps which cost all of 3 dollars with free shipping. They arrived in two days. I will leave it on all night and sometime tomorrow it goes back in the closet for a spare if need be. Thanks everybody for the help and advice.
Obtw if anyone has a HP m8300f look out for those bad caps on the motherboard.
