SADOUN SP180 Polar Mount

http://sadoun.com/Sat/Products/S/Dishes/SP180-Replacement-Polar-Mounts.htm

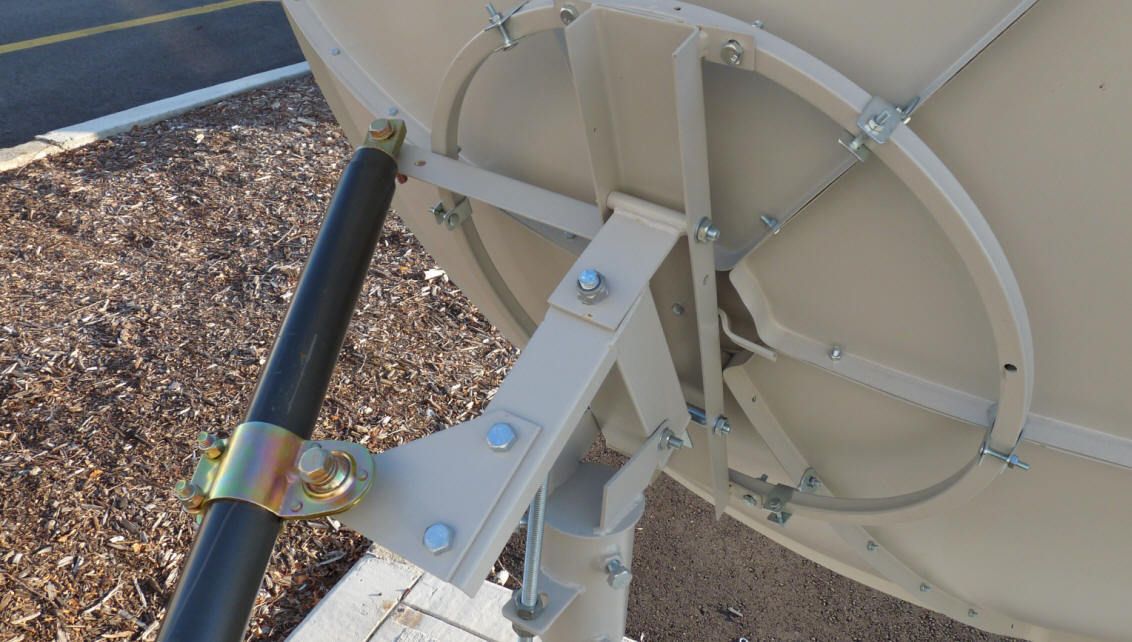

(Polar Mount shown with optional linear actuator, dish, and floor mast)

SP180: Replacement Polar Mount

* Fits on Sadoun or Fortec 180cm Dishes.
* Fits on a 3" Dia pole
* Use it with SD180PM: Polar Mount Style prime focus dishes.

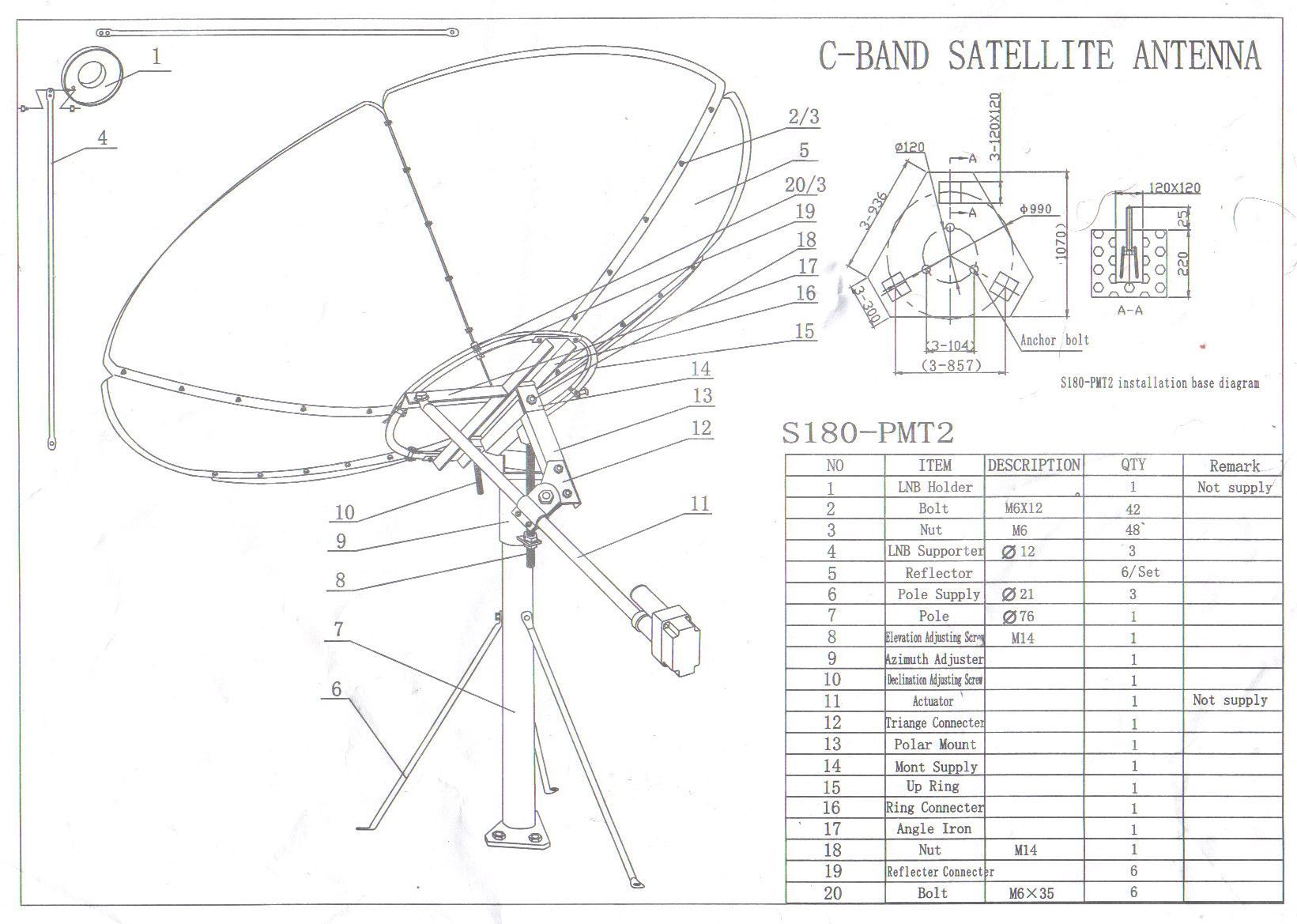

SP180 consists of items #12 through 19 in the diagram.


Attachments

  • SD180PM-parts-diagram.jpg
    196.2 KB · Views: 419
  • P1020984.JPG
    112.2 KB · Views: 307
  • P1020995.jpg
    201.3 KB · Views: 490
  • P1020999.JPG
    92.1 KB · Views: 282

Anole

SatelliteGuys Master
Sep 22, 2005
11,819
10
L.A., Calif.
Wow, if this mount had been available 3..4 years ago, I'd have had one by now! - :up
Hope it's a good seller for ya.


I looked at the pictures and wasn't sure where the declination adjuster was located.
Probably just overlooked it in my excitement.
edit: oh, now I see it in the pictures on your web site.


Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,335
914
Boonies

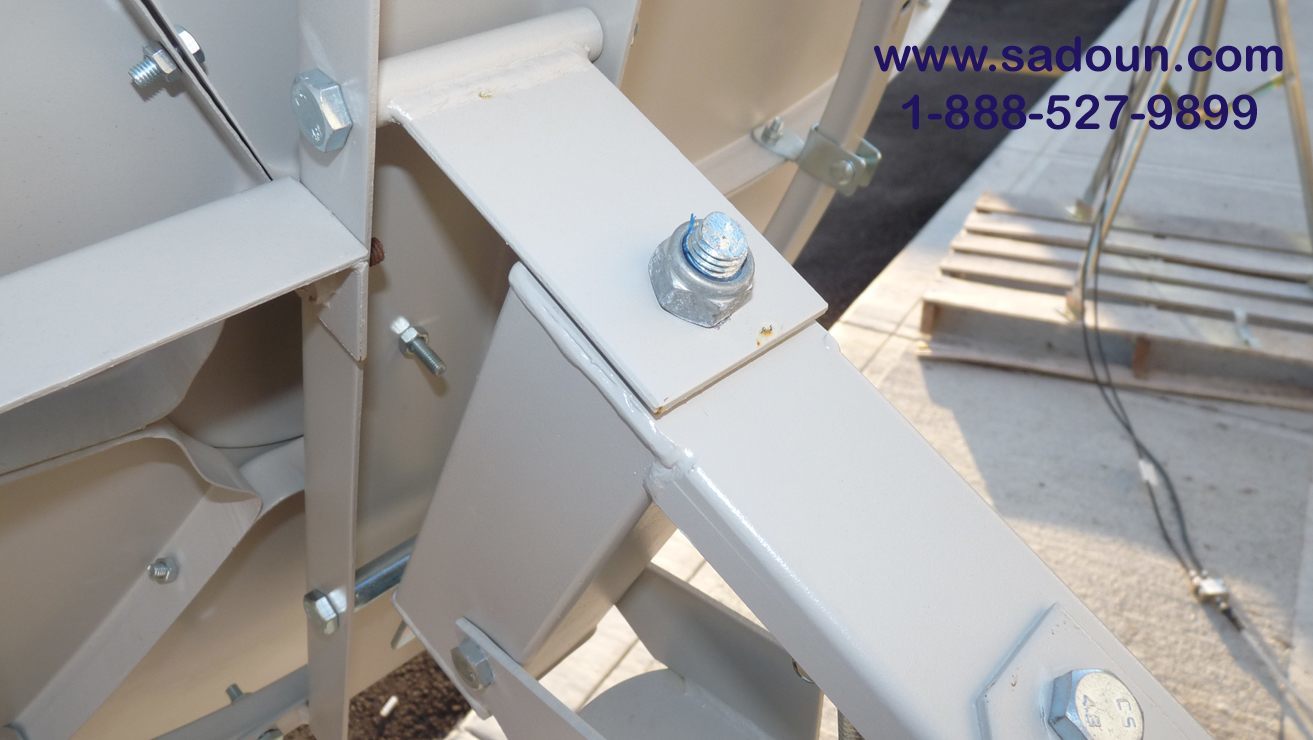

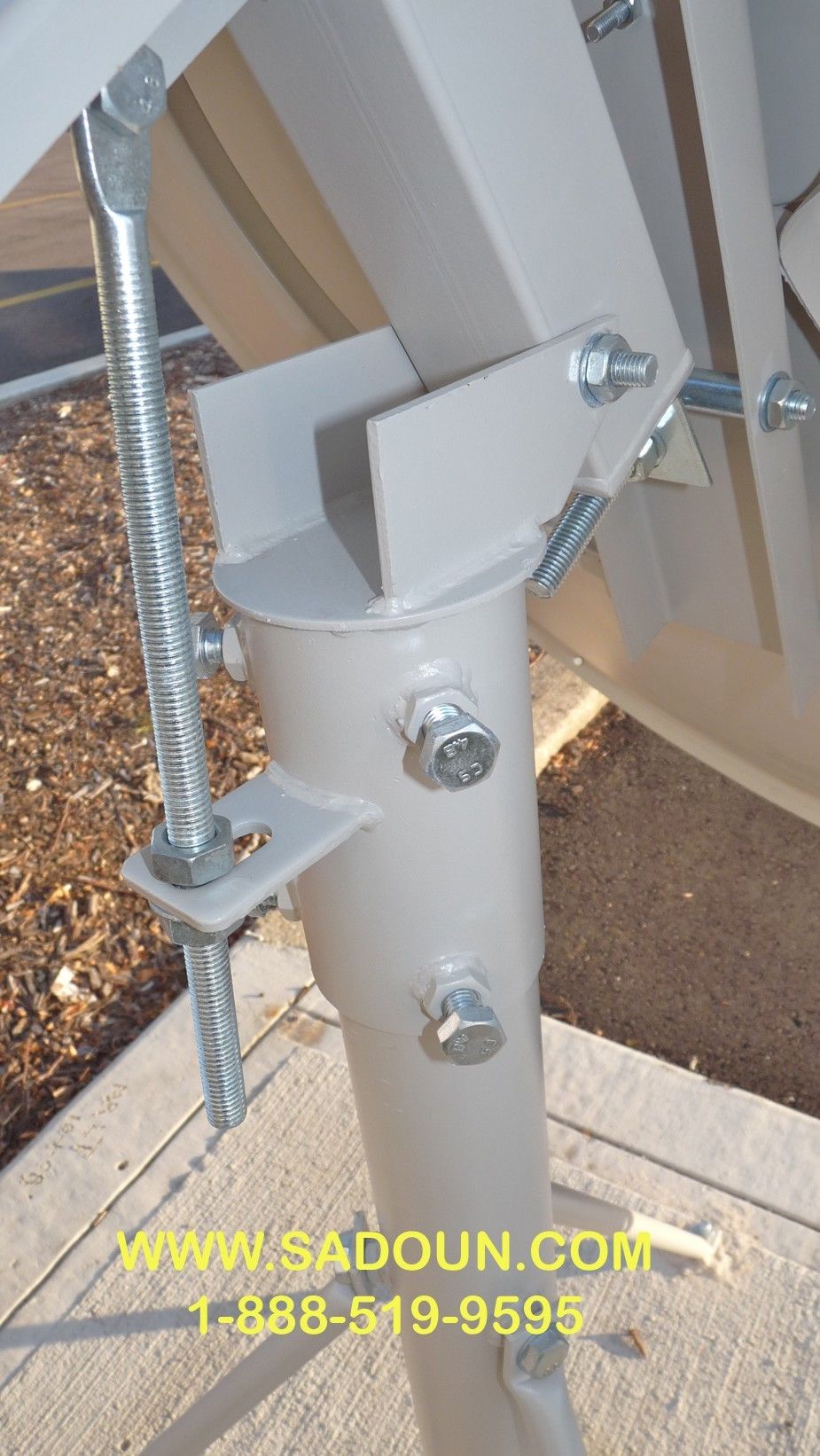

Looks like declination adjustment on lower hinge in picture #3. You can see the adjustment bolt sticking below the hinge behind the polar axis. Likely a bolt welded to a steel tube that fits through a flange.
Nice mount..
-C.


Blindowl1234

SatelliteGuys Pro
Dec 16, 2008
2,034
90
SouthWest Ohio
I've got both items pole and the mount. I love them! On my 6 foot Fortec I also hooked up the Gbox and I'm in Cband heaven. I was surprised how solid the pole is once its mounted. I used lead anchors and leg screws to mount mine to an old concrete patio table top. My only issue is I wish I had the 8 foot dish and not a six. I do miss some things to the far east 87w and far west 135W. I can manually adjust the declination- raise or lower the dish if I want those birds. But the mount and the pole are really nice. Blind:)


divo

New Member
Nov 26, 2009
4
0
Italy
I own a fortecstar 2.4m tripod mount dish, can the SP 180 replacement Polar mount be used on it with a 24 inch actuator? Has anyone this configuration o has this mount on a bud superior to the SD 180? I intend getting one immediately if all is ok. Thanks to all.


Blindowl1234

SatelliteGuys Pro
Dec 16, 2008
2,034
90
SouthWest Ohio
Divo, I have the pole mount with a 24" acuator on a six foot Fortec dish. I scan from 72W to 135W no problems. I can't get farther than 135W as the accuator is at its limit and I have massive trees there too. Can't go below 72W due to trees but the acuator goes farther east for sure....Seems to work ok for me...Blind


Sadoun

Thread Starter
SatelliteGuys Pro
Feb 27, 2005
2,320
0
Columbus, OHIO
I own a fortecstar 2.4m tripod mount dish, can the SP 180 replacement Polar mount be used on it with a 24 inch actuator? Has anyone this configuration o has this mount on a bud superior to the SD 180? I intend getting one immediately if all is ok. Thanks to all.

Divo,

This mount is designed for the 180cm dish. The ring is not big enough to support a 2.4m dish. However, is it impossible, NO. Is it recommended? No.


divo

New Member
Nov 26, 2009
4
0
Italy
I intend to use the mount on an 8 feet dish (240cm) fortecstar and my question was if it is possible since Sadoun sells it for 6 feet.


divo

New Member
Nov 26, 2009
4
0
Italy
Divo,

This mount is designed for the 180cm dish. The ring is not big enough to support a 2.4m dish. However, is it impossible, NO. Is it recommended? No.

I intended taking off the ring and welder that of the 2.4m dish on the mount only if it is robust enough to support dish. Can i ? Thanks


AmericanZ28

SatelliteGuys Family
Jan 20, 2010
72
1
Central California
Im really interested in this mount as well as one of your 180cm dishes to go with it. The only reason I'm holding back is the color. Do you have any in a dark or charcoal type color?
