Titanium Satellite CK1-S Repair

Discussion in 'C-BAND Satellite Discussion' started by dsmith0429, Jan 31, 2018.

Thread Status:
Not open for further replies.
  1. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    Hi SatelliteGuys,

    Thought I'd share a "fun" project I just completed.

    I repaired a Titanium Satellite CK1-S C/ku band LNBF that was damaged because of a bad terminal.

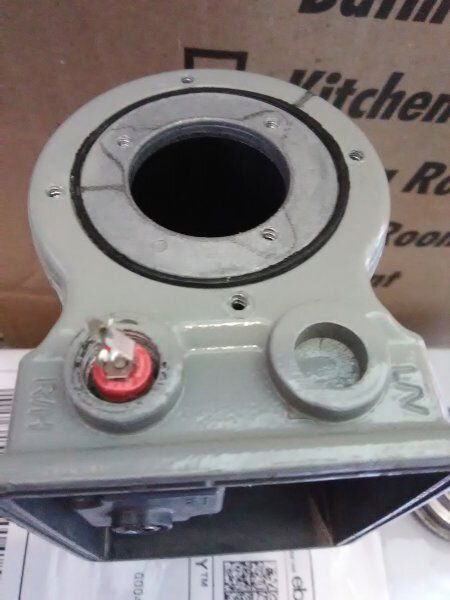

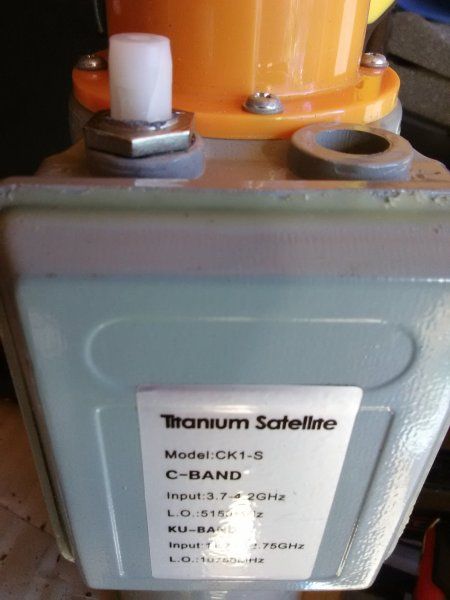

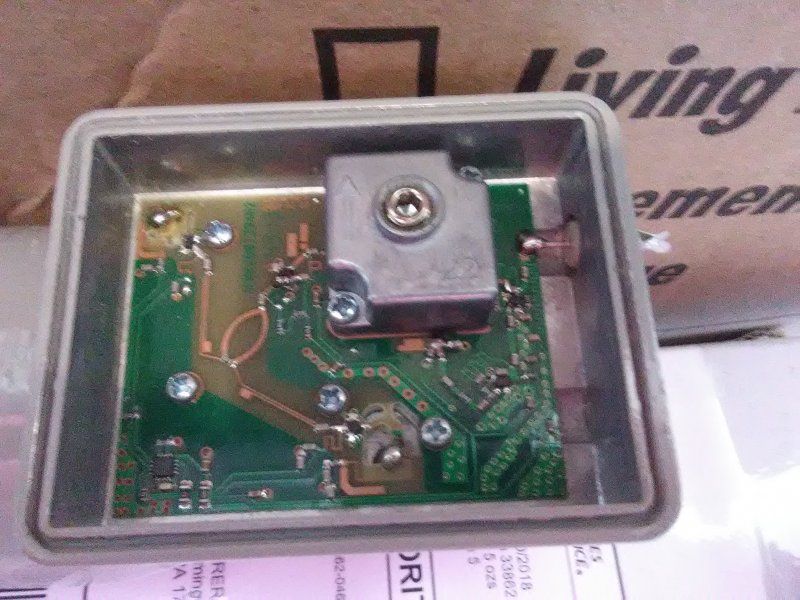

    The C-band side terminal was die-cast and very thin, which broke off easily. I was about to toss it out, but decided to try and repair instead.
    [​IMG] [​IMG]

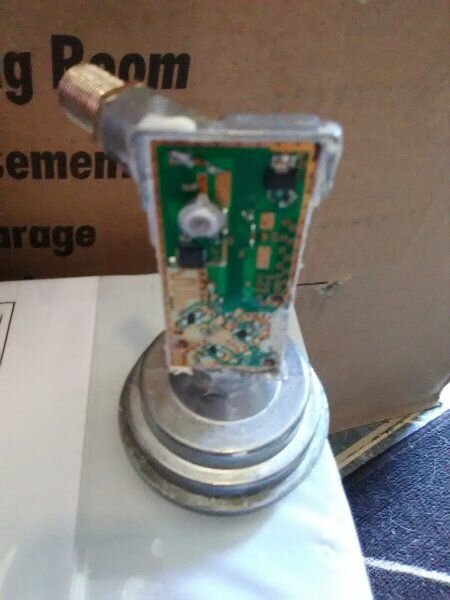

    I had a KU-band LNBF that was no good, but had a gold plated connection,
    [​IMG]

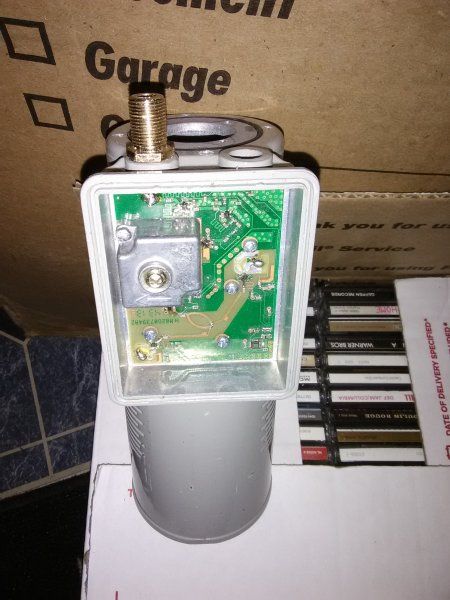

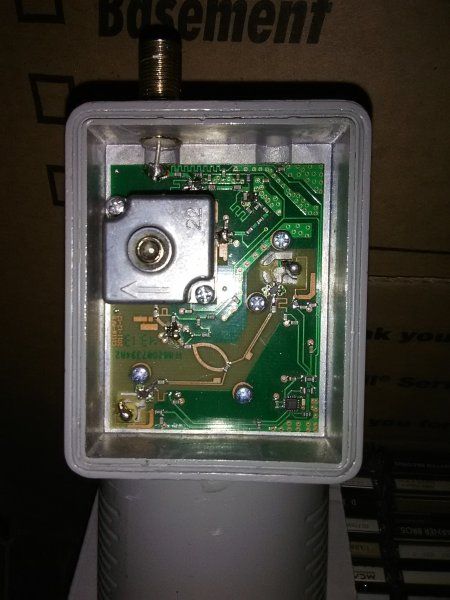

    so I carefully unsoldered the terminal, and transplanted it to the CK1-S.
    IMG_20180131_180330.jpg IMG_20180131_180345.jpg IMG_20180131_181220.jpg

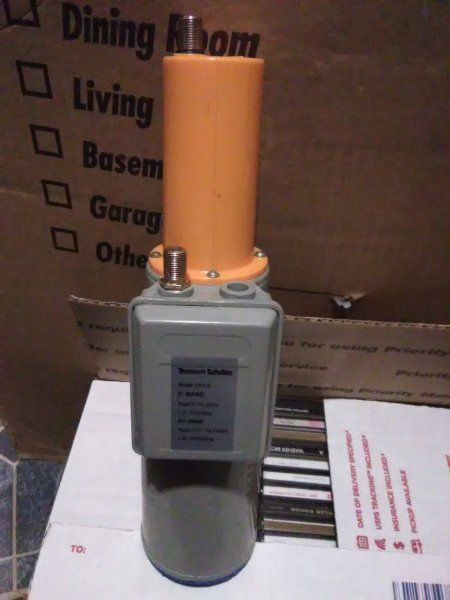

    BAM! perfect fit, a stronger terminal, and is working perfectly again.

    The LNBF itself always worked great for me, but the terminals could use an upgrade.


    Attached Files:

  2. KE4EST

    KE4EST SatelliteGuys Is My Second Home Staff Member HERE TO HELP YOU!

    Joined:
    Aug 9, 2004
    Posts:
    24,718
    Likes Received:
    5,086
    Location:
    EM75xb
    I love seeing projects like this!!

  3. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    Thanks! I just hated the idea of tossing it when it was practically new. I bought it over a year ago but had only recently started using it, and had to take my dishes down for hurricane Irma. And this is what happened when I went to reinstall. I had another c-band that the terminal wasn't soldered good on the inside that I repaired a while back too. I posted it quite some time ago, somewhere on here, it was a cheap Young YY-CD008 C-band LNBF. I also had repaired a Titanium Satellite C1W-PLL lite C-band LNBF that the terminal came loose on the inside as well.

    Ku dish used for Cband

    KE4EST likes this.
  4. Titanium

    Titanium AI6US Lifetime Supporter

    Joined:
    May 23, 2013
    Posts:
    6,558
    Likes Received:
    7,021
    Location:
    Meadow Vista, Northern California
    Have seen many damaged f-fittings over the years of service calls, but have never broken one myself (putting them on... taking off someone else's fitting is another story). Knock on wood... Finger tighten the f-fittings with a cap of dielectric silicone. No need to wrench them. ;)

    Lee60, KE4EST and Horsepower like this.
  5. N6BY

    N6BY Geek Lifetime Supporter

    Joined:
    Mar 1, 2006
    Posts:
    1,843
    Likes Received:
    1,250
    Location:
    Roseville, CA 121W
    Nice repair and write-up. The satisfaction you get from fixing things yourself is worth twice the cost of buying another. (At least in my mind). :)

    Is it possible to mount dedicated C and KU LNBFs side by side? I'm doing that with my Birdview dish and get better signal quality than the combined C/KU LNBFs.

    Lee60, Titanium and Brct203 like this.
  6. Lone Gunman

    Lone Gunman SatelliteGuys Pro

    Joined:
    Mar 19, 2010
    Posts:
    2,976
    Likes Received:
    700
    Location:
    southeast
    And one thing on this also is the $55 you SAVED by NOT having to buy another one!! If you're on a fixed income like I am, the only way you can make money is by SAVING money on stuff like this. Some ppl refer to me as "Cheapskate" and I do resemble that remark!! :oldwink

  7. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    When I removed the old one, it appeared to have been cross-threaded on the inside, so it may have been a manufacturing defect, but don't know for sure. I'm thinking there was a hairline crack, and it just finished breaking when I re-installed after hurricane Irma. I never wrench them (anymore at least, :coco, that always turns out bad on RF connectors it seems. I learned that lesson from the 1st one I had to repair a few years ago. That is why it broke, instead of separating from the LNBF, it unscrewed the RF terminal with it. At least it's been a fairly easy fix so far.

  8. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    Same here, and I knew that was all that was wrong with it, so I had nothing to lose by trying to repair it.

    I also have a 6 foot hurricane damaged fiberglass dish I'm trying to decide if or how I can repair. It has cracks and bulges where the dish was bolted to the frame for the post, and it had a central post for the LNB that is also bent. So a lot of work involved in restoring, but again all I have to lose is time trying.

  9. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    As long as you can get the angles for the LNBFs correct I don't see why not. I haven't tried this myself, but I'm sure others on here have done it. But I believe that you have to have a Ku band LNBF that is made for a prime focus dish when using on a big dish.

  10. wvman

    wvman SatelliteGuys Pro Lifetime Supporter

    Joined:
    Sep 19, 2014
    Posts:
    2,675
    Likes Received:
    1,260
    Location:
    N. Central WV
    Some ppl think they need a six foot wrench to tighten an F connector. I use connectors with an "O" ring in them, but I always squeeze in a little dialectric compound to make the "O" ring slip against the connector. I just tighten them to snug to seal the connector, but it doesn't take much to loosen them when needed. I use a security driver made for installing F connectors in a tamper proof connector. I get a better feel than when I use a wrench.

  11. N6BY

    N6BY Geek Lifetime Supporter

    Joined:
    Mar 1, 2006
    Posts:
    1,843
    Likes Received:
    1,250
    Location:
    Roseville, CA 121W
    Actually what I meant was if you have considered doing it instead of the dual purpose LNBF (I already have side-by-side LNBFs on my Birdview). For KU I'm using an Invacom C120 which has an adjustable F/D ratio scalar for use with prime focus dishes.

    dsmith0429 likes this.
  12. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    I like to use use an impact wrench:eeek

    Some LNBFs have thin walled F-connectors, add to the fact I had to take my dishes down in a hurry for hurricane Irma, probably didn't help either.

    What surprised me was the Ku-band side seems to have a better connector than the C-band side. But probably assembled in 2 different locations, thus different parts available.

    But I only finger tighten, and also use o-rings, and I have used silicone to seal some, which keeps them nice and tight, and it's easy to remove if needed.

    N6BY likes this.
  13. N6BY

    N6BY Geek Lifetime Supporter

    Joined:
    Mar 1, 2006
    Posts:
    1,843
    Likes Received:
    1,250
    Location:
    Roseville, CA 121W
    I like to weld mine. :) JK
    Looking at the first photo in post #1, what's left of the F connector looks extremely thin walled. Not sure where it was manufactured, but some countries in the far east will do almost anything to save a penny on materials.

    #13 N6BY, Feb 3, 2018
    Last edited: Feb 3, 2018
  14. wvman

    wvman SatelliteGuys Pro Lifetime Supporter

    Joined:
    Sep 19, 2014
    Posts:
    2,675
    Likes Received:
    1,260
    Location:
    N. Central WV
    I bought some bulkhead connectors to use in a surveillance DVR because I kept having issues with the BNC connectors causing the video to jump and carry on. I changed all 16 of the BNC connectors to F-connectors, which took care of the problem. The solder tab on the equipment end would spin inside the main body of the connector to avoid twisting the center conductor loose from the circuit board if the entire connector was spun in the housing.

    If the connector was threaded into a housing, it would be pulled loose from the circuit board if backed out too far. I found this to be the case on several LNB replacements when the customer tried to take a cable loose that had been over tightened by someone else or by the customer. I kept the old LNB's just to see what happened to it and when I took the cover plate off, I saw it had been twisted loose from the board. Usually a re-solder would fix the problem and it gave me a test LNB to play with.

    I've found similar problems at the customer's receiver. It's amazing how many people damage equipment by over tightening connectors and don't realize it. :)

  15. bpalone

    bpalone SatelliteGuys Pro Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    630
    Likes Received:
    421
    Location:
    44N 105W
    Then there are those few special folks, that have the ability to tear up an anvil in a plowed field. :)

    Jason S and Titanium like this.
  16. wvman

    wvman SatelliteGuys Pro Lifetime Supporter

    Joined:
    Sep 19, 2014
    Posts:
    2,675
    Likes Received:
    1,260
    Location:
    N. Central WV
    You got that right. :clapping

  17. N6BY

    N6BY Geek Lifetime Supporter

    Joined:
    Mar 1, 2006
    Posts:
    1,843
    Likes Received:
    1,250
    Location:
    Roseville, CA 121W
    "Over tightened" :fencing"Thin walled"

  18. Titanium

    Titanium AI6US Lifetime Supporter

    Joined:
    May 23, 2013
    Posts:
    6,558
    Likes Received:
    7,021
    Location:
    Meadow Vista, Northern California
    I wouldn't want to risk shaking hands with anyone who is able to finger-tighten a f-fitting to the point of breaking!

  19. dsmith0429

    dsmith0429 Topic Starter SatelliteGuys Pro

    Joined:
    Sep 12, 2013
    Posts:
    462
    Likes Received:
    190
    Location:
    Lake Placid, FL
    Ahhhh... I haven't tried yet, but I'm always up for a challenge, and I'm addicted to FTA, so I'm sure I'll be trying to soon... :idea I have a motorized Ku-band setup, this dual purpose LNBF was one I had just bought for experimenting with on a mini-bud project using an old PrimeStar/ChannelMaster dish.
    Sometimes I just don't know my own strength :oldlaugh Now if I can just keep the dogs from chewing the wiring... just had to redo a cable thanks to a German Shepherd pup... :coco

    Titanium likes this.
  20. wvman

    wvman SatelliteGuys Pro Lifetime Supporter

    Joined:
    Sep 19, 2014
    Posts:
    2,675
    Likes Received:
    1,260
    Location:
    N. Central WV
    I had a Lab pup that was hell on wires. I was told to buy some of the stuff people put on fingernails to keep kids from chewing them. It didn't slow him down. I eventually put all the wires in conduit. By all odds, that pup should have been dead from all the wire he chewed up. I would think wire would cut his insides to ribbons, but he lived to be 14 years old. Go figure.

    dsmith0429 and truedowneast like this.
