I looked around but could not find a guide/overview of how satellite switches work.

I'll be recieving a new hd-directivo next week (or so) and need to add it to the mix of my current configuration (sd-directivo, 2 regular recievers).

Any ideas?


Downy

Active SatelliteGuys Member
Apr 13, 2004
22
0
Colorado Springs
You'll need a total of 6 outputs from the dish. If you have a tri-mode eliptical dish, it comes with 4 outputs. So you still need a multiswitch. A standard multiswitch won't work. Standard multiswitches operate by voltage applied. You need a multiswitch that also passes a 22kh tone.


Buji

Thread Starter
SatelliteGuys Family
Apr 1, 2004
67
0
Thanks Downy. I was pretty sure I needed a switch, and when I started looking into it, I realized that unlike the other aspects of DBS technology, I don't know very much about how the switches work, etc.

Still looking for an overview of how switches work (since they're not simple splitters)


Buji

Thread Starter
SatelliteGuys Family
Apr 1, 2004
67
0
Well, I called and asked DirecTV what switch I should use, and they said any 2x4 switch, so I went to radio shack and picked one up there. Even though the box clearly stated that it was for a dual LNB dish, the saleskid said it would work. I figured I could bring it back if it didn't work, and I took it home to try.

Well, as long as I stayed on SD channels, it seemed to work ok. If I tuned to an HD channel, I got a message from the hdtivo that it had 0 signal on reciever #2 etc.

So I called DirecTV again, and after relaying my problem history, was told that I just need 'any old 4x8'. I have my doubts about this.

PArt of the problem is that I already have two cables going to the living room, which are run through the walls, and I don't have a good method of running new cables to the living room without running surface cables outside, which I would SERIOUSLY like to avoid.

I guess part of the confusion comes from the fact that there is already a multiswitch of some kind in the dish; does this mean that I need a special downstream multiswitch?

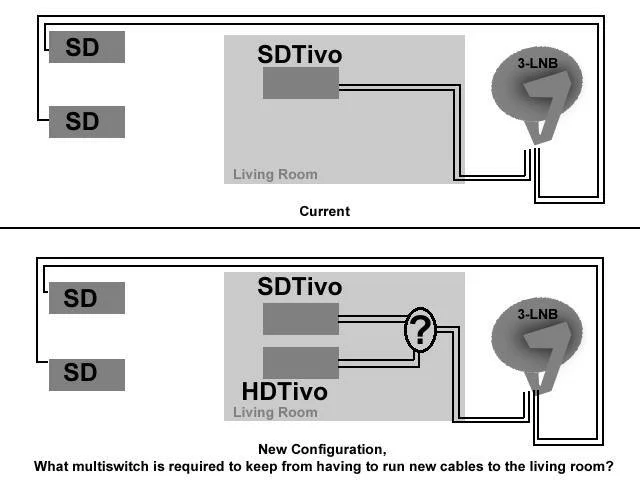

I have a diagram which I will post momentarily which may help explain what I'm looking for.


Attachments

  • switchquestion.jpg
    26.9 KB · Views: 178

022266

SatelliteGuys Guru
Apr 25, 2004
124
0
North Carolina
You need a powered 4x8 Multi-switch, as Downey stated above that has 22kHz switching for all signals to pass. The triple LNB has a built in Multi-switch and if you add a reg. Multi-switch ( thats not powered ) it will confuse it.( NOT WORK! )
Here is a link, http://www.starlink-dss.com/multiswitch.htm
You can find diagrams there, do a search for powered multi switch 4 x 8 there are bunch out there.
Hope this helps.
