C-Band NPRM

martin-f

SatelliteGuys Guru
Oct 16, 2017
149
164
uk
  • Like
Reactions: comfortably_numb

cyberham

SatelliteGuys Pro
Jun 16, 2010
2,394
276
Halifax, Nova Scotia

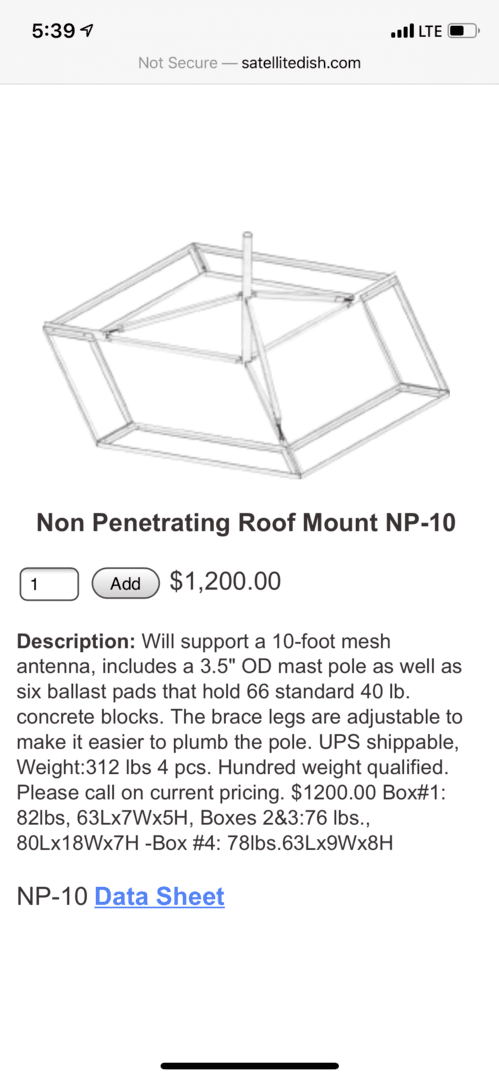

.....I wonder what those NPRM cost.
You can buy from here:


Sent from my SM-G950W using the SatelliteGuys app!

  • Like
Reactions: comfortably_numb

comfortably_numb

Thread Starter
Dogs have owners, cats have staff
Pub Member / Supporter
Nov 30, 2011
8,482
8,918
Missouri/Kansas
Hi a forum members is selling some.

Kijiji, eBay, and Craigslist dishes for you to take a look at

Considering the prices for new ones, that's a bargain if you live local and can pick it up.

  • Like
Reactions: martin-f and FTA4PA

907TECH

SatelliteGuys Pro
Aug 29, 2018
175
206
Alaska

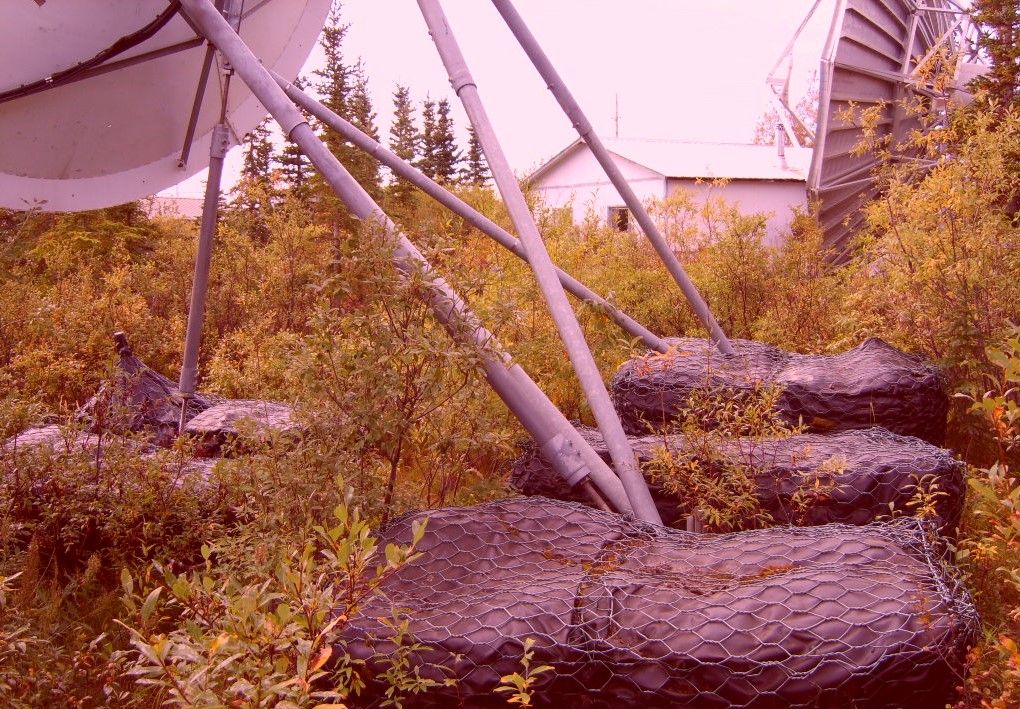

There are a couple hundred plus 4.5 meter C band dishes in the Alaska bush, there are no traditional building materials available usually "rock boxes" are used to anchor them down. A variety of surface mounts are used whatever works.


Attachments

  • Like
Reactions: martin-f and FTA4PA

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,209
777
Boonies
I mounted an 8ft CM offset on railway ties buried just below ground surface. Hasn't blown over yet! Likely not best for a rooftop though can't bury anything there unless you can tie into the roof structure somehow.
Shouldn't be difficult to weld something like post #6 with some material from a local scrap yard.

  • Like
Reactions: martin-f

Titanium

AI6US
Lifetime Supporter
May 23, 2013
6,702
7,348
Meadow Vista, Northern California

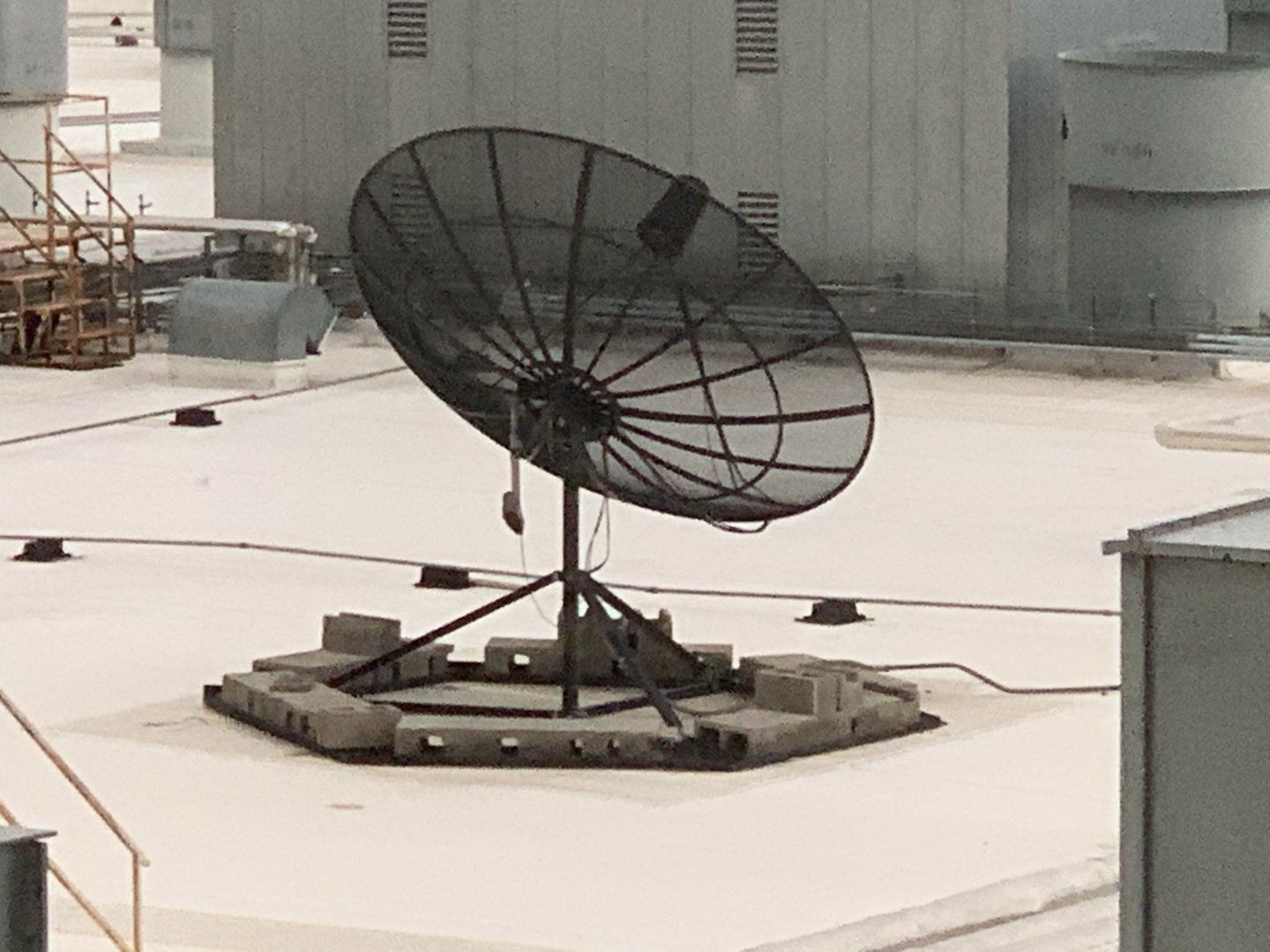

Here is a link to the NPRM install at the Ti shop. Added three safety chains tied into the rafters to minimize the chance of a fly-away, but it has never shifted even in heavy winds. Five years later and still tracking the arc.



cyberham

SatelliteGuys Pro
Jun 16, 2010
2,394
276
Halifax, Nova Scotia
Here is a link to the NPRM install at the Ti shop....
The only thing more beautiful than a 10-foot mesh is one on top of a roof in the clear able to see lower on the horizon.

I took one like that to the dump before my last move. I stupidly thought it would be too awkward to move cross country. When the 80-foot moving truck arrived, I realized my mistake.

Sent from my SM-G950W using the SatelliteGuys app!

Last edited:
  • Like
Reactions: martin-f

martin-f

SatelliteGuys Guru
Oct 16, 2017
149
164
uk

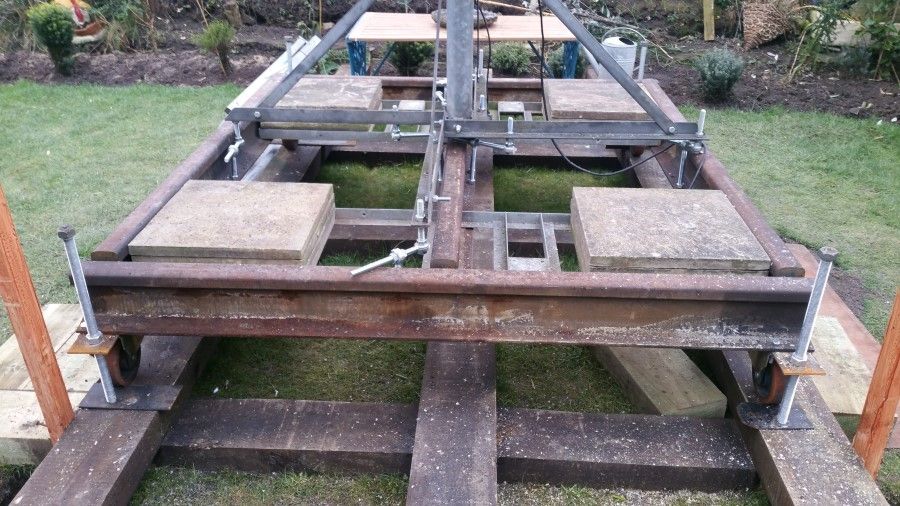

To get round planning permission here in the uk i built a mobile base out of rail track, i had a 2.3 DH sat on it in the picture below, its now been converted to a tilt over wind up movable base with a paraclipse sat on it.
