Fix Your OpenBox S-9 For 58 Cents

Discussion in 'Free To Air (FTA) Discussion' started by Pixl, Mar 10, 2012.

  1. Pixl

    Pixl Topic Starter Senior Member
    Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    1,890
    Likes Received:
    57
    Location:
    Traverse City, Michigan
    I’ve traced the problem of low LNB voltage that causes the S-9 to work for a while then drop off. There is a small part that looks like a disc capacitor near the tuner that actually is a PTC thermistor that goes bad.

    [​IMG]

    This part provides short circuit protection, but when bad it trips off at loading well under the max rating of 500ma. The two bad ones I have found so far are marked M60 065, W60 065.


    [​IMG]


    On my own OpenBox that is still working, this part is larger and is marked JK60 065. Digi-Key engineer crossed this to a “Little Fuse” brand part # F1990CT-ND.


    [​IMG]

    This part can be changed from the top side of the board. Just snip the old one off.


    [​IMG]


    Then tack solder the new one to the solder pads.


    [​IMG]

    I then tested the S-9 by operating into a variable power resistor.


    [​IMG]


    Ran it at 19v. @ 460ma. For two hours. The voltage and current held and the thermistor ran cool.

    [​IMG]


    http://search.digikey.com/us/en/products/60R065XPR/F1990CT-ND/2690458
    I ordered a few extra of these, I'll mail these out for free to people who actually have trouble with your lnb voltage. Just PM me with your request and address. Please not for "maybe I might need this" and set it on the shelf.


    Update: The part numbers in BOLD have been changed. Also the Digi-Key Link at the end has been updated

    Reason for edit: Pixl has been advised by another engineer that Digi-Key slightly over sized this part. The new part number is closer to the original specs.

    #1 Pixl, Mar 10, 2012
    Last edited by a moderator: Mar 30, 2012
    Cham likes this.
  2. *** WELCOME TO SATELLITEGUYS! ***
  3. KE4EST

    KE4EST SatelliteGuys Is My Second Home
    Staff Member HERE TO HELP YOU!

    Joined:
    Aug 9, 2004
    Posts:
    23,231
    Likes Received:
    3,649
    Location:
    Far West -- Western North Carolina
    I bet its the same but now I want to pop open my s10 again and see what the part number is on the one in it.

    Nice pics too....Thanks for the tutorial.

  4. chaskuchar

    chaskuchar SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 16, 2010
    Posts:
    779
    Likes Received:
    9
    Location:
    humphrey, nebraska
    great job. great repair information. thank you. charlie

  5. carlospr43

    carlospr43 SatelliteGuys Pro

    Joined:
    Mar 20, 2010
    Posts:
    967
    Likes Received:
    10
    Location:
    US
    Hey iceberg we need to post this somewhere:

    THE MEMO OF THE WEEK!!

    or Probably of the month.....

  6. xtgold

    xtgold SatelliteGuys Pro

    Joined:
    Nov 17, 2008
    Posts:
    1,109
    Likes Received:
    13
    Location:
    nutmeg state
    s10 is on the tuner module,W60 065 on mine

  7. xtgold

    xtgold SatelliteGuys Pro

    Joined:
    Nov 17, 2008
    Posts:
    1,109
    Likes Received:
    13
    Location:
    nutmeg state

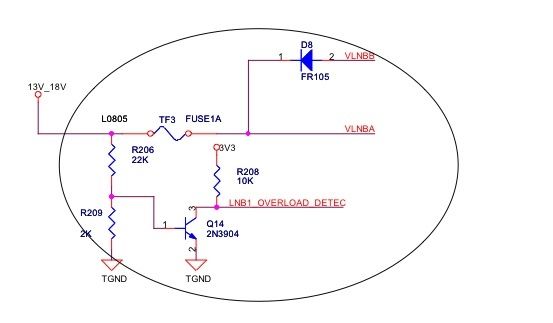

    overload

    a cut from the m3602 demo board schematic,I didn't circle it so it must be a sore spot even for that board.


    Attached Files:

  8. RT-Cat

    RT-Cat "My person-well trained"
    Pub Member / Supporter

    Joined:
    May 30, 2011
    Posts:
    1,617
    Likes Received:
    193
    Location:
    Cold, Cold,Michigan USA
    Sure is nice to have smart people here to help out the ones of us that are not......

    RT.

  9. kodaz

    kodaz SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Aug 22, 2010
    Posts:
    565
    Likes Received:
    28
    Location:
    North East PA
    I just ordered 2 of them based on your link.
    My openbox s9 sometimes just gives me a no signal message from a 75% Q and stable lnb.
    I am just going to change it out.
    Thank you so much for your insight on this.

    Kodaz

  10. Tron

    Tron SatelliteGuys Master

    Joined:
    May 6, 2005
    Posts:
    6,594
    Likes Received:
    17
    Location:
    Metro New Orleans, LA
    Great find Pixl! Do you think it is a quality control problem with the original part, or a problem with the engineering of the circuit in general?

  11. Pixl

    Pixl Topic Starter Senior Member
    Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    1,890
    Likes Received:
    57
    Location:
    Traverse City, Michigan
    It is thought that many of these boxes came from different mfg. in China. Some of those mfg. may have skimped on the specs. of these parts. The trouble some M60 is smaller than the JK60 that is still working in my OpenBox.

  12. Dishman Dan

    Dishman Dan SatelliteGuys Pro

    Joined:
    Jun 22, 2008
    Posts:
    1,549
    Likes Received:
    0
    Location:
    N/A
    It seems like it was only yesterday that you offered to fix them for free... now it's 58 cents!!!... :eek:

    Seriously a big thank you for all of your work! :bow

  13. Pixl

    Pixl Topic Starter Senior Member
    Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    1,890
    Likes Received:
    57
    Location:
    Traverse City, Michigan
    Ohh, you got me!

    Actually I am offering my left over parts for free. PM me with request and address.

  14. phlatwound

    phlatwound FTA Bumpkin
    Lifetime Supporter

    Joined:
    Dec 25, 2007
    Posts:
    3,164
    Likes Received:
    135
    Location:
    Hillbillistan, AKA god's country (37N, 93W)
    Super job there Pixl, very nice work.
    Hope I don't ever need to use this info on my 2 S9s, but it sure is nice knowing that there are people here on this forum with the knowledge, skills and willingness to figure stuff like this out. :hatsoff:

  15. woodheat/nooil

    woodheat/nooil SatelliteGuys Pro

    Joined:
    Dec 2, 2007
    Posts:
    347
    Likes Received:
    2
    Location:
    The third light from the bus stop
    Pixl, You just saved me from digging up the pipe that I thought was a bad RG-6 cable, (I ordered the part today). I replaced a diseq switch then a 22KHz switch & all connectors. Funny thing is that the line going to the C-band dish does not drop out? But the one to the KU dish will run for a few minutes then no signal then it might come back in. Voltage was 12v on vertical & 17v on horizontal. Thanks again.

    #14 woodheat/nooil, Mar 11, 2012
    Last edited: Mar 11, 2012
  16. rrob311

    rrob311 SatelliteGuys Pro

    Joined:
    Nov 25, 2010
    Posts:
    940
    Likes Received:
    16
    Location:
    New England
    That is awesome hopefully that is the weak link and the box doesn't have more common problems.

  17. PopcornNMore

    PopcornNMore SatelliteGuys Pro

    Joined:
    Mar 20, 2005
    Posts:
    3,631
    Likes Received:
    117
    Location:
    Gibsonia, PA
    Excellent work Pixl!

  18. Pixl

    Pixl Topic Starter Senior Member
    Pub Member / Supporter

    Joined:
    Feb 27, 2010
    Posts:
    1,890
    Likes Received:
    57
    Location:
    Traverse City, Michigan
    Thanks popcorn,

    I should have posted earlier that anyone who wants to re-post this information or photos may do so, a credit to Jim Sofonia is requested. Thank you.

    #17 Pixl, Mar 11, 2012
    Last edited: Mar 11, 2012
  19. RT-Cat

    RT-Cat "My person-well trained"
    Pub Member / Supporter

    Joined:
    May 30, 2011
    Posts:
    1,617
    Likes Received:
    193
    Location:
    Cold, Cold,Michigan USA
    One of the mods should put this in a sticky!

    RT.

  20. Babadem

    Babadem SatelliteGuys Pro

    Joined:
    May 21, 2007
    Posts:
    2,243
    Likes Received:
    134
    Location:
    MA
    That's what the seller said was broken on my S10. They fixed and sent it back to me.

  21. xtgold

    xtgold SatelliteGuys Pro

    Joined:
    Nov 17, 2008
    Posts:
    1,109
    Likes Received:
    13
    Location:
    nutmeg state
    I will look at my collection of old receivers to see if they used a similar part,to salvage.




***
