Four degree spacing?

Discussion in 'Free To Air (FTA) Discussion' started by kittyhas1000legs, Feb 13, 2018.

  1. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
    I've temporarily set aside the motor on my 90cm GeosatPro dish, since the balcony is tilted and I can't get shims under the NPRM nicely to keep the pole plumb. I switched back to a multi-LNBF setup with 103/97/91, which works well. Six-degree spacing is as close as I can get with the Maverick and GeosatPro LNBF's I have right now (they're touching each other and physically can't get closer). I'd like to try for four-degree spacing, hopefully 103/99/95/91. There don't seem to be too many LNBF's that would allow for this. I know SatelliteAV has their bullet LNB, but I'm not about to pony up $45ish per LNB.

    What would be a relatively reliable way to get four-degree spacing on a 90cm dish? I recall seeing threads years ago on here of people cutting away some of two LNBs and gluing them together, but I'm not sure about going that route. Murphy's Law seems to follow me around... Has anyone tried out one of these guys? Would it give enough gain to be fairly reliable on US birds? Maybe a couple carefully-placed World Direct LNBFs?

    [​IMG]
    [​IMG]

    #1 kittyhas1000legs, Feb 13, 2018
    Last edited: Feb 13, 2018
  2. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    708
    Likes Received:
    732
    Location:
    Riga

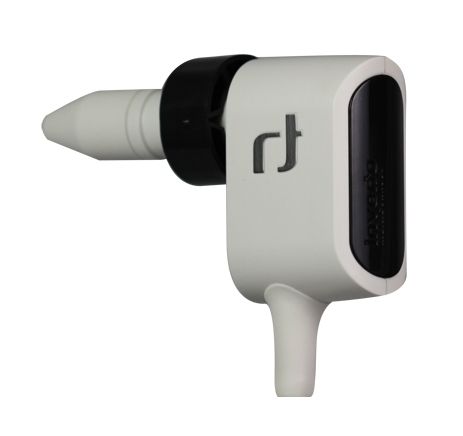

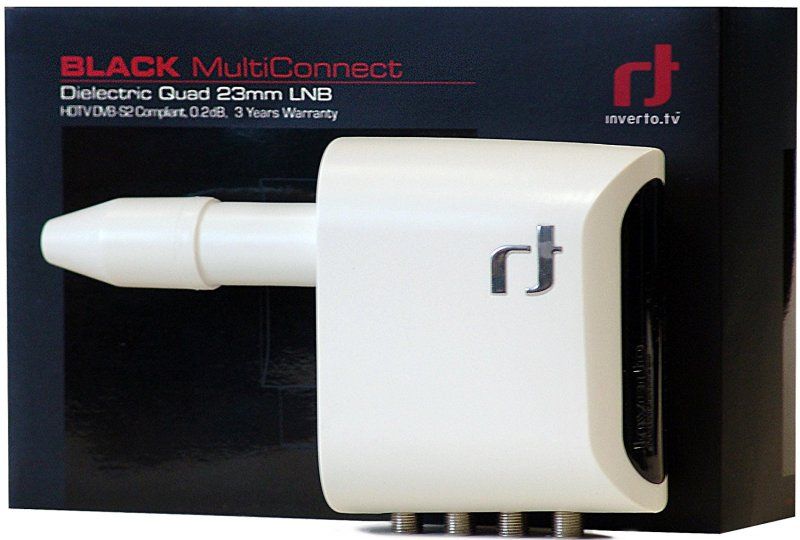

    I have used Inverto Black Multiconnect LNBFs for long time, and on Toroidal dish easily got spacing of 2*. 81JYor2aPqL._SL1500_.jpg I have 3 Quad LNBFs. If you are interested I could offer you a deal.

    KE4EST likes this.
  3. Wescopc/KI7OZM

    Wescopc/KI7OZM SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Sep 11, 2005
    Posts:
    1,777
    Likes Received:
    69
    Location:
    Canby, Oregon
  4. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
  5. bpalone

    bpalone SatelliteGuys Pro
    Pub Member / Supporter

    Joined:
    Apr 1, 2014
    Posts:
    619
    Likes Received:
    409
    Location:
    44N 105W
    Not exactly what you are asking for, but have you thought about trying to attach leveling legs to your NPRM? Was thinking of something like you find on appliances, where you can adjust to level them up on an uneven floor. You would have to fabricate something to achieve the same result. Would allow you to keep your motor. Just a thought. I enjoy seeing peoples experiences experimenting, always pick up a bit of wisdom from them.

    Good luck with which ever way you go with it.

  6. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    708
    Likes Received:
    732
    Location:
    Riga

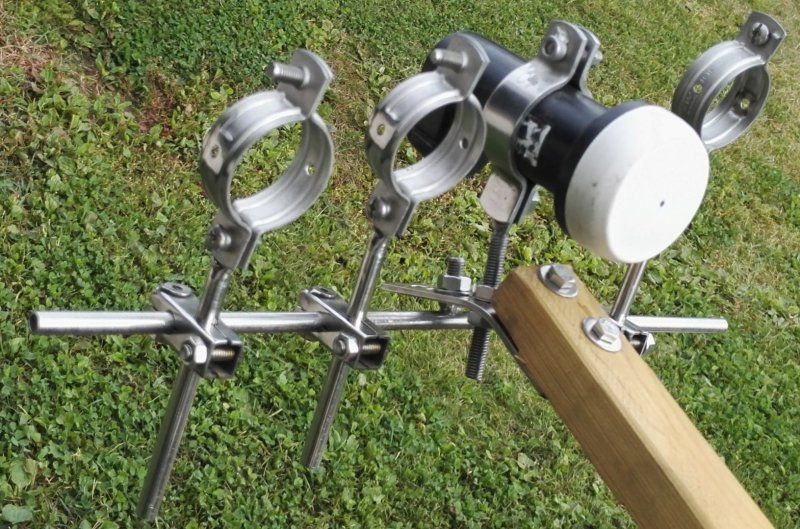

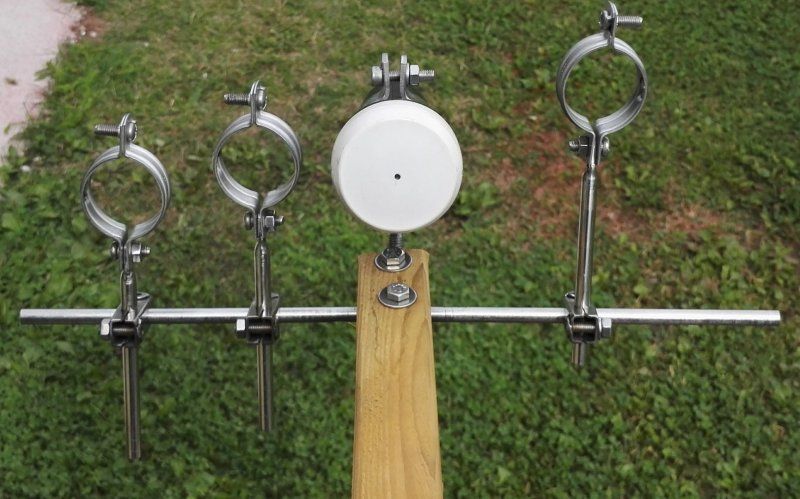

    I was thinking a lot about building multifeeds and finally come to the solution as on the attached pictures. It is not so difficult to fabricate and allows to fine-tune each LNB independently. Also, depending on the clamp used any LNBF can be used (neck size 23mm-40mm-65mm). IMG_20170827_121502 (Large).jpg IMG_20170827_121526 (Large).jpg

    Borisov-54 and kittyhas1000legs like this.
  7. Martyn

    Martyn SatelliteGuys Pro

    Joined:
    Sep 25, 2005
    Posts:
    559
    Likes Received:
    177
    Location:
    Concord, CA
    What clamp and metal brackets are those? I was looking around in Home Depot for something similar and never found it. I was probably in the wrong department.

  8. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    708
    Likes Received:
    732
    Location:
    Riga

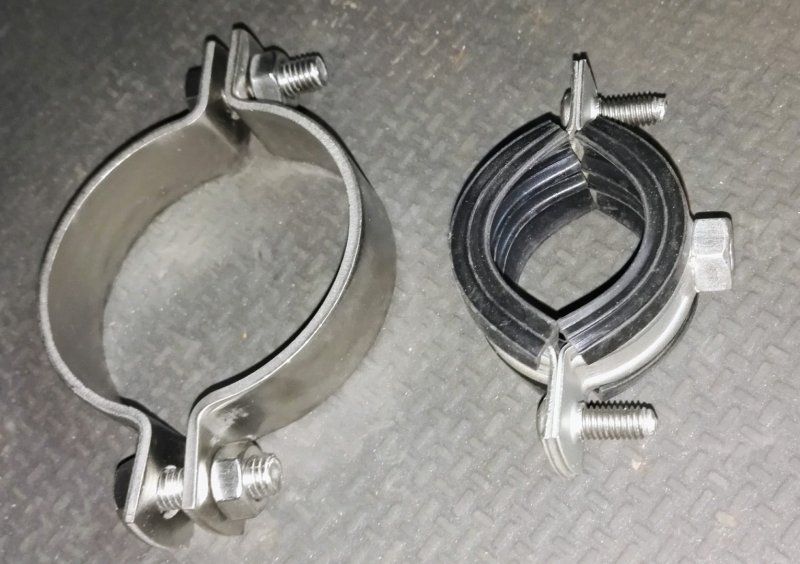

    All INOX. Look for pipe-clamps. IMG_20180214_191314 (Large).jpg I only use brass nuts to prevent possible sieze between nut&bolt.

  9. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,674
    Likes Received:
    803
    Location:
    85w
    Look at my setup for example kitty. I have 2 to 4 degree separation.

  10. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
    Many thanks to RimaNTSS! I now have one Geosatpro PLL LNBF and two Inverto Quads set up for 103, 95, and 91. The 95 is slightly misaligned, so it also gets a few channels from 97w, including Press TV which isnice since I'ma bit of a news Junkie.

    Now I need to fabricate some better LNB holders so I can squeeze in another LNBF or two... that, and take some photos.

  11. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,674
    Likes Received:
    803
    Location:
    85w
    Kitty do you have a true value hardware store nearby? They have the parts you need for dirt cheap.

  12. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
    I just need to figure out exactly which parts to use. There are a few True Value, Ace, Lowes, and Home Depot all within 5 miles or so.

  13. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
    Here's the current setup. In a couple days I'll have time to stop at a hardware store and futz with things.

    P3051958.JPG P3051960.JPG

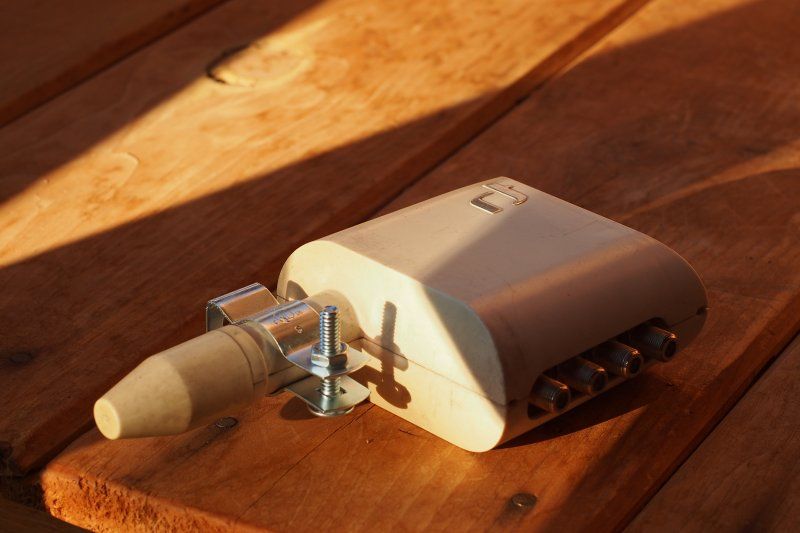

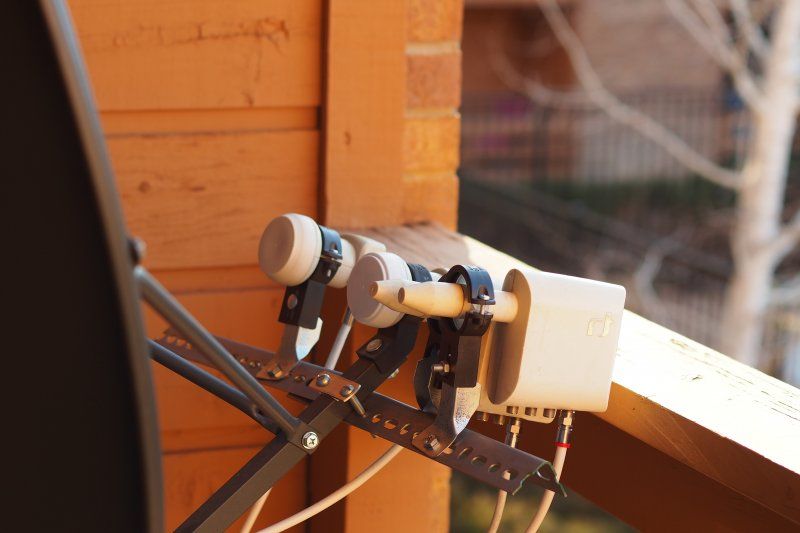

    Centered LNBF is on 103W. The Quattros are on 91W and 95/97. The second shot shows that while it's possible with "standard" LNB holders, it would be easier to fine-tune if I fabricate something. The far-off LNB will hopefully be 113W at some point (ten degrees off of center vs. twelve for 91W, but haven't quite gotten it yet.)

    a 3/4" EMT hanger will fit the Inverto quads perfectly and may be usable.

    danristheman and RimaNTSS like this.
  14. RimaNTSS

    RimaNTSS SatelliteGuys Pro

    Joined:
    Aug 9, 2013
    Posts:
    708
    Likes Received:
    732
    Location:
    Riga
    Yes, you definitely need to work around proper holders.
    Did you mean Quads? ;)

    kittyhas1000legs likes this.
  15. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,674
    Likes Received:
    803
    Location:
    85w
    I use the same holders on my setup they work just fine. They hold up in the weather.

  16. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO

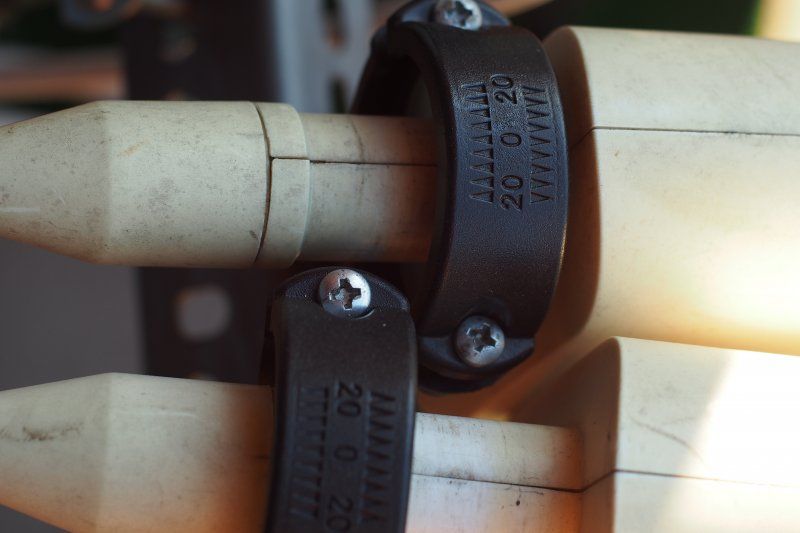

    I have to get a couple more pieces, but things are working well so far. The bodies on the quads are still a little wide, but nothing that can't be dealt with.

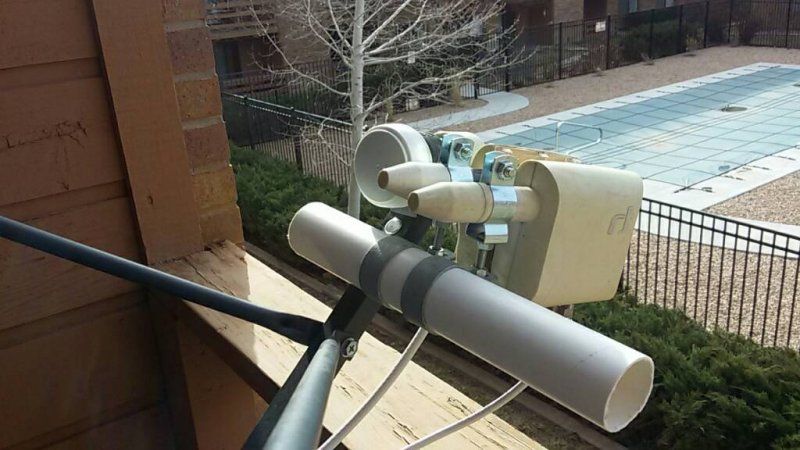

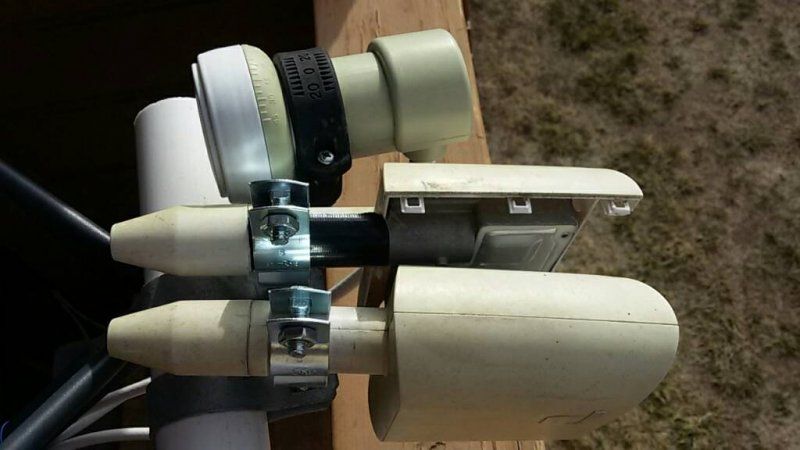

    20180320_093938.jpeg 20180320_093930.jpeg

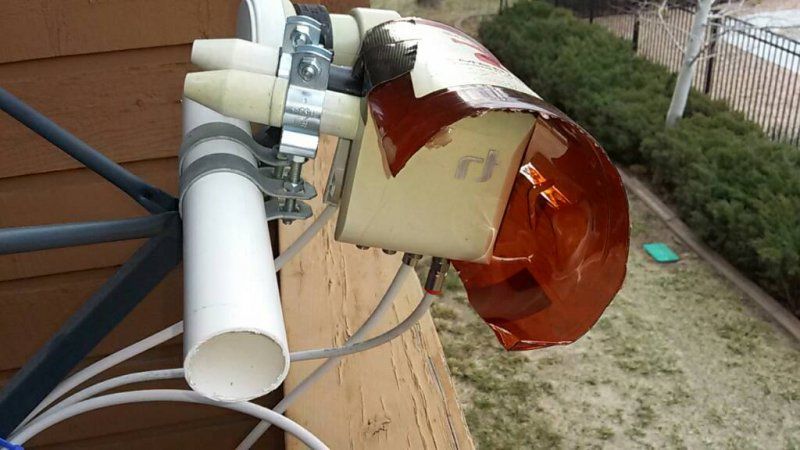

    One more stop at the store and I'll have 103/99/95/91 on a 90cm. Forecast mentioned possible light rain, so I have a temporary rain cover on it until I can add the last lnb. I think my redneck is showing.


  17. comfortably_numb

    comfortably_numb Dogs have owners, cats have staff
    Pub Member / Supporter

    Joined:
    Nov 30, 2011
    Posts:
    4,286
    Likes Received:
    3,644
    Location:
    Missouri/Kansas
    Are you combining the LNB's with a switch or running separate feeds to separate tuners?

  18. kittyhas1000legs

    kittyhas1000legs Topic Starter That's a lot of claws!
    Pub Member / Supporter

    Joined:
    Aug 8, 2012
    Posts:
    1,385
    Likes Received:
    777
    Location:
    Western Slope, CO
    Right now they're on a 4x1 multiswitch to a receiver, with a DVB-S2 card slaved. I might change it at some point, but it's not easy running the wires in my apartment.

  19. danristheman

    danristheman SatelliteGuys Pro

    Joined:
    Jan 25, 2011
    Posts:
    2,674
    Likes Received:
    803
    Location:
    85w
    Welcome to club with PVC pipe with threaded rods and clamps they hold up a lot better in the harsh weather than plastic holders.

  20. Borisov-54

    Borisov-54 SatelliteGuys Guru

    Joined:
    Jan 4, 2013
    Posts:
    146
    Likes Received:
    85
    Location:
    Minsk Belarus
    You can easily do it for you. Nothing complicated
    It depends on what antenna and fastener to LNB.

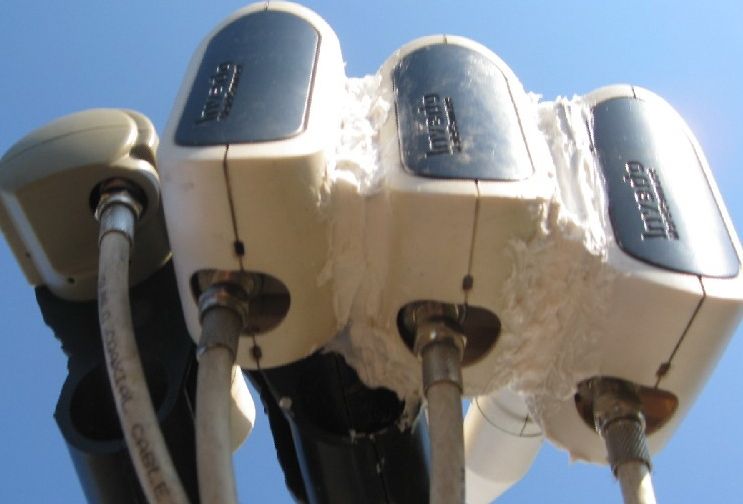

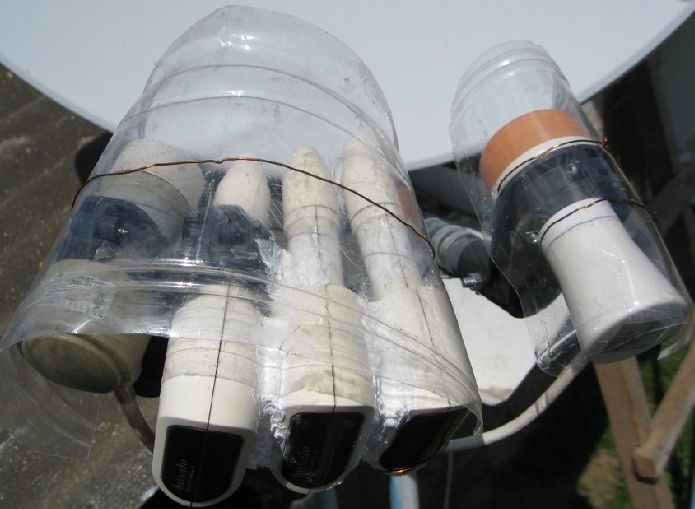

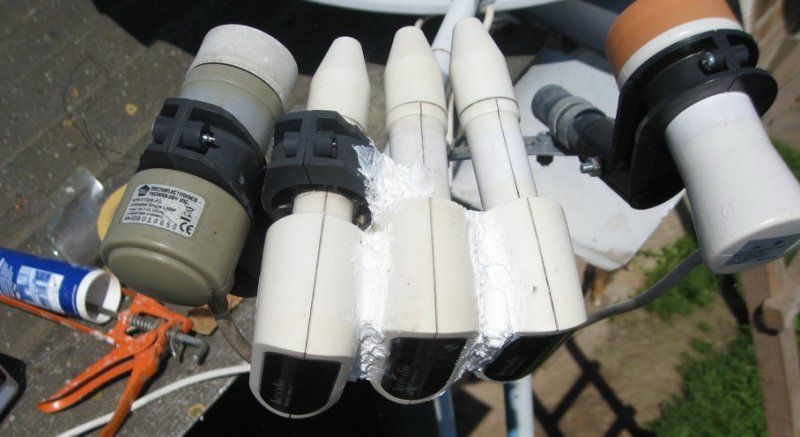

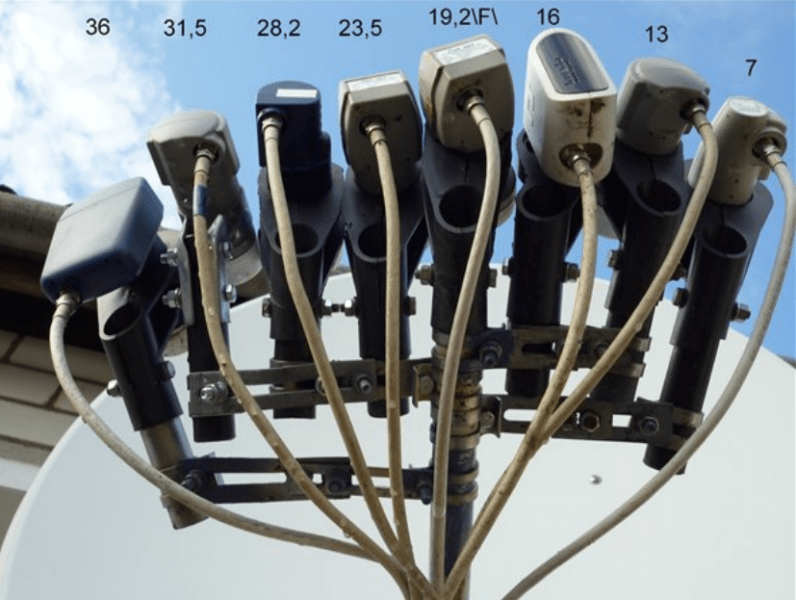

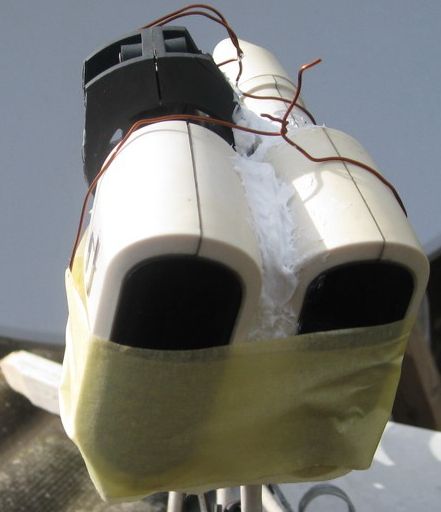

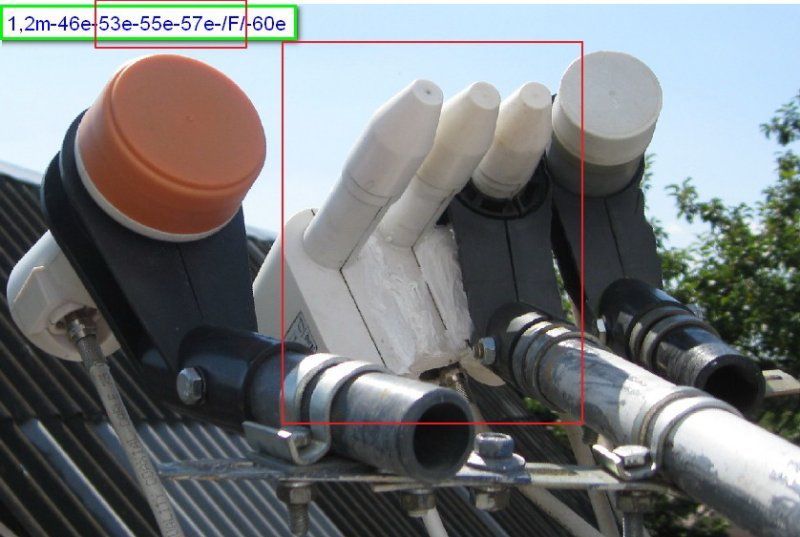

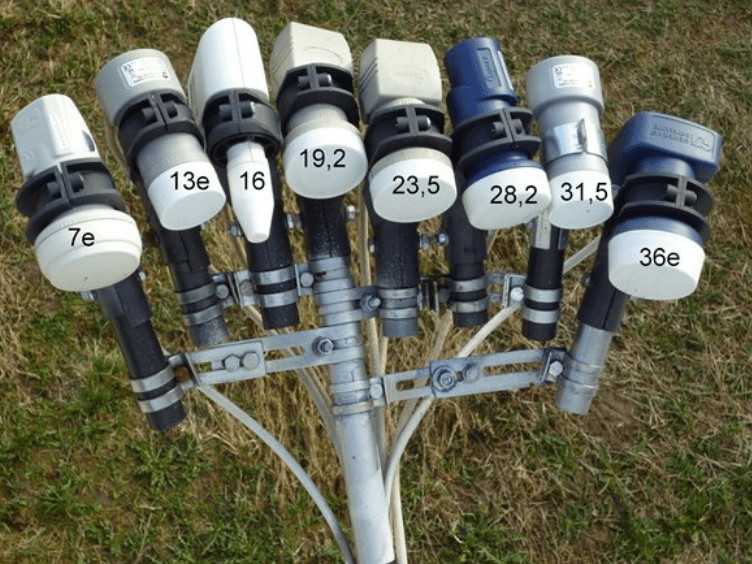

    In one photo I had 2 degrees for 3 satellites, an antenna of 1.2 m
