Hey that does look like mine ,dont happen to have any more papers?
1. What years were these made? im gonna say 85-95.\ 2. Is this dish bigger then 10 foot? 3. Whats all up there for free? 4. Anything Still on analog? 5. How hard are big dishes to tune can you point it south and expect to hit something?

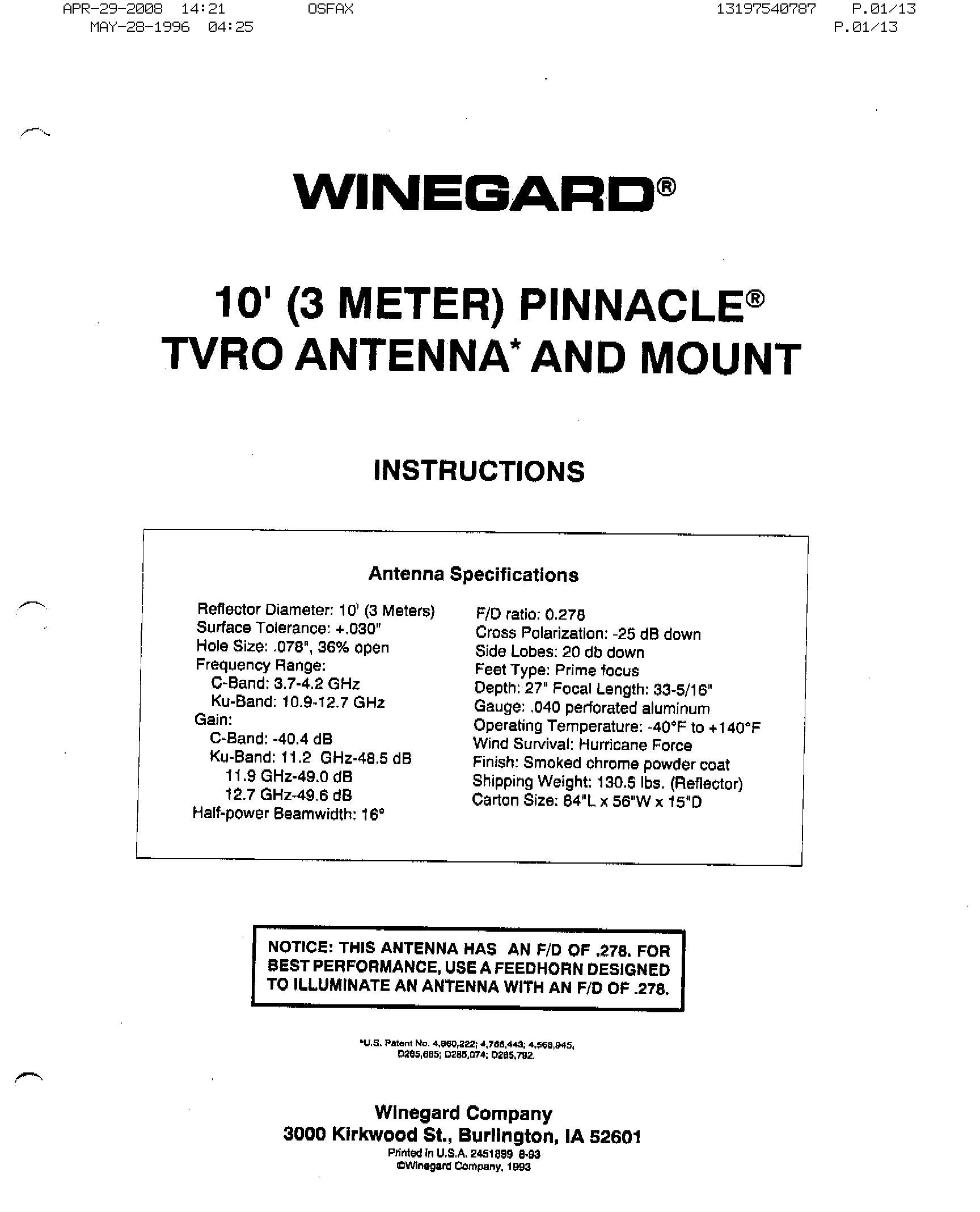

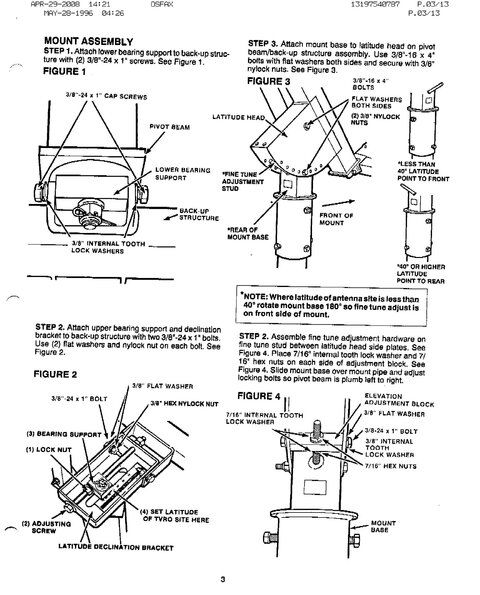

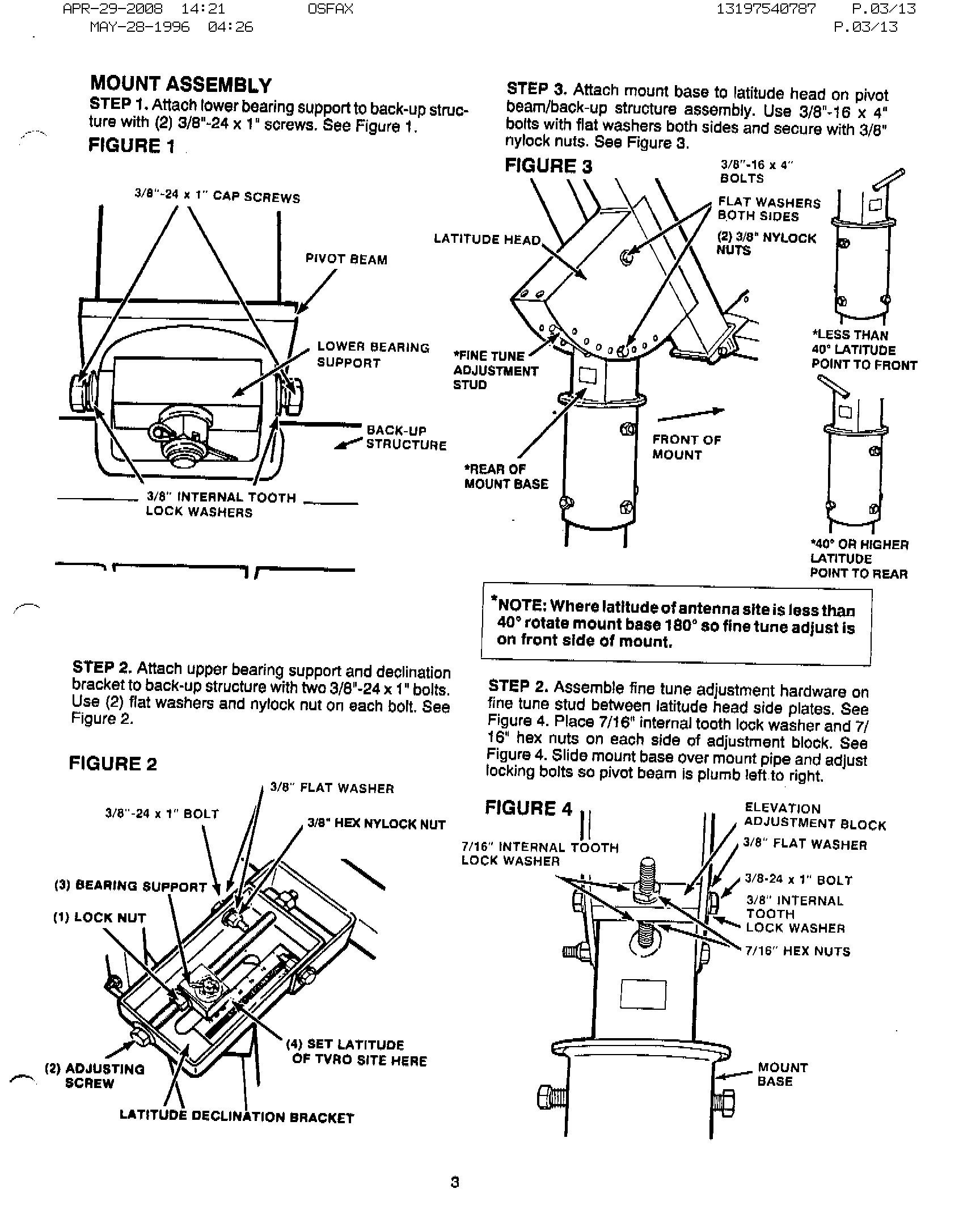

There are 13 pages to that manual. Probably on the next update to the manual section, all 13 pages will be there. If I had High speed internet, I could email it all to you now, but it takes about 45 minutes on dial up.
I just took down a 10' Unimesh and am in the process of setting it up at my house. If you don't have C-band already, I'd say jump on it. I took the Unimesh down in about an hour or so. I've probably got 8 or 10 hours into refurbishing and reassembly so far, but I think it's going to be well worth it. Take a look at my thread for more info my experience.
