Need SatelliteGuys Assistance for C-band Feedhorn Alignment Tool Project

Status
Please reply by conversation.

Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
6,932
7,707
Meadow Vista, Northern California
Would you please help me on a project by providing an exact measurement of the inside diameter of your C-band or combined C/KU feedhorn?

1. What Brand and Model?
2. What is the inside diameter measurement at the entrance?
3. What is the depth of the feedhorn before the dielectric guides or other mechanics (probe, waveguide, etc.)?
4. Is the inside diameter of the feedhorn tapered or consistent size diameter?
5. If tapered, what is the diameter measured at 2 inches back from the feedhorn entrance.
6. A photo of the feedhorn entrance would be great, but not necessary.

I am manufacturing a new laser alignment tool for installing and centering a feedhorn on a satellite dish. Want to make sure that it will be an exact fit on as many types and models of C and combined C/KU band feedhorns as possible. While I have about a dozen feedhorns and LNBFs, I know that there are many more that I do not have access to. This is where I need your help.

Installing a feedhorn or LNBF so it is aimed to the exact center of the dish is critical to the optimization of a satellite system. Some of us are fortunate to own alignment tools from the early years of BUD installation, while others have used torpedo laser levels to estimate this alignment. My goal for this project is to produce an inexpensive and robust alignment tool that we can carry around in our tool kit for those occasional feedhorn installs. Visualize a hockey puck shape with a lip and a precisely centered laser pointer.

Thanks for your assistance!


phlatwound

SatelliteGuys Pro
Lifetime Supporter
Dec 25, 2007
3,248
203
Goosapeak Junction
Great product idea, Brian.

I have Geosat C2s on my 2 in-service BUDs, (and a couple of Chap co-rotors on the shelf) I bet you already have measurements for those.


Hockeynut

SatelliteGuys Pro
Mar 13, 2010
848
696
Sat Farm in NC.
Here is the dimensions for a Chaparral corotor C/Ku feed
Front entrance of feed throat is 2.430"
2 inch`s back is 2.410" = .28648 deg per side 0.17'11"
The 2" dim was taken just using calipers on the outside diameter then subtracting the wall thickness.I have telescoping gages at work and can bring home to check but we are dealing with a casting so calipers should be close enough.

This is a great idea Titanium and have designed my own and I will share with you in an email.The biggest obstacle I see is a laser made that will work for various feeds and it being self centered..Obviously different feeds will have varying taper and diameter.

Last edited:

. Raine

SatelliteGuys Pro
Pub Member / Supporter
Aug 6, 2013
2,689
945
North America, CT.
Excellent idea, Brian. I have a Chaparral dual ortho, a Chaparral single and a National ADL single feed that I can measure for you. It's pouring rain and supposed to rain for the next few days, but when the rain stops I'll get outside and measure them.


kodaz

SatelliteGuys Pro
Pub Member / Supporter
Aug 22, 2010
578
31
North East PA
model b1 sat stack made in china , shipped to brazil, go figure.
2.42" id at opening. 2.4" id 2 inches back. lnb has walls that are about 1/16th" thick
probes are 3.25" down from opening. the lnb does not go far enough thru my beta 9 scalar without scalar mod.

next is
bsc 421 from dms international?? words are worn off
2.56 id at opening. 2.54" at 2" in consider this one ballpark as the lnb is bent. first probe is 4 1/8" down from opening and second is 5.5". its very thin walled.


anything more, just ask.

Last edited:

Joe DC

SatelliteGuys Family
Aug 19, 2011
103
6
Cana,Va
Great product idea! Would have saved me a bunch of aggravation at my feeble attempt.

DMX741 Entrance ID: 63-64mm = same 2"(50mm) back
Taper begins approx 80 mm from entrance.

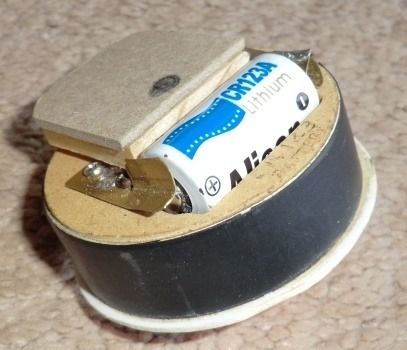

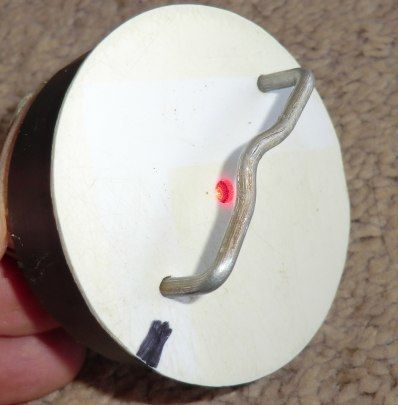

You would think the LNB's would be the same entrance ID following waveguide formulas for 3.95 Ghz. lnb tool back.jpg LNB tool front.jpg


Lone Gunman

SatelliteGuys Pro
Mar 19, 2010
3,004
720
southeast
DMX-741, which "should" be the same as a BSC-621?

Entrance ID 2.475 - 2.510 and 2" in it's 2.455 - 2.466 so it's not round and it's tapered.

The guides for the dielectric plate start .950 from the entrance and they are raised about .020.

Have you considered using something mounted to the scaler ring instead of the inside of the LNBF?


Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
6,932
7,707
Meadow Vista, Northern California
Mounting the laser unit on the scalar would not provide the critical feedhorn alignment. The laser unit would likely be provided with an adapter sleeve so it could be also secured in the scalar mount.

The scalar would first be set for correct positioning. Once the scalar is positioned and secured the feedhorn would be installed into the scalar and the laser then placed inside the feedhorn for centering.

The laser will be centered and factory calibrated in the insert. Also will feature beam adjustment screws to allow an advanced user to recalibrate (or mess-up) the X and Y axis. :D


Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
6,932
7,707
Meadow Vista, Northern California

sgs

SatelliteGuys Pro
Sep 27, 2012
226
46
Southwestern Ontario
I've got a couple of ideas... I'll throw them out now while you're still considering the design of your product...

An idea: Maybe you could include some adapter "rings" that screw on/attach to the outside of the "puck", so the user could have an exact fit for the system being aligned. Certain rings could be tapered if required; perhaps also labelled with the size, or an easy way to identify each of them... or include a chart so the user can see what size they should use for the particular LNB/LNBF/feedhorn they are aligning. Maybe the rings could be sold together or separate from the puck (since some people would only want it for a few LNBFs, others might want it to do installs and be able to put it on anything).

Another idea: I don't know if there would be a market for it, but if the back-side of the puck had an appropriate hole/adapter, along with some "inner rings" to adjust for various LNBFs, the same puck could be used to put over the front of KU LNBFs for smaller dishes. It might then help with alignment of some KU dishes too.

Hmmm, that second idea might not work so well with offset dishes, at least not without some supporting documentation. Heck, you could include a bunch of cheap half inch mirrors with it, to tape to an offset dish for alignment support. With documentation of common offset dish types and their "center point" measurements where the alignment tool should point, it might be useful for KU LNBFs / small dish setups... dunno, just spit-balling here. :)

Oh, and if you are going to allow x-axis / y-axis adjustments, it would be awesome if there was a simple tool that you could attach to the puck to make sure that the system is aligned. I'm thinking of something like a yard stick that has the puck screw into on one end, and a "target" on the other end. All very precise and accurate, of course!

sgs

Last edited:

. Raine

SatelliteGuys Pro
Pub Member / Supporter
Aug 6, 2013
2,689
945
North America, CT.
My Chaparral dual ortho ID is 2 8/32'' at the feed entrance and the same all the way down. At 2 15/16'' down the throat a plastic rod sticks out.

The Chaparral single, C only, polarotor-servo type feed has an ID at the throat entrance of 2 9/32, at 1 1/2'' down it steps down to 2 6/32. The depth to the probe is 3 7/8''.

The National ADL single, C only, polarotor-servo type feed has a ID at the entrance of 2 14/32'', at 3/4'' down it steps out into the throat 1/16'' and then at 1 1/2'' down it steps out 2/16''. The depth to the probe is 2 7/8''.

None of my feeds have any model # on them that I could find, but I'll try to find the time to add some pictures later.

Could you maybe make this slip over the outside of the feed the way the blue plastic covers do? The OD on all my feeds are slightly different in size but the plastic covers I have all interchange and stay on good.

Last edited:

mmewrench

SatelliteGuys Pro
Dec 8, 2005
337
43
SE Michigan

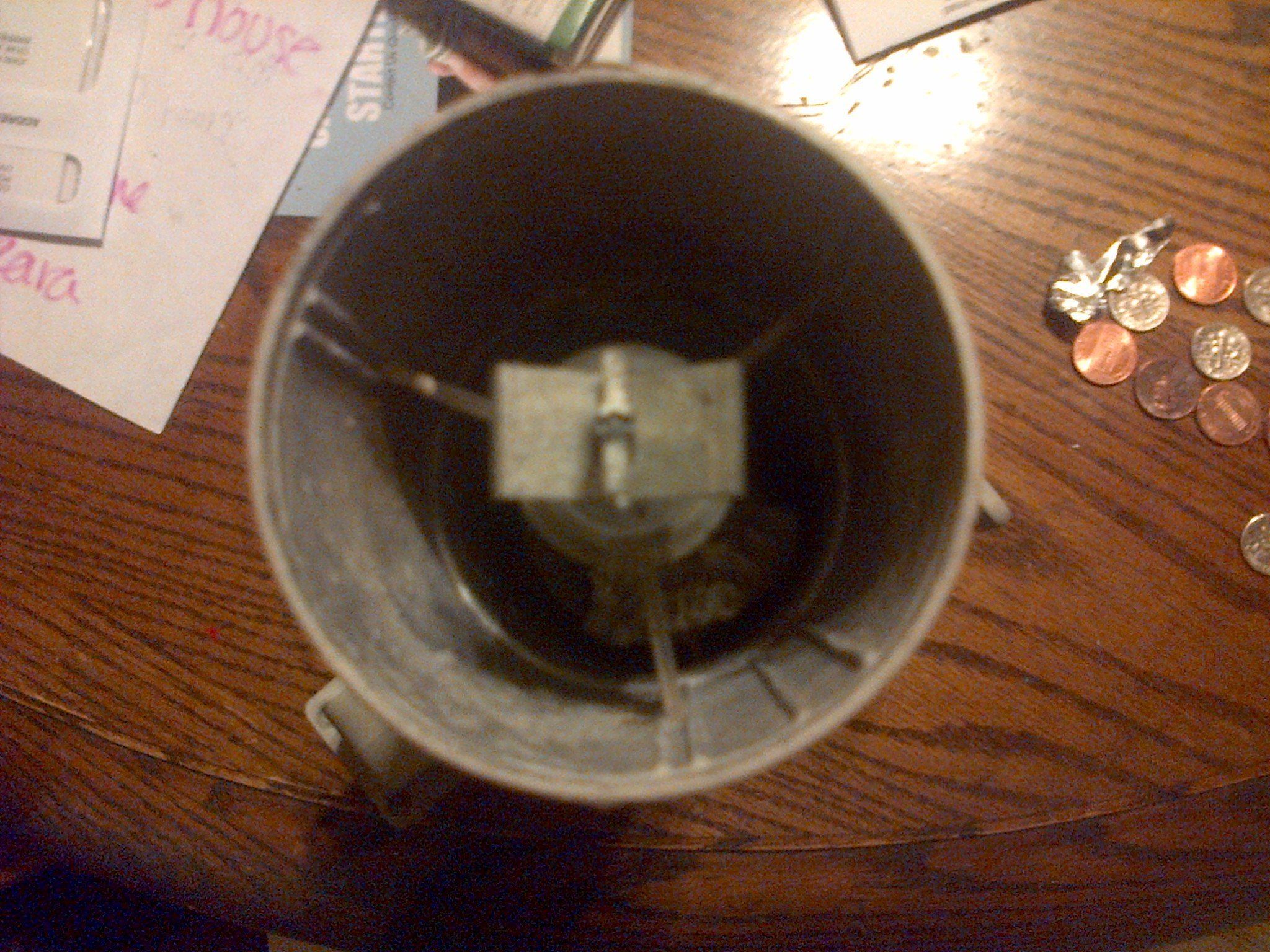

I have to agree with A raine. I have a few chaparral feedhorns here, and some of them have a raised areas on the inside of the feedhorn. Also The C band probe on all versions of the corotor (not wideband), extends almost to the end of the feedhorn. See attached pic. verical polarity 001.jpg


wen

SatelliteGuys Family
May 25, 2007
67
1
I have a couple of Chaparral feeds and they all seem to fit the blue plastic cover quite nicely. It is approx 2 5/8 inches in diameter and goes on 7/8 of an inch. They position quite accurately for locating the boresight of the LNB and hold tightly to the outside of the LNB with 8 plastic molded nibs that are approx .010 in height. A 3 inch hose clamp could be used to absolutely prevent any movement, but would not be needed if the green laser source and optics are lightweight. The green lasers can be seen in the daytime and can be left on for long periods of time if they are designed for that service. They probably have to be individually aimed/calibrated, but that probably could be done by the end user by rotating the device on a test mandrel. You should be able to find the center of the dish within 0.1 inch with a little care. Get a photo of the end of a co-rotor that is a little more in focus and you can see the complexity of making a tool to fit inside the feedhorn.

I want one!!!


Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
6,932
7,707
Meadow Vista, Northern California
I have to agree with A raine. I have a few chaparral feedhorns here, and some of them have a raised areas on the inside of the feedhorn. Also The C band probe on all versions of the corotor (not wideband), extends almost to the end of the feedhorn. See attached pic. View attachment 94558
What is the depth of the probe measured from the lip of the feedhorn? I need to dig one out of the shed, but I thought that it was at least 1 1/2".

In consideration of a cap mount design rather than an insert type, could everyone also post the OD (outside diameter) of the feedhorns? I know that some of the LNBFs have a ridged lip, that could throw a curve ball at this approach. :)


mmewrench

SatelliteGuys Pro
Dec 8, 2005
337
43
SE Michigan
The tip of the probe is just about flush with the end. You could counterbore your mandrel a minimum of 1.25" dia. for clearance, but you would still have to deal with those ribs inside the feedhorn.

All of my Chaparral feedhorns have an OD of 2 5/8 ". I have an old ADL feedhorn which is also 2 5/8 OD, and a DMS bsc 621 which also has that same OD.

Last edited:

Joe DC

SatelliteGuys Family
Aug 19, 2011
103
6
Cana,Va
A design idea might be to have the laser diode/battery in the body of the "puck" outside of the feedhorn but have a hollow 3 point spring loaded or turn screw cam type grabber on the inside of the feedhorn that holds the puck centered securely? THis would accomadate the various ID's without the need for fitted rings or obstructions in the mouth of the feedhorn or even taper issues. Just a thought.


. Raine

SatelliteGuys Pro
Pub Member / Supporter
Aug 6, 2013
2,689
945
North America, CT.
I was wrong about the OD being the same on all my feeds: The ADL's OD is 2-7/8'' and both of the Chaparral's are 2-5/8''. The blue cover from the Chaps don't fit the ADL.


Titanium

Thread Starter
AI6US
Lifetime Supporter
May 23, 2013
6,932
7,707
Meadow Vista, Northern California
To recap the thread so far:

1. The laser unit should slip over the feedhorn rather than fitting into the throat. The lightweight electronics will not be recessed into the throat, but rather in front of the feedhorn opening.

2. The maximum OD at the feedhorn lip is 2 7/8" the minimum OD is ______???

3. The maximum ID at the feedhorn lip is 2.56" minimum is 2.25". This would only be considered if the laser unit was to be recessed into the feedhorn throat.

4. The laser unit would be provided with an adapter bushing ring to fit into the scalar mount for centering the scalar onto the reflector. The laser unit would be used in conjunction with comparing opposing distance measurements taken from the dish rim to the center of the feedhorn. The purpose is not to tip the scalar, but instead mechanically center then use the laser to assure that the scalar is parallel and aimed into the center of the reflector.

It appears that the Chaparral Dual Ortho feed has the smallest ID measurement at 2.25. What is the OD measurement of the Chaparral Dual Ortho taken at the entrance? It seems like it would be much smaller OD than other feedhorns.

I am thinking that the laser unit might sit into the throat slightly (.25") or should it be flush?

To facilitate the different outside diameters on various feedhorns, would it be suitable for users to position the laser unit over the feedhorn then clamp onto the feedhorn using a thumb screw set from the front? Example: The laser alignment unit would be pressed flat against feedhorn rim then the clamp would be gently tightened to secure the laser unit in place so it would not slip off of the feedhorn. After the the alignment is complete, the clamp is loosened to allow the laser unit to slip off of the feedhorn. Like wise, the laser unit could be clamped onto a bushing that is then pressed flat against the scalar ring and secured using the scalar screw(s).

Of course we will affix the warning stickers about not doing stupid stuff with a laser... :D
