Edision OS MIO 4K+ and Stab HH90 (1 Viewer)

Register Today to see less ads! It's Free!

rocksahead

Well-Known SatelliteGuys Member
Dec 9, 2005
27
1
6 years ago I moved and gave up my 10' dish setup, which included a 4DTV and a Prof-8000 et.al.

I now have a southern exposure and picked up a 90cm GeoSat Pro. The HH90 does not respond to the USAL commands form the MIO 4K+. Is it possible that the MIO 4K+ doesn't support the Stab HH90 USALS, and I need to use a diseqc? I will need to order a diseqc to use if that is the case. Or is it something else, like a DOA HH90?

Thanks

Register Today to see less ads! It's Free!

FTA4PA

Satellite Guys Family
Lifetime Supporter
Nov 13, 2013
5,294
3,139
Central Pennsylvania
6 years ago I moved and gave up my 10' dish setup, which included a 4DTV and a Prof-8000 et.al.

I now have a southern exposure and picked up a 90cm GeoSat Pro. The HH90 does not respond to the USAL commands form the MIO 4K+. Is it possible that the MIO 4K+ doesn't support the Stab HH90 USALS, and I need to use a diseqc? I will need to order a diseqc to use if that is the case. Or is it something else, like a DOA HH90?

Thanks
I have a MIO 4K+ and it controls my 90cm Fortec Star with a Stab HH100 properly. Also using it for a 10 foot SAMI with Diseqc commands.


Titanium

AI6US
Lifetime Supporter
May 23, 2013
7,314
8,367
Meadow Vista, Northern California
OS Mio 4k supports USALS and STAB motors. What image are you running?

Would be helpful to see the menu settings. Please attach two screen shots of the tuner set-up menu for the satellite tuner and motor settings.


Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,385
956
Boonies
My MIO 4K (not the "+") runs an HH120 Stab motor, think it would work the same as an HH90 except slower. Make sure you set up your USALS (your coordinates for your spot on the planet) so it knows where to point relative to your dish antenna location. Think you need a minus "-" for western hemisphere longitudes.
I think on mine I had to set up "my" USALS position for each satellite that used USALS (the stab HH120).

As Brian requested above it would be helpful to see your setup screen for that satellite, or any satellite that is set up to use the HH90 motor. Keep in mind though maybe don't include your exact coordinates if you post to the forum unless you want us all to know exactly where you are... :)


rocksahead

Well-Known SatelliteGuys Member
Dec 9, 2005
27
1
Thanks.
My MIO 4K (not the "+") runs an HH120 Stab motor, think it would work the same as an HH90 except slower. Make sure you set up your USALS (your coordinates for your spot on the planet) so it knows where to point relative to your dish antenna location. Think you need a minus "-" for western hemisphere longitudes.
I think on mine I had to set up "my" USALS position for each satellite that used USALS (the stab HH120).

As Brian requested above it would be helpful to see your setup screen for that satellite, or any satellite that is set up to use the HH90 motor. Keep in mind though maybe don't include your exact coordinates if you post to the forum unless you want us all to know exactly where you are... :)

How do I enter a “-“ sign in the longitude field instead of the leading zero?


rocksahead

Well-Known SatelliteGuys Member
Dec 9, 2005
27
1
What image? Screen shots?

TNAP USALS location entry does not use a negative numerical entry. Enter your install location's latitude and select North then longitude and select West.

I entered the USALS entries into TSReader as well with the same results when using the the TBS5520. The cable run is less than 25 feet. The cable is the same cable that was used in the same location for a Directv install. I am exchanging the HH90 unless someone points out something obvious. It bothers me 'cause I have been doing electronics as toys for more than 40 years, and my experience tells me that stuff is almost never DOA.

Thanks


Attachments

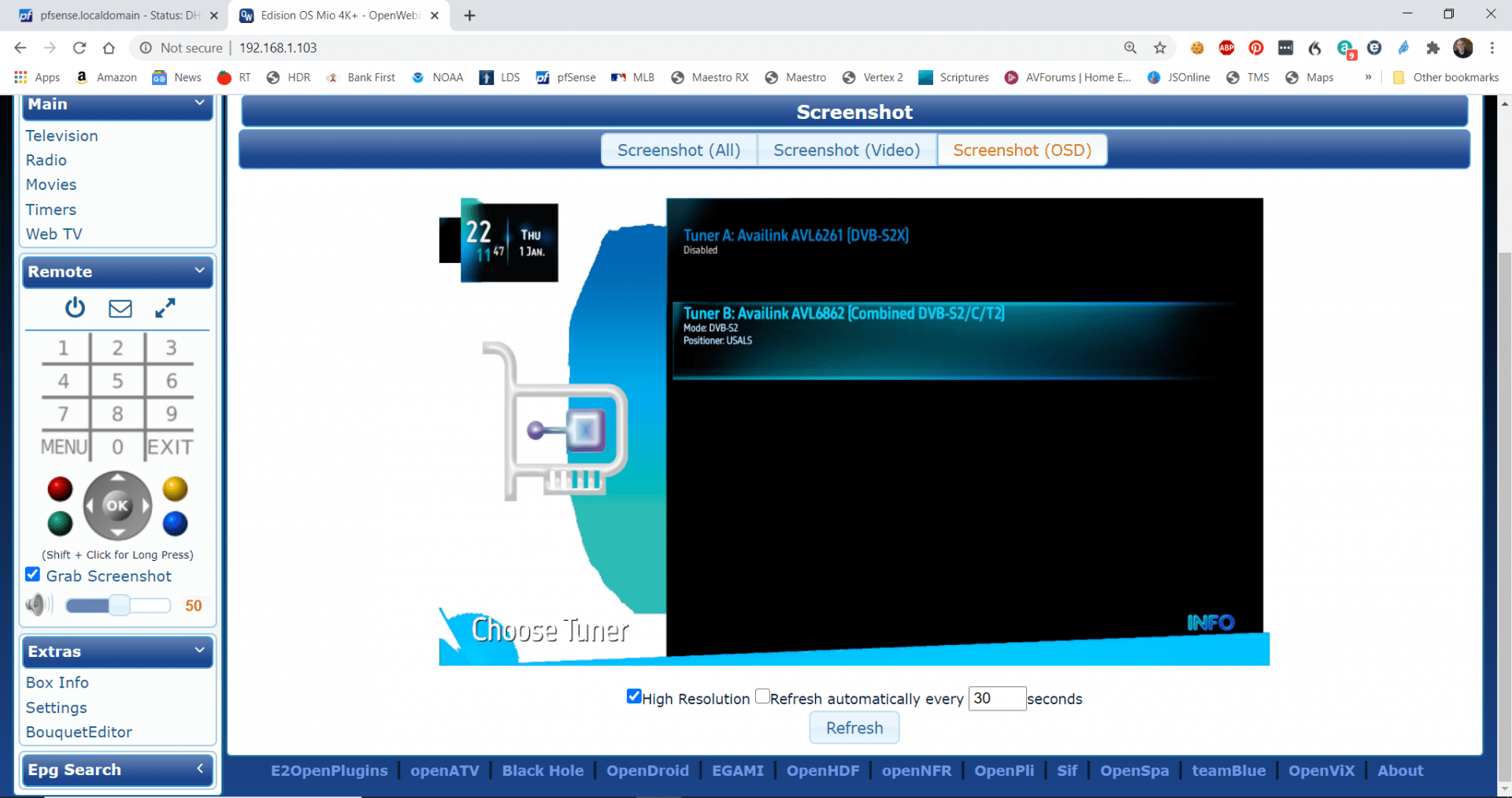

  • Screenshot (2).png
    Screenshot (2).png
    181.5 KB · Views: 78

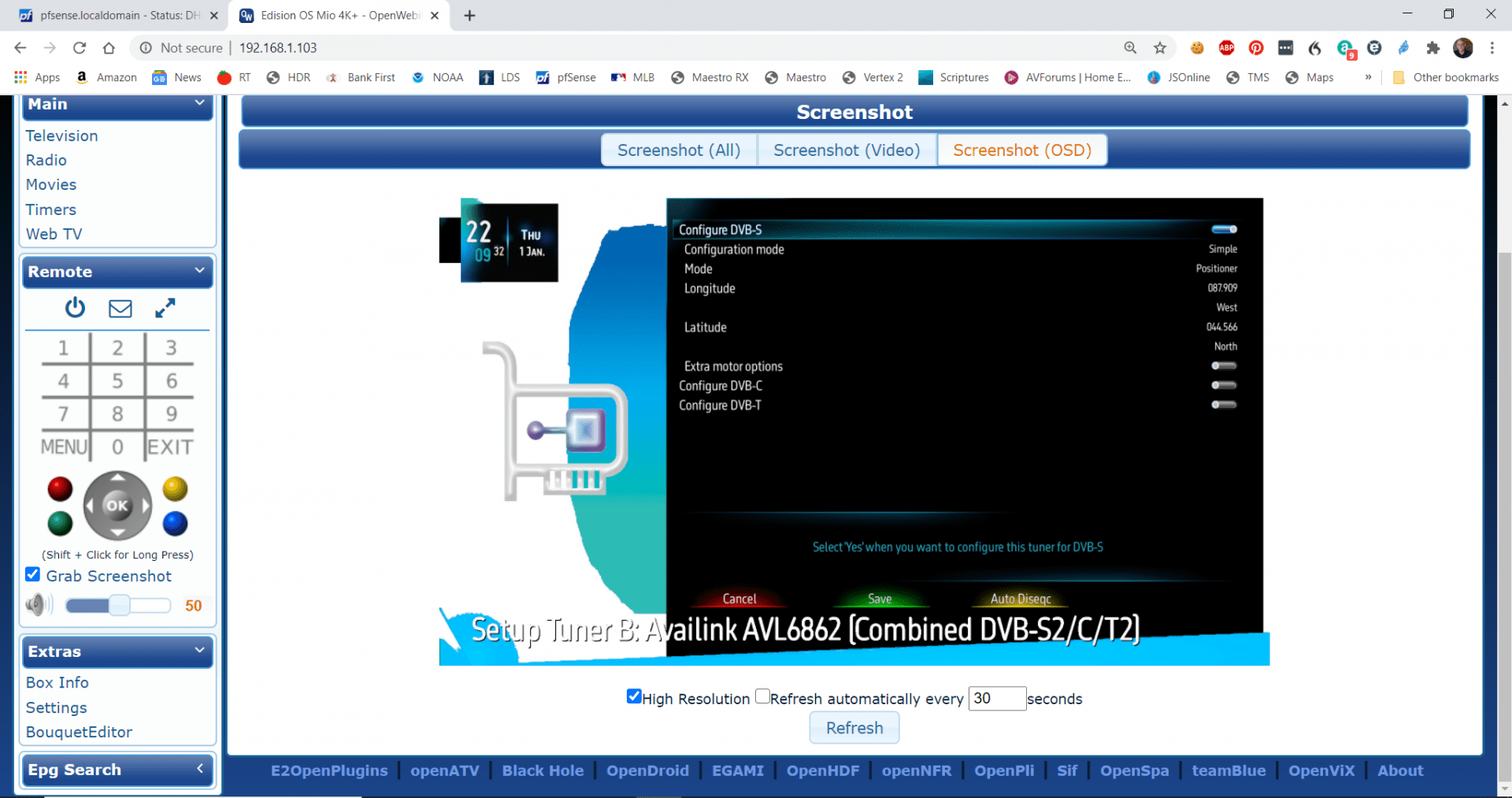

  • Screenshot (1).png
