Paraclipse Brochure Scans

[Natedawg63]

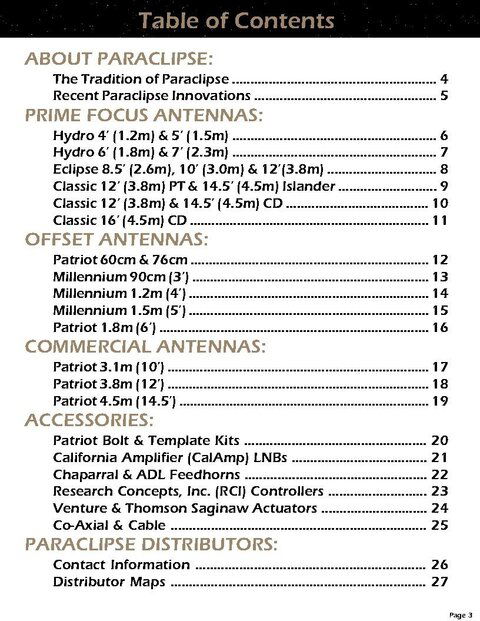

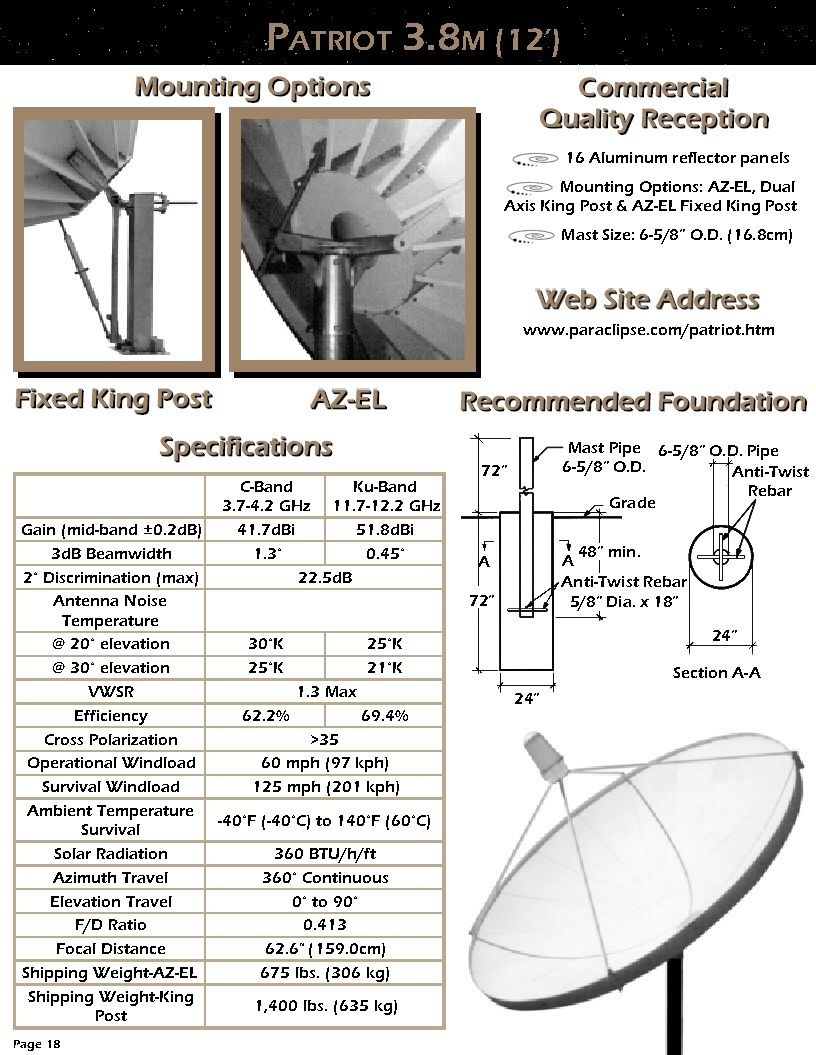

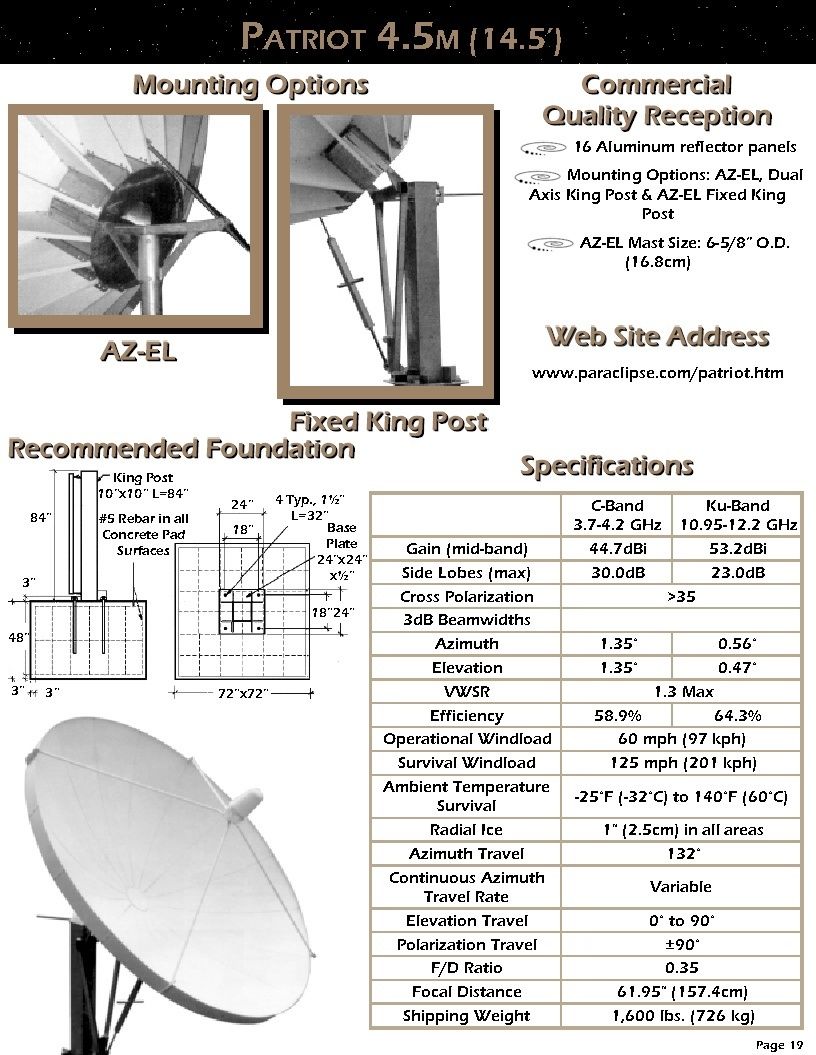

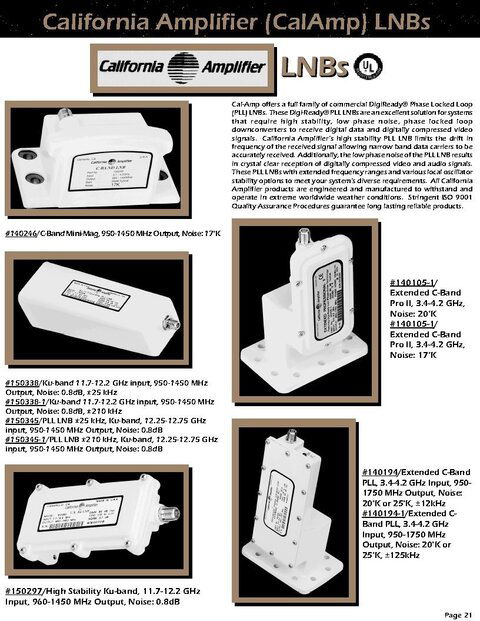

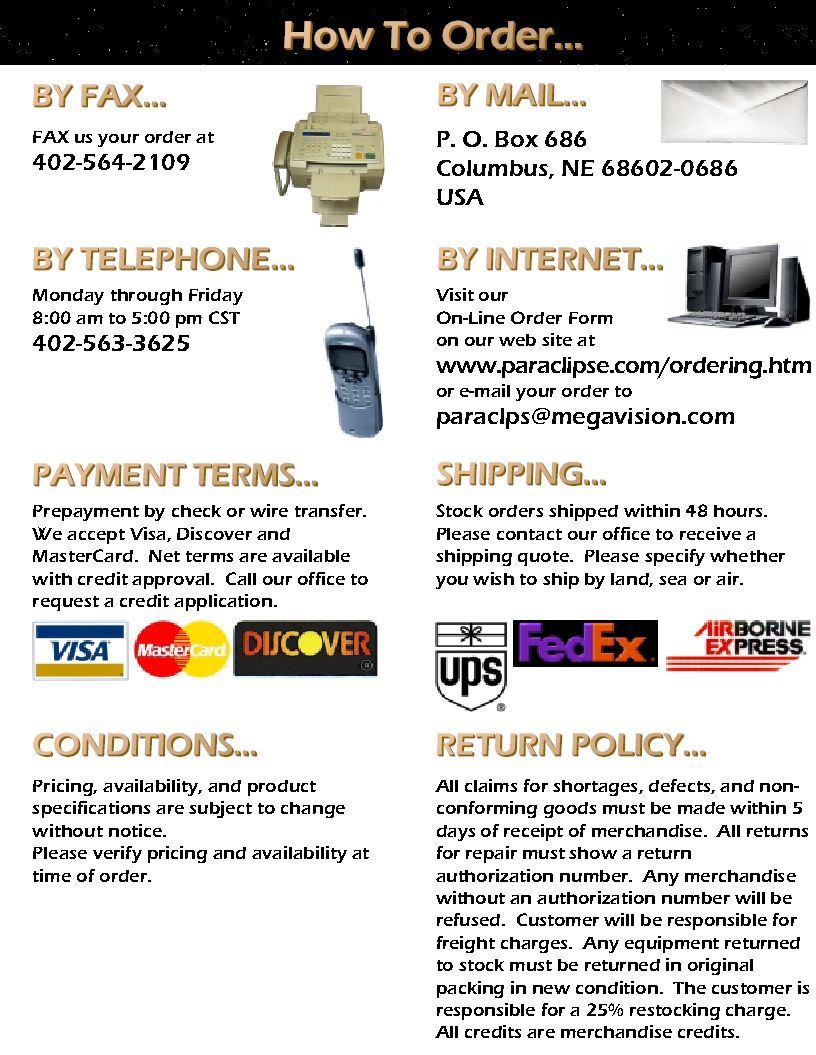

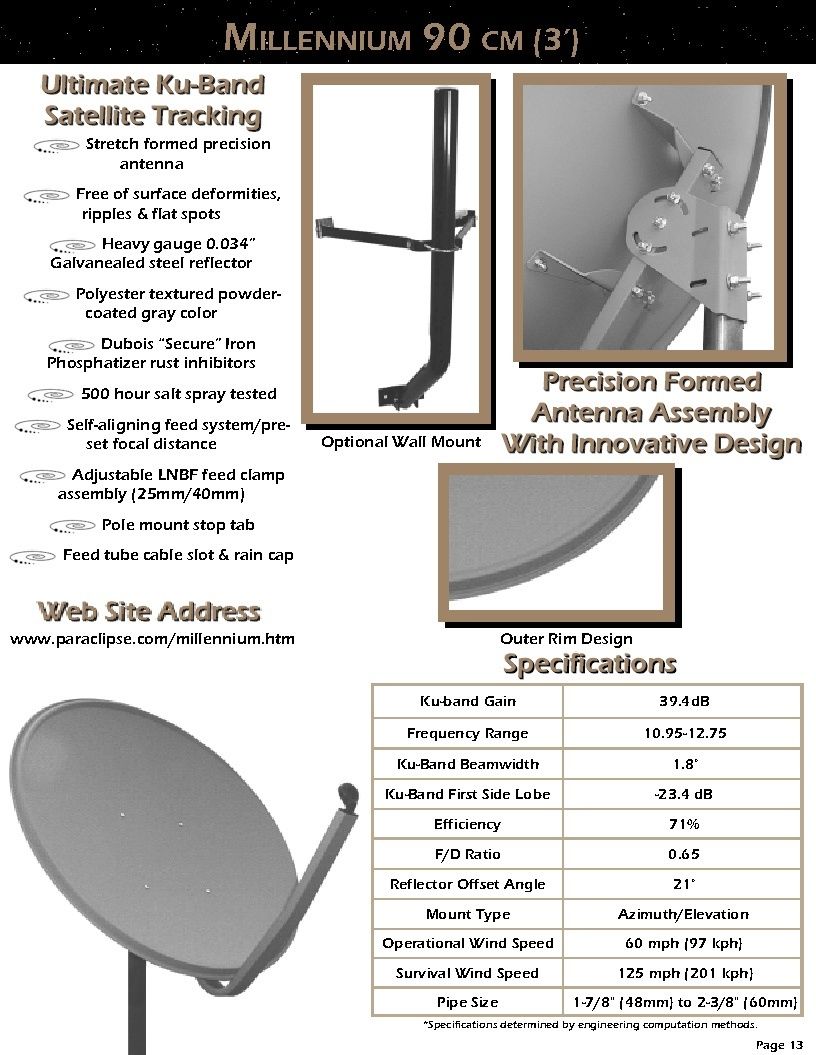

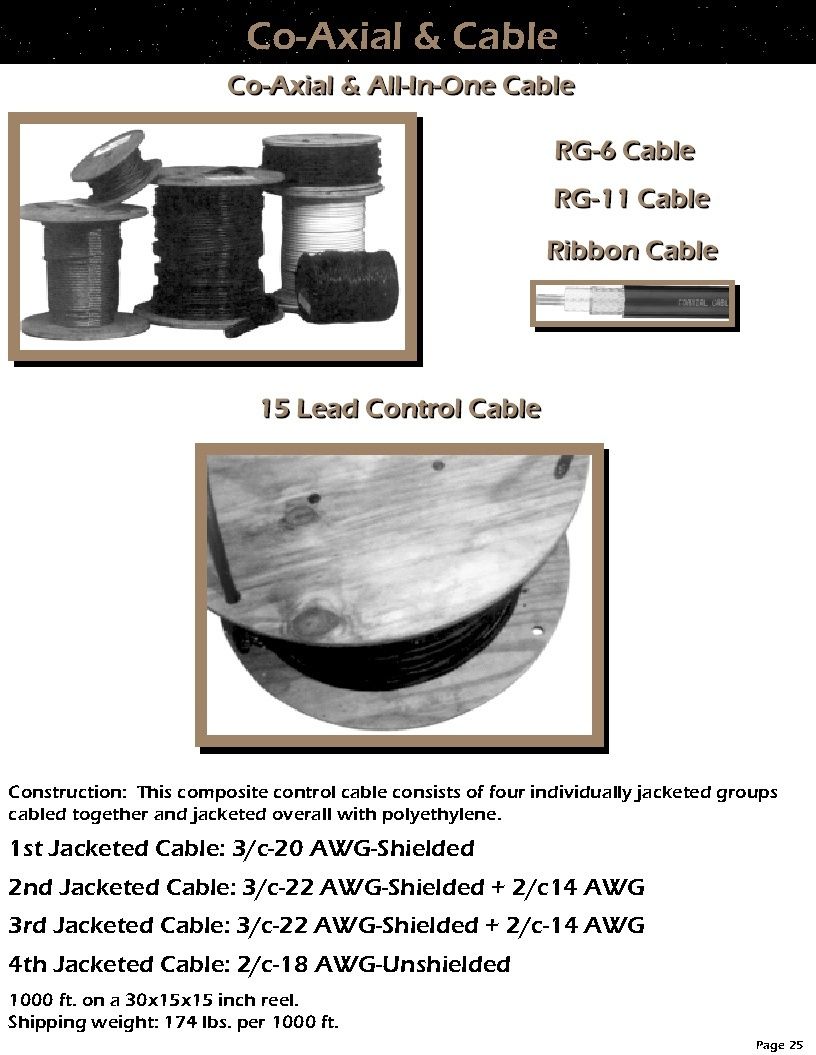

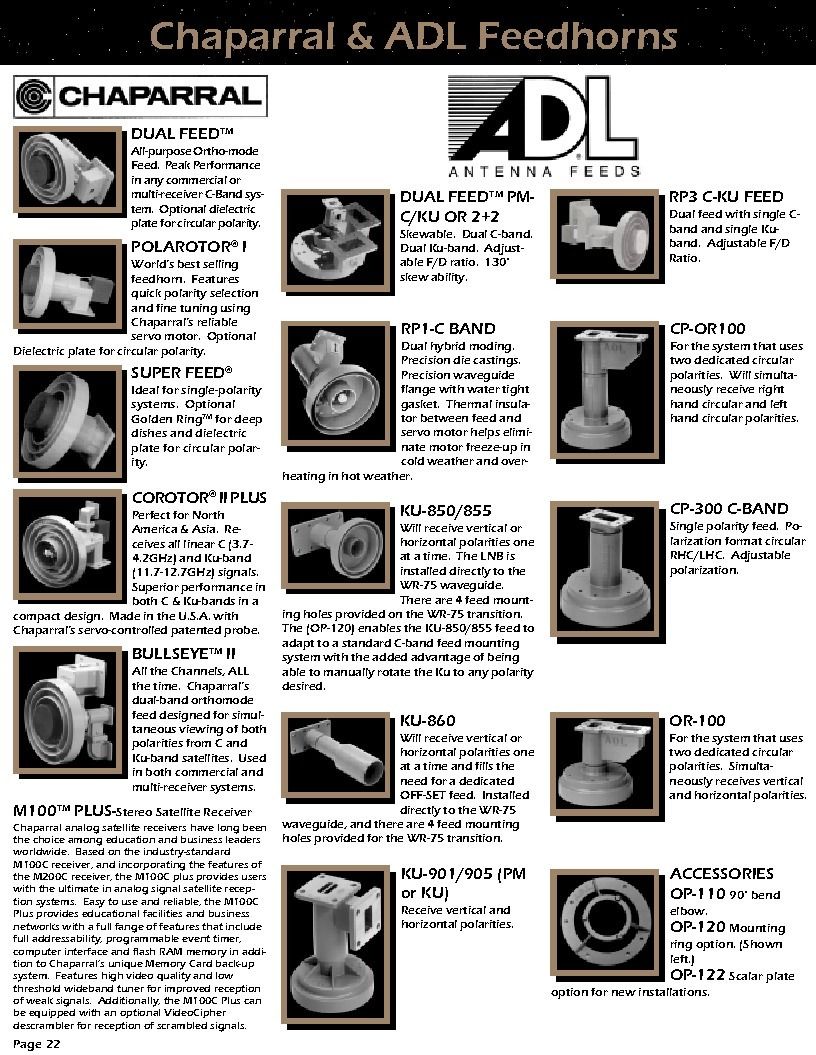

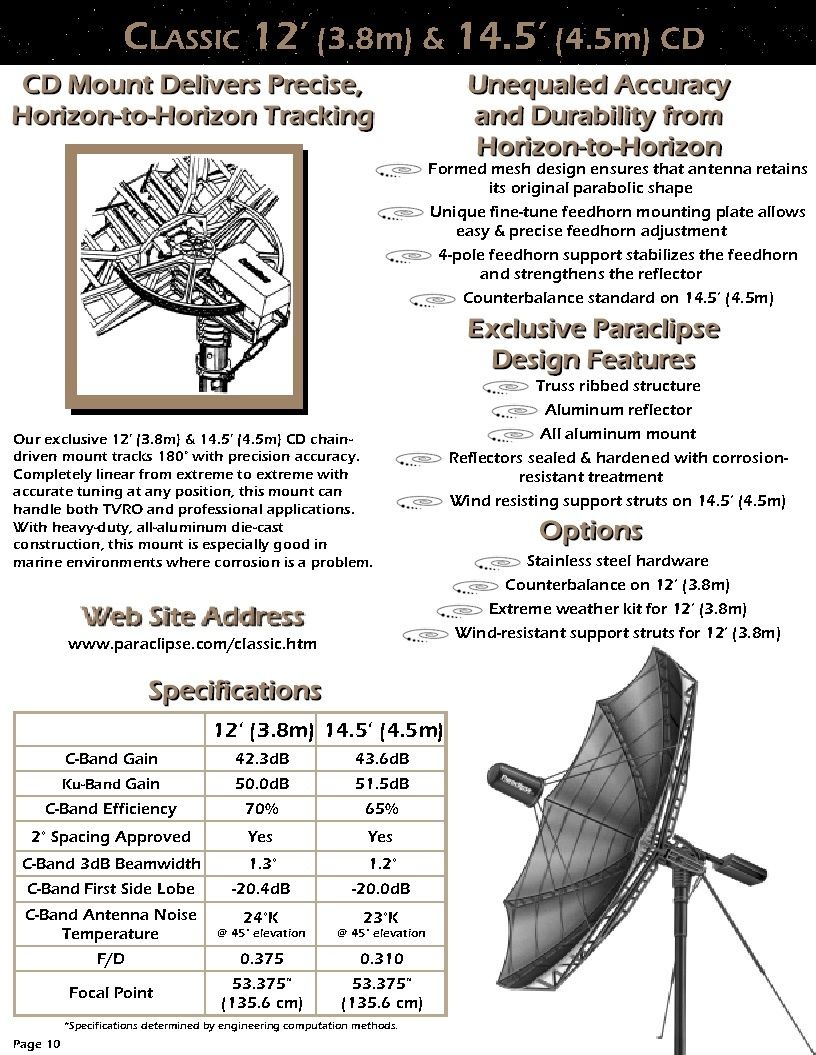

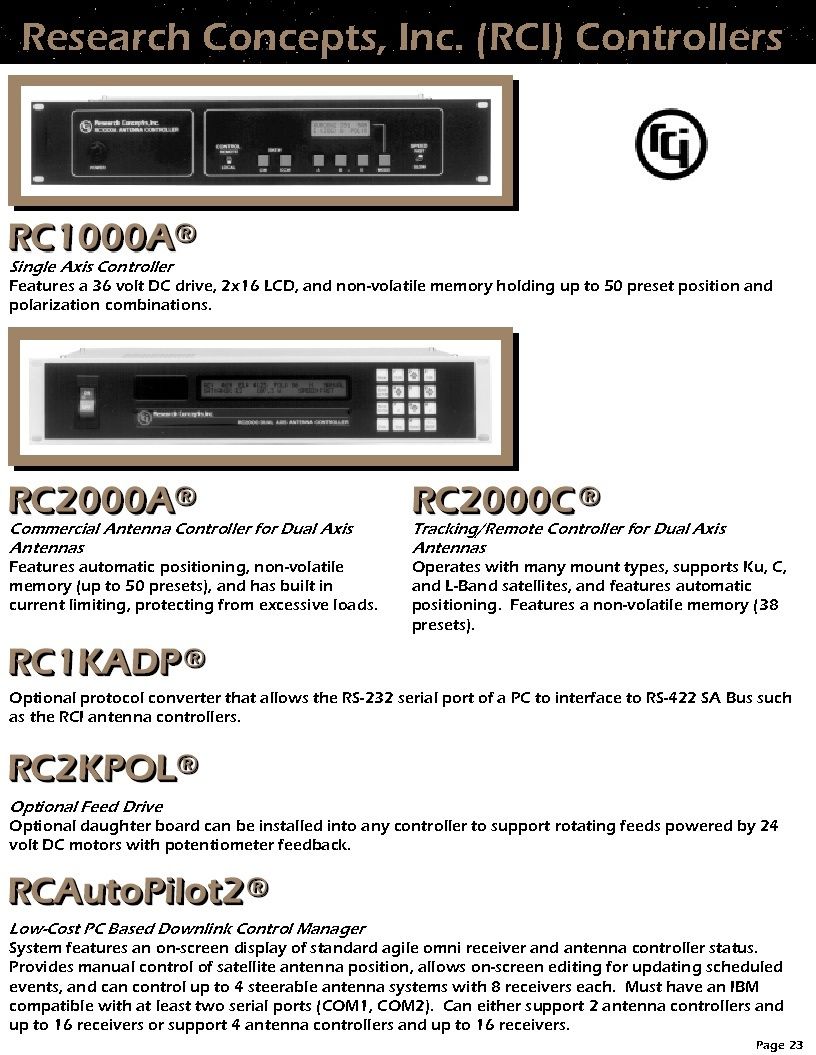

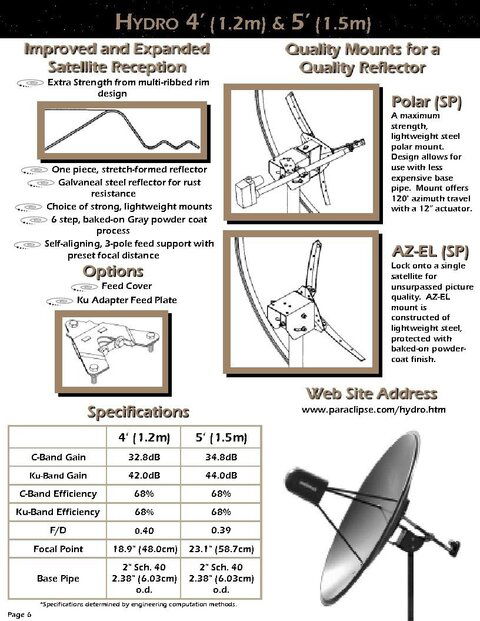

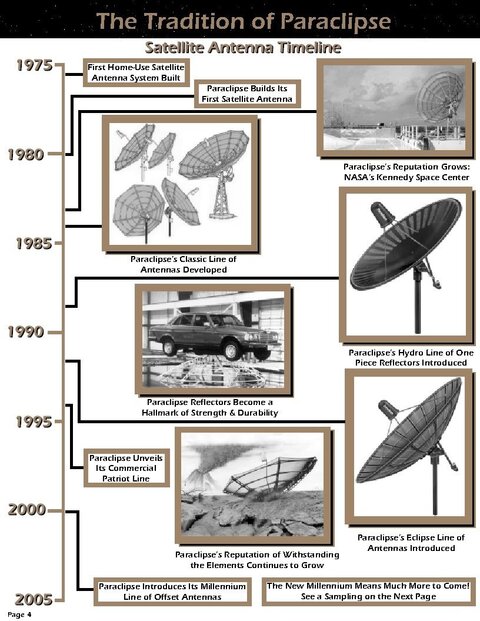

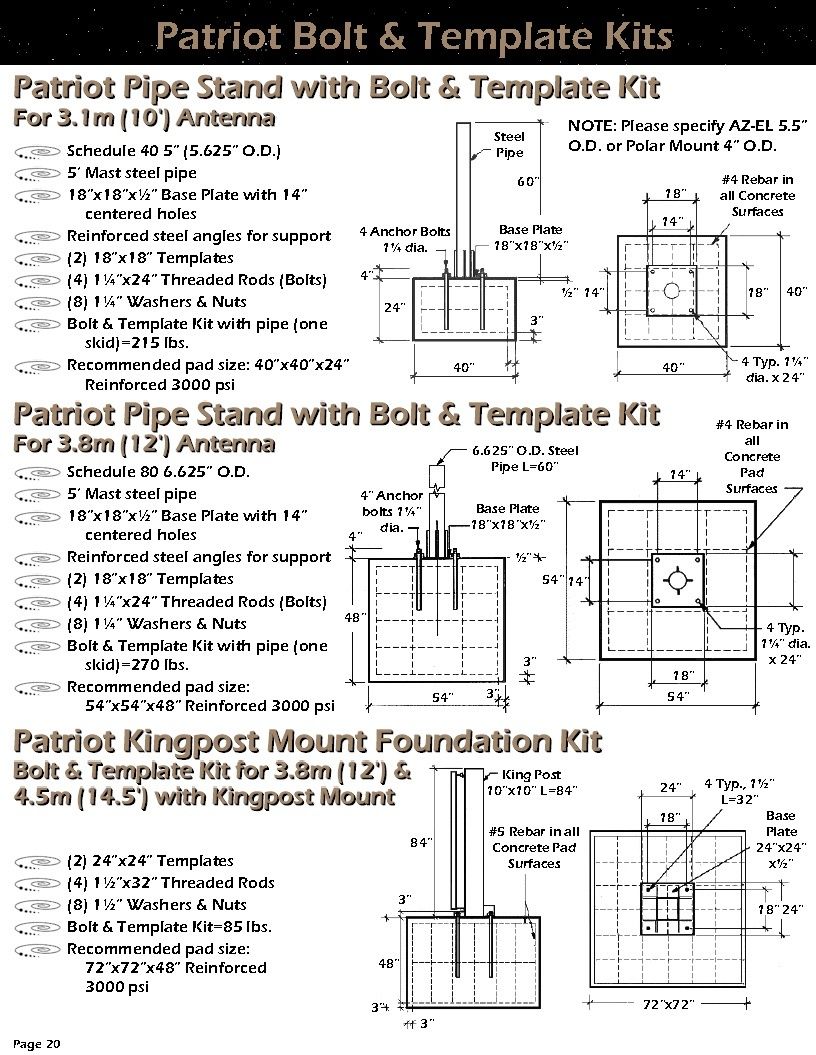

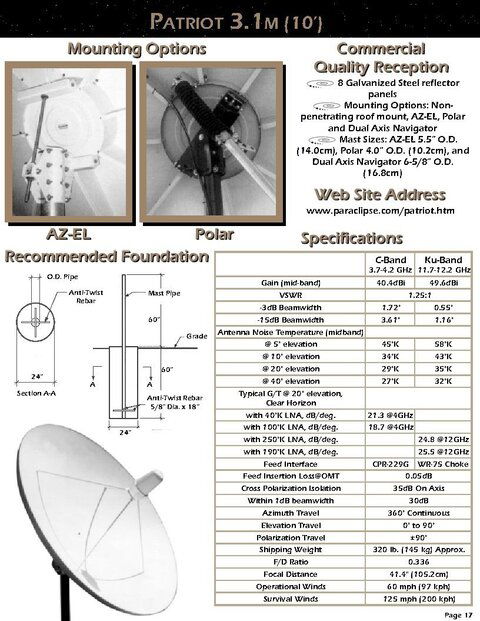

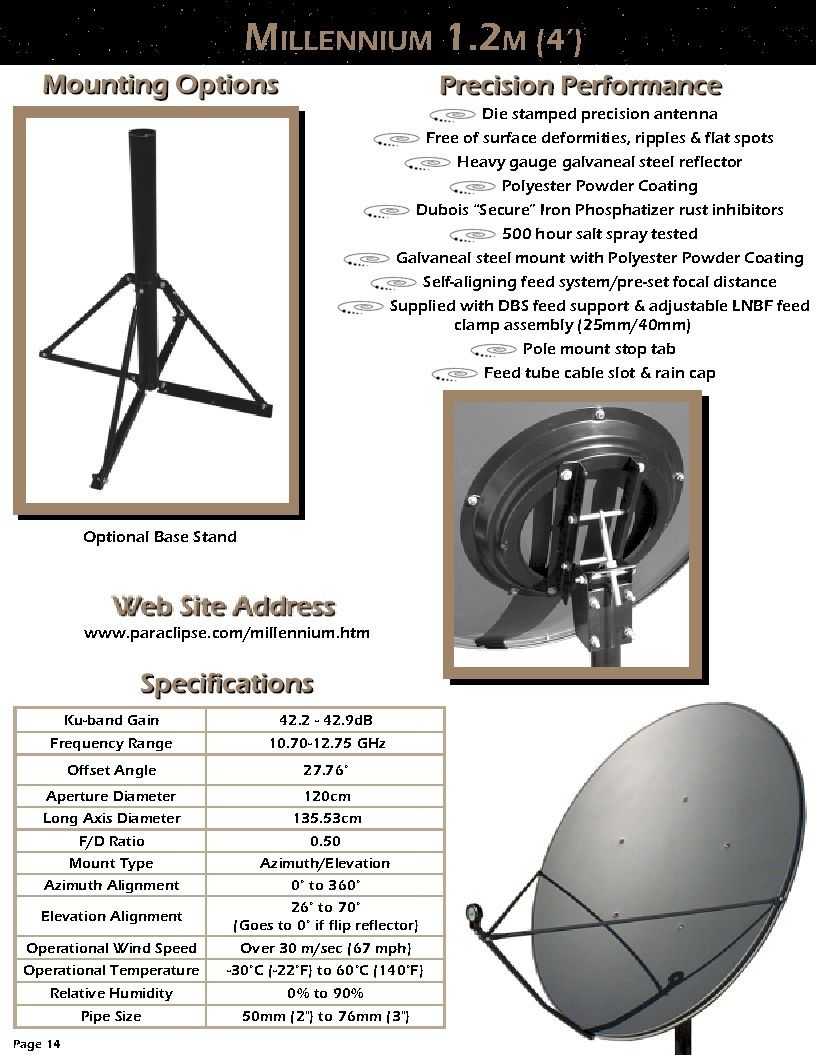

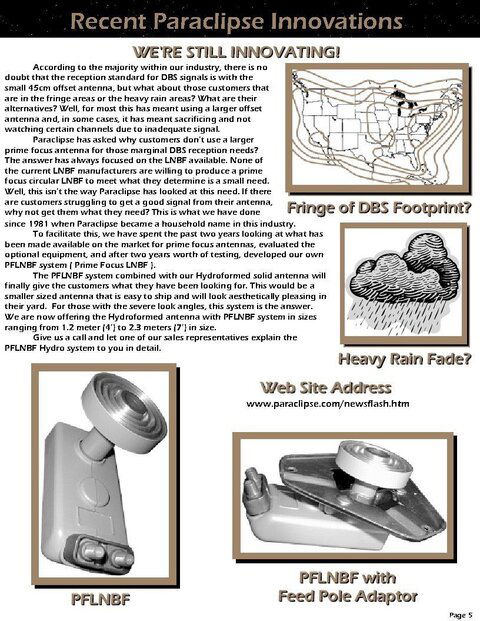

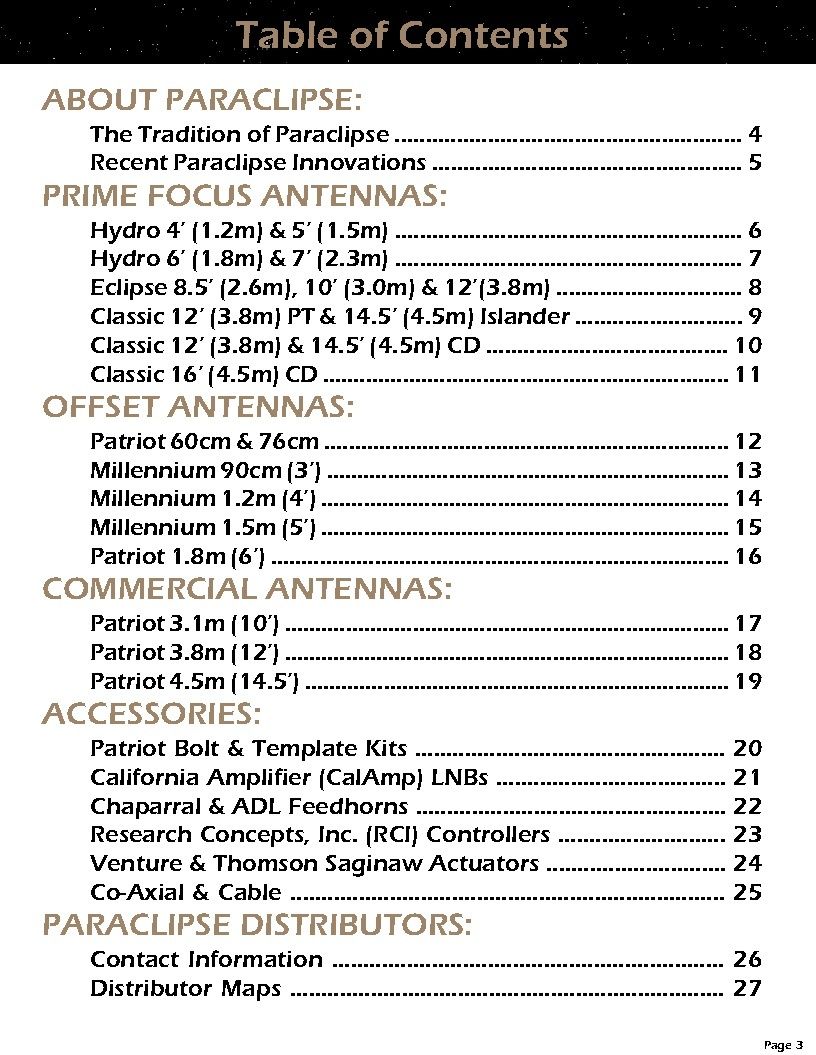

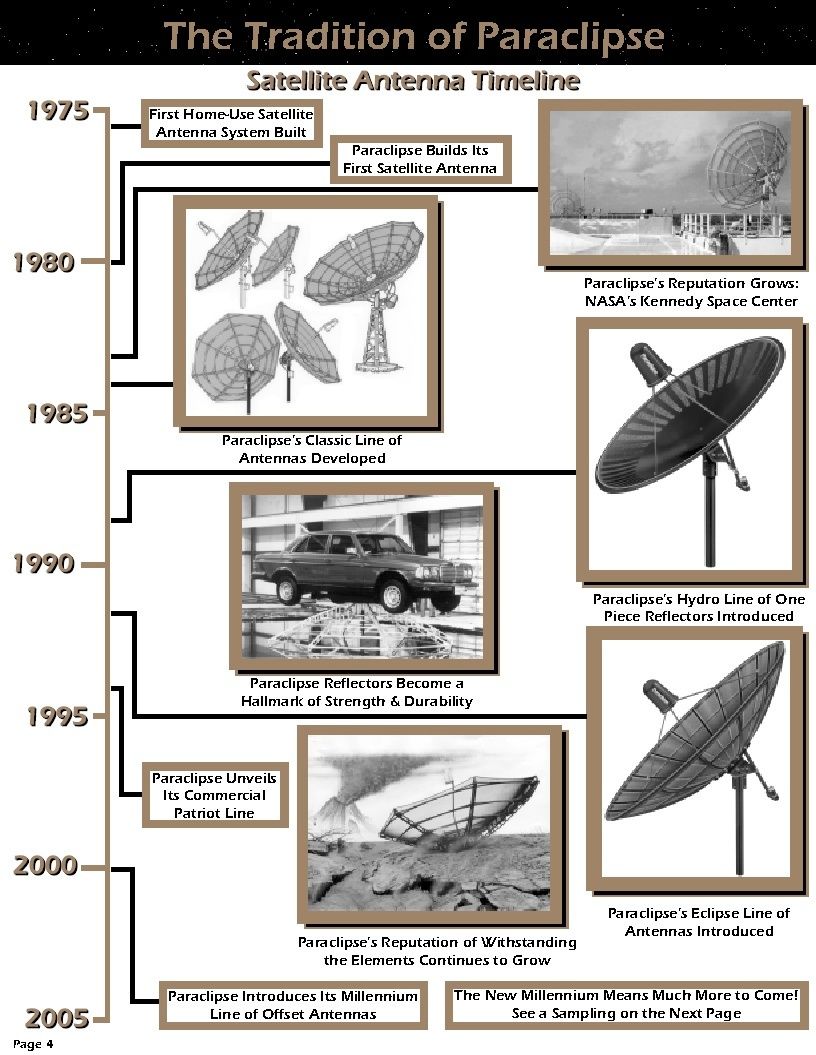

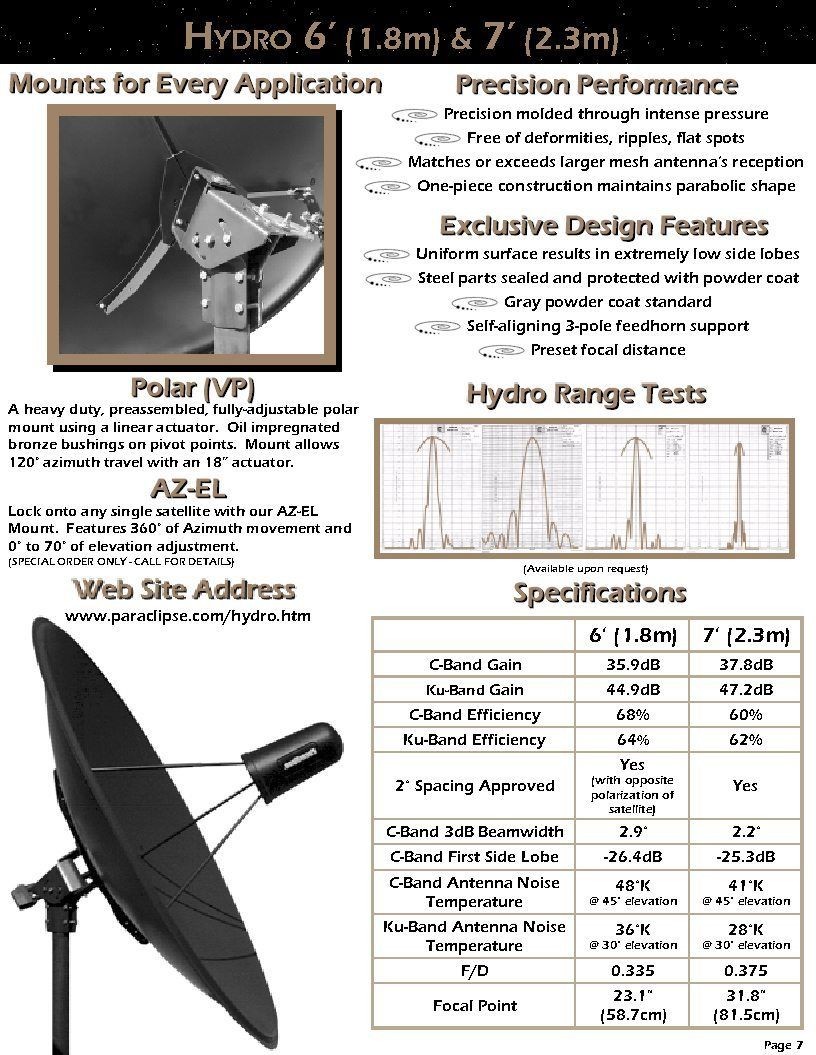

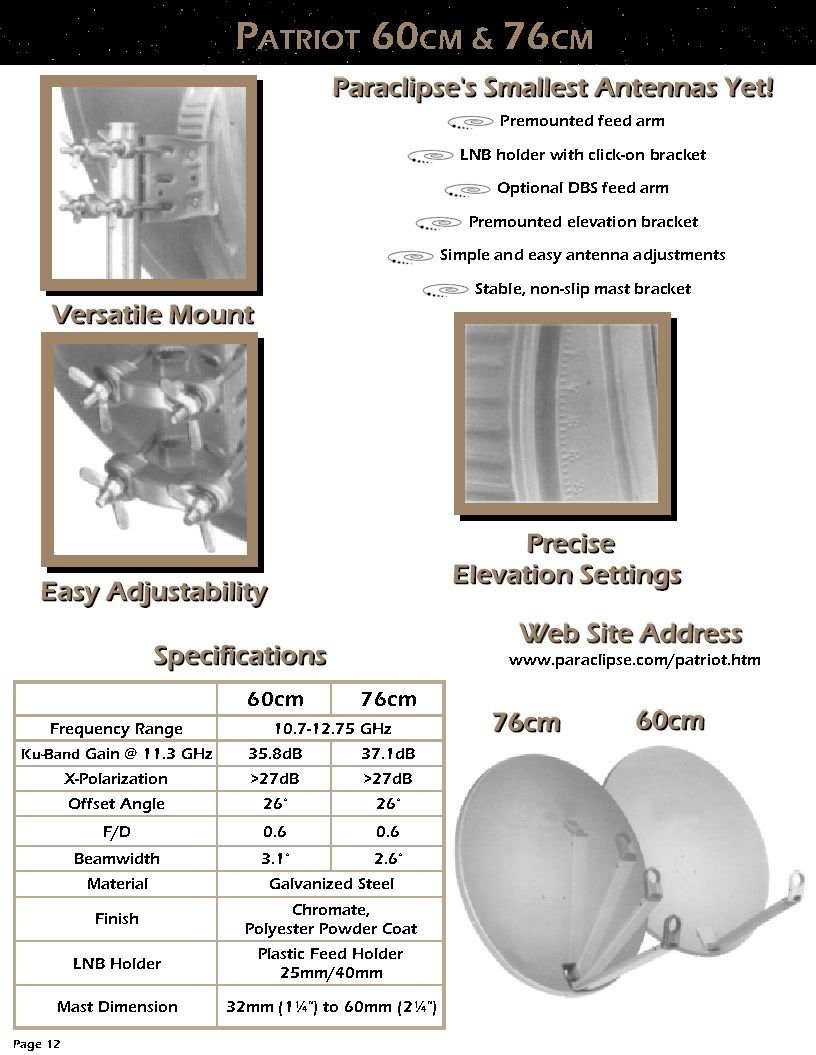

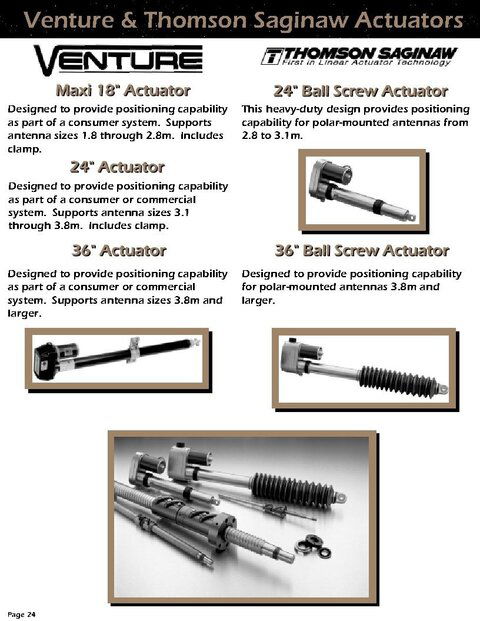

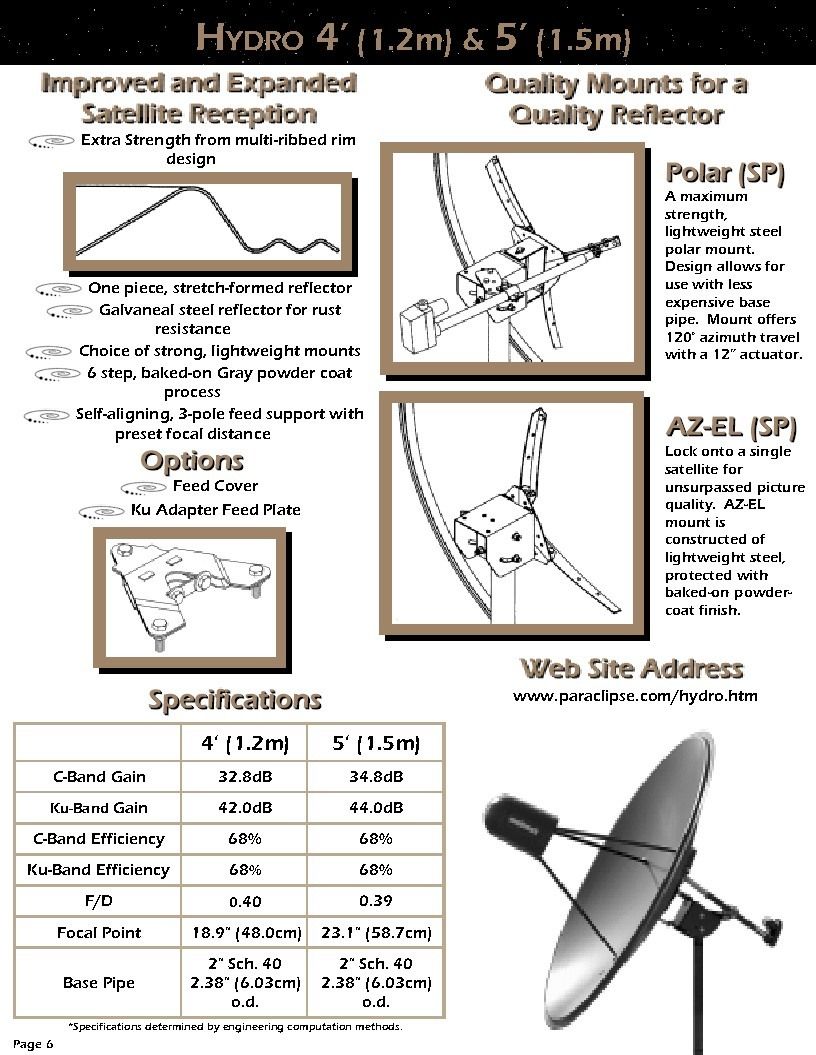

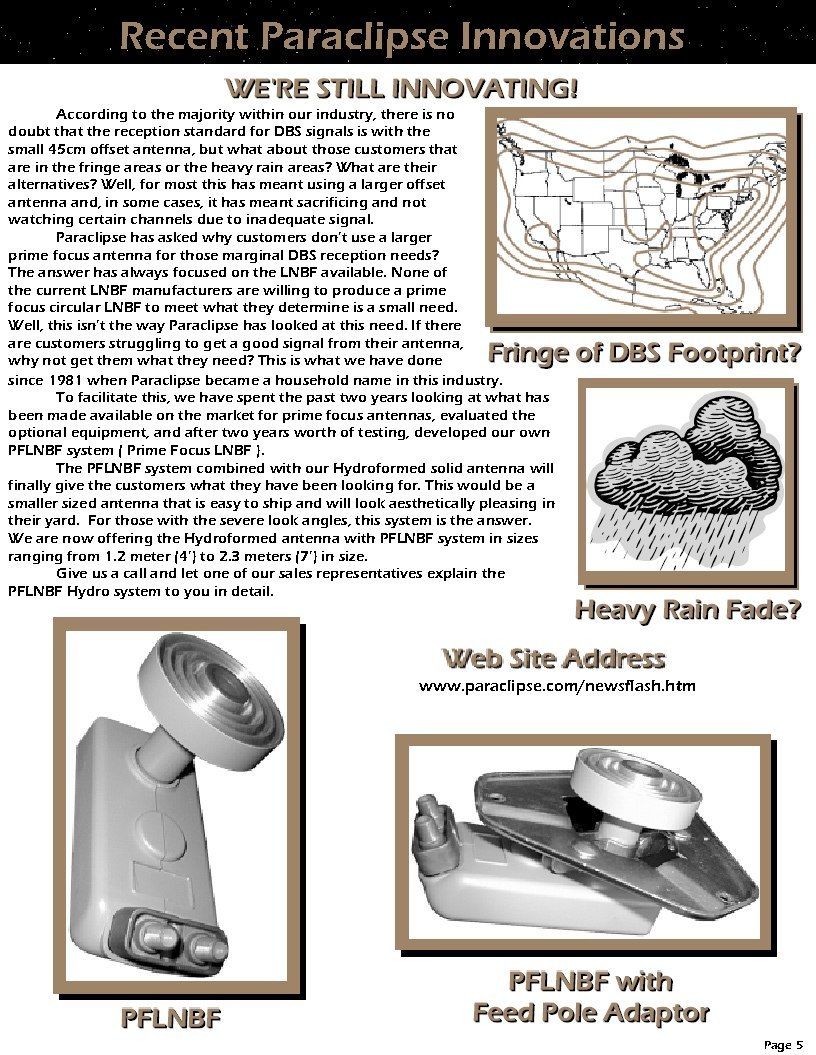

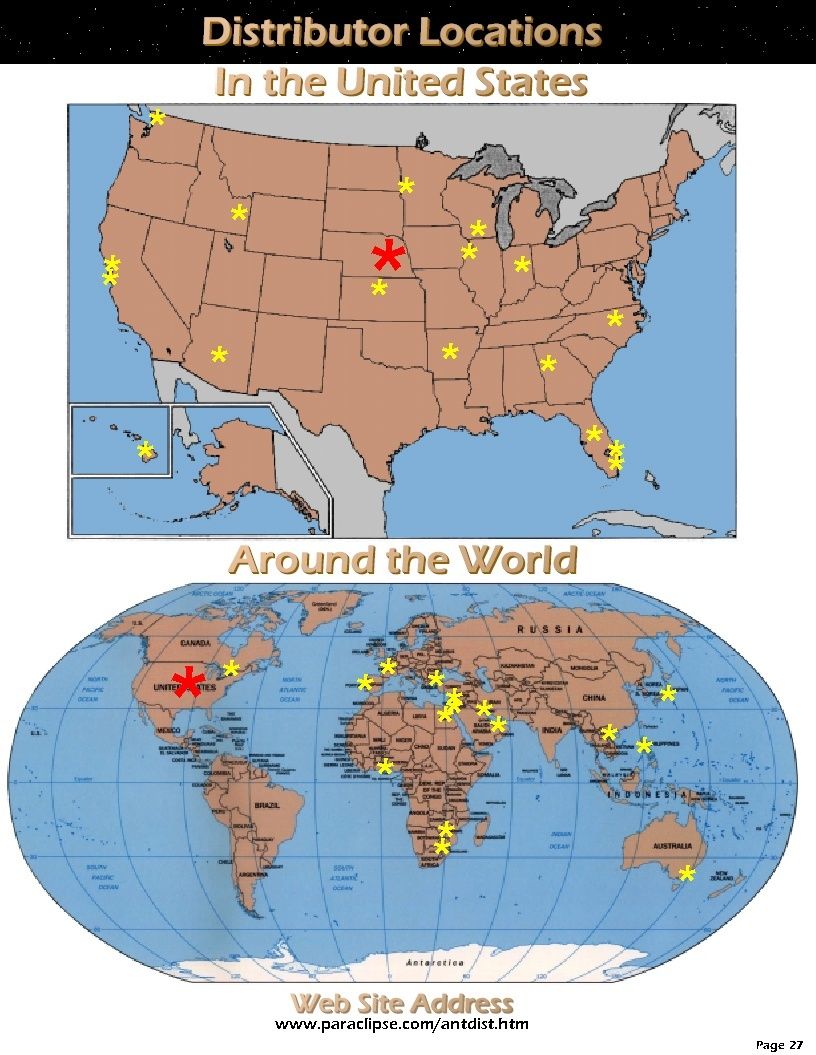

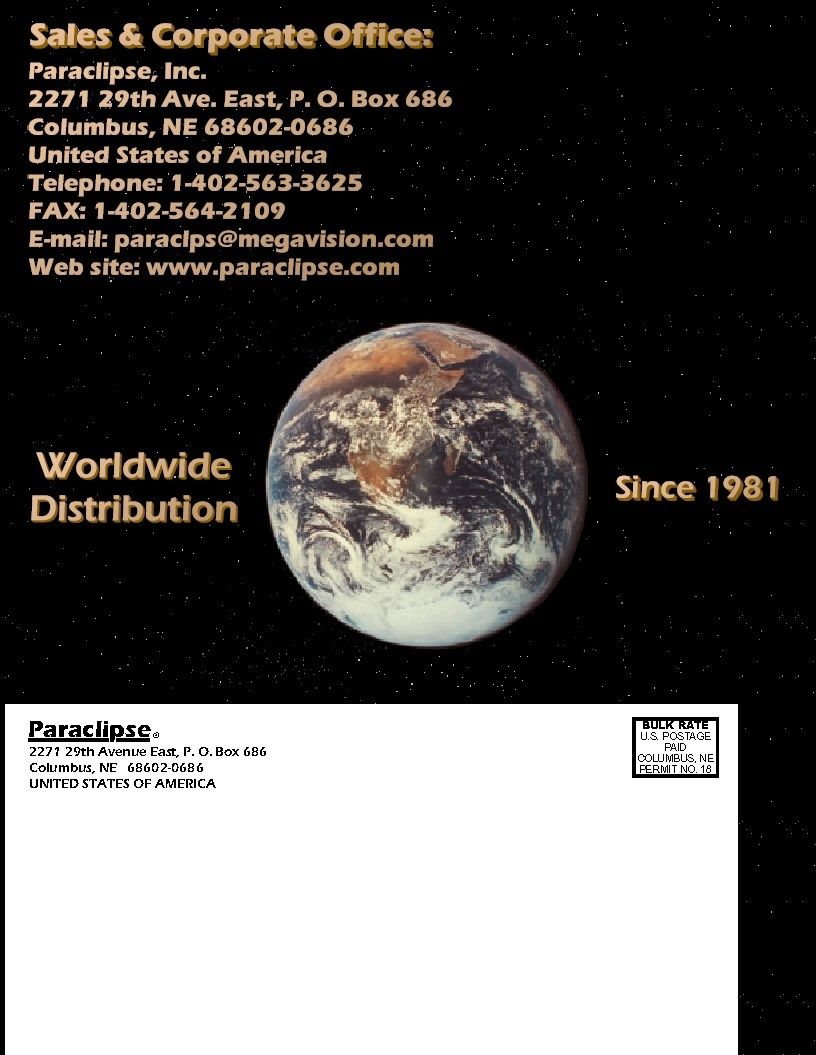

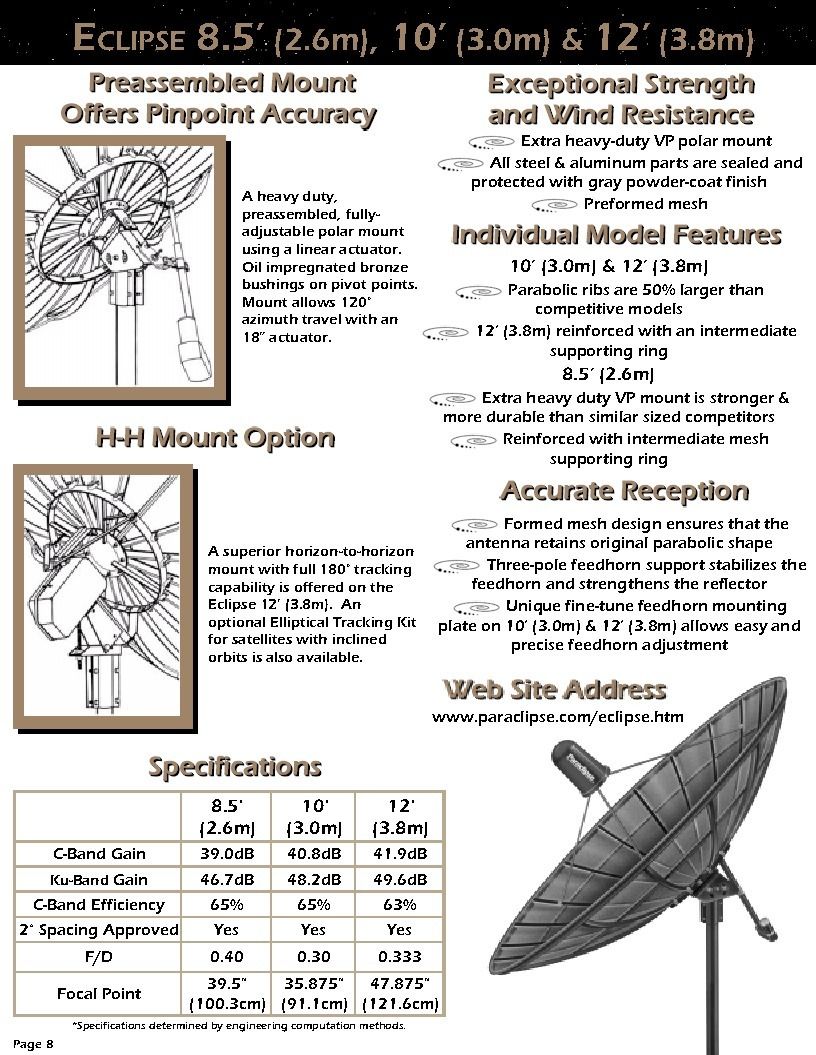

I came upon this Paraclipse brochure today and made .pdf's of each page for current Paraclipse owners or those looking at Paraclipse sats. Thought maybe the published specs could be of use. No idea the publish date.

Regards...
Nate



[Natedawg63]

11-20

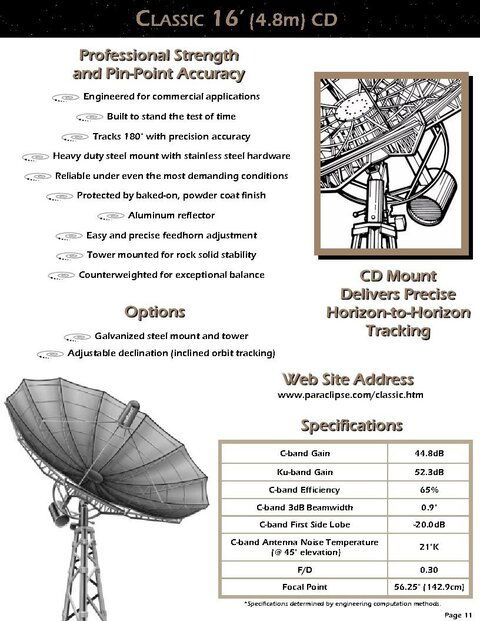

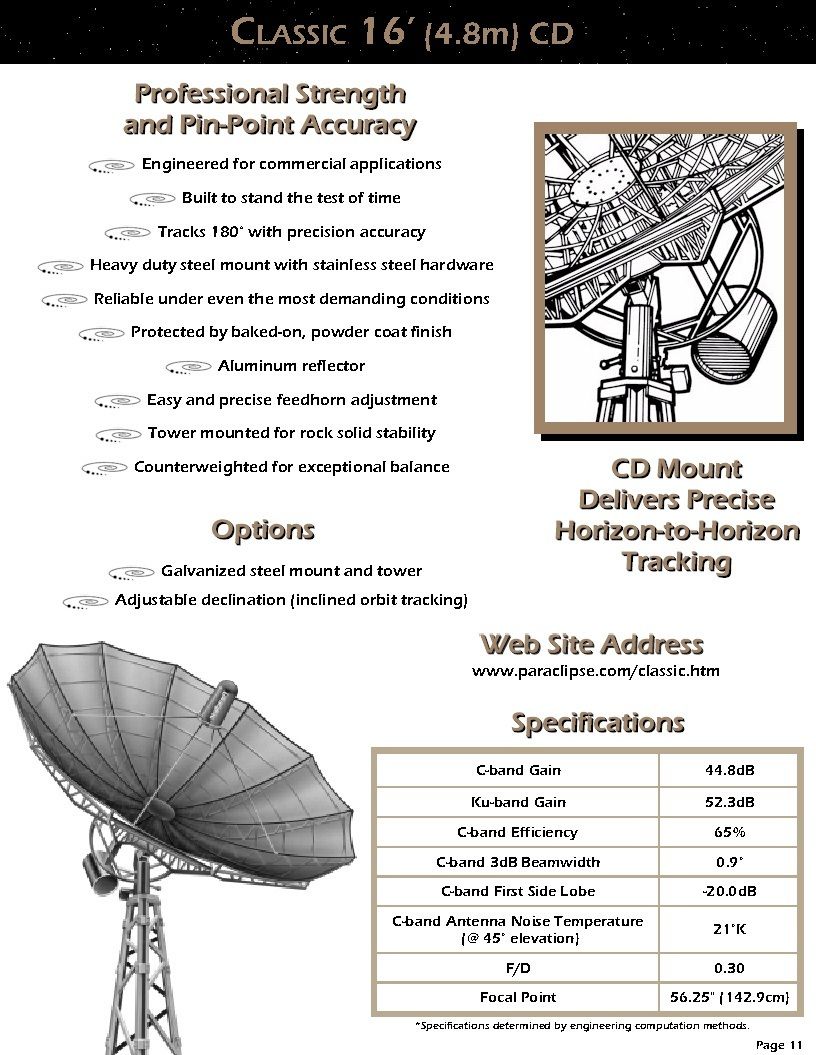

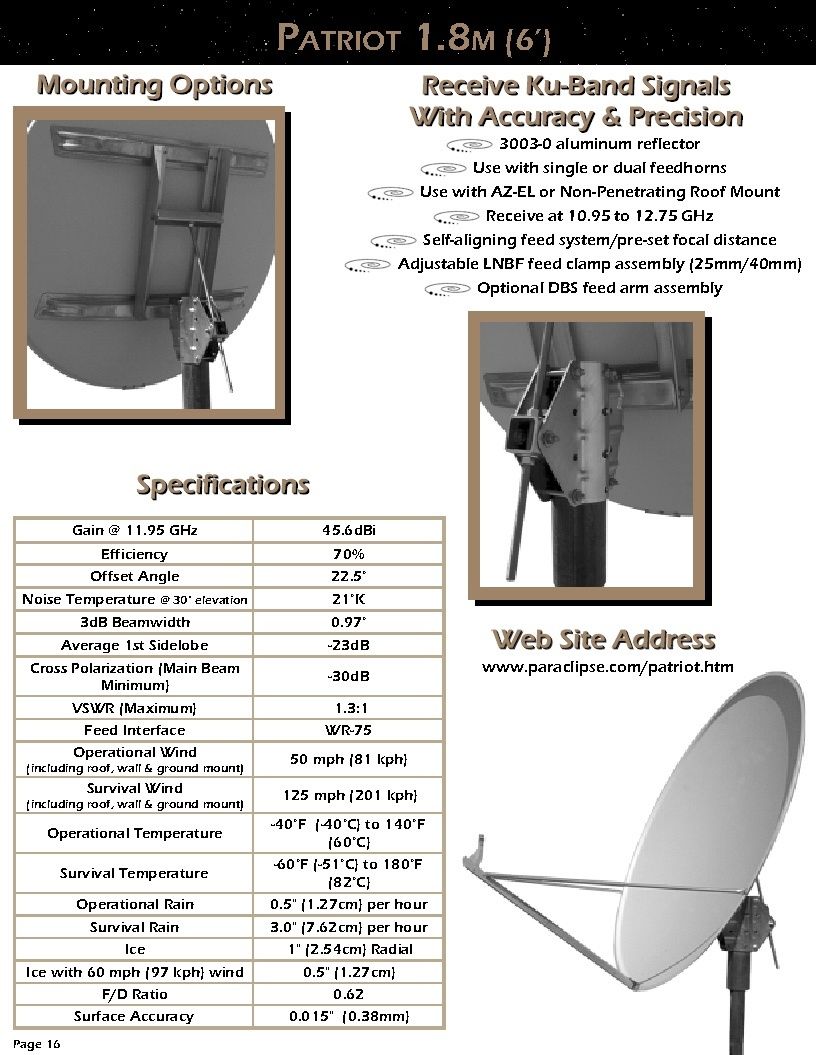

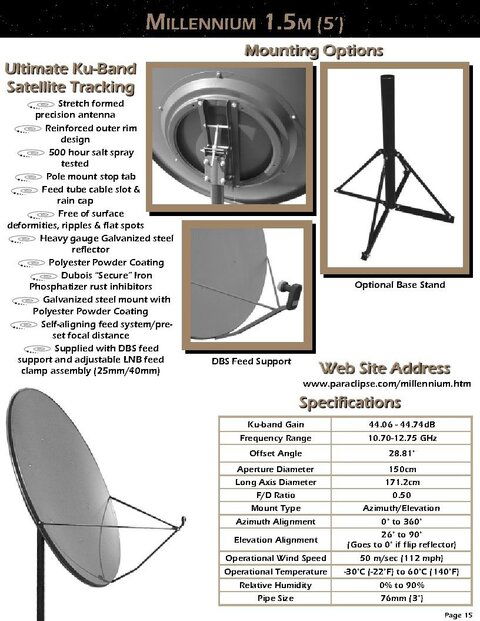

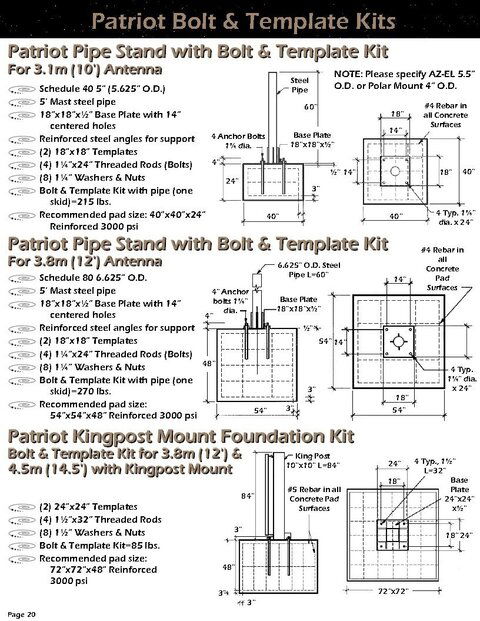

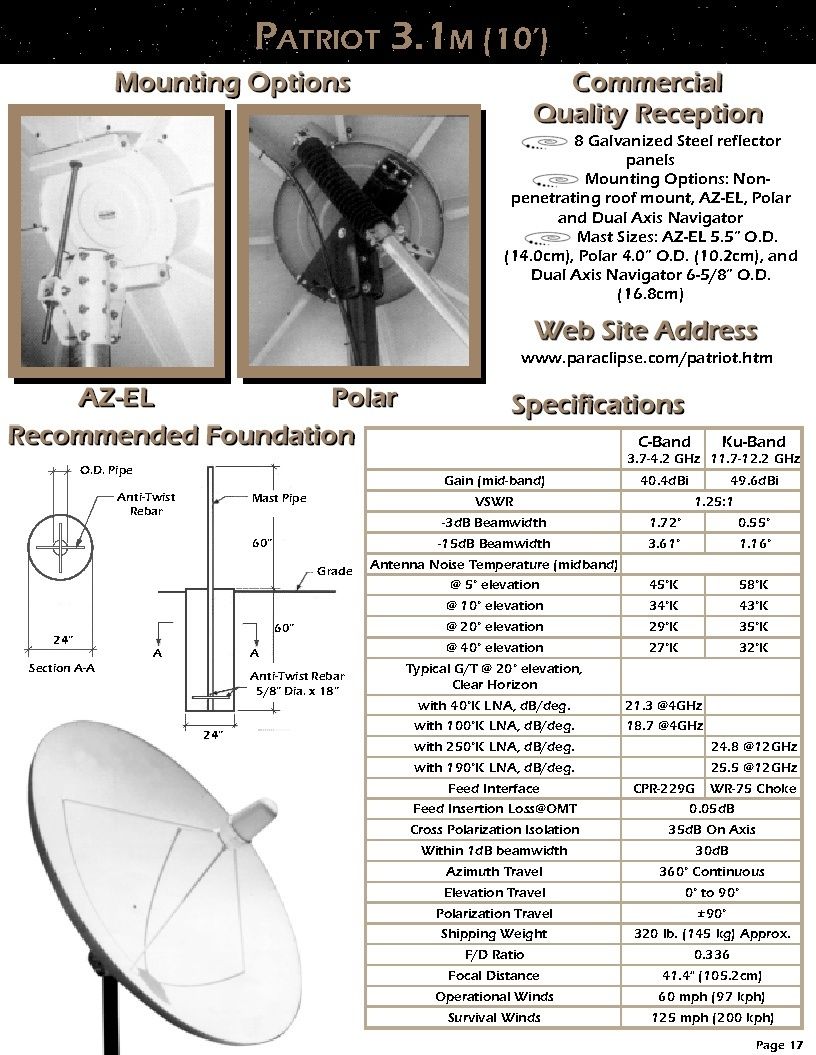

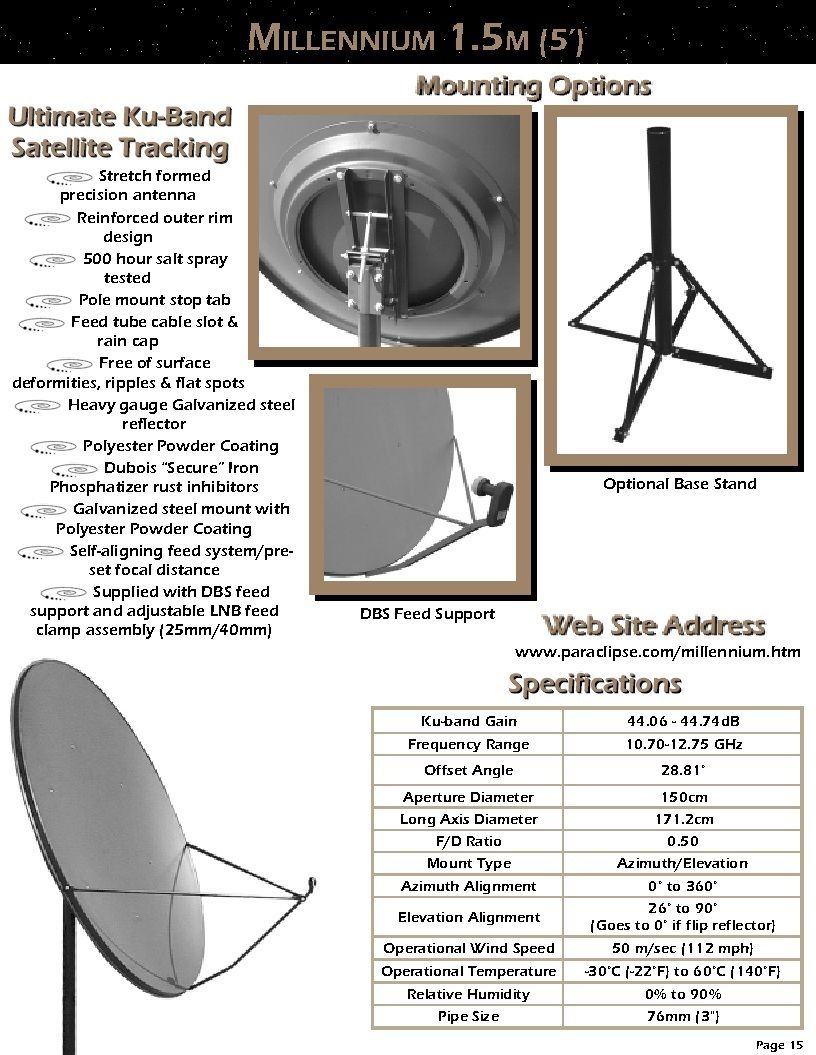

Pages 11-20



[Natedawg63]

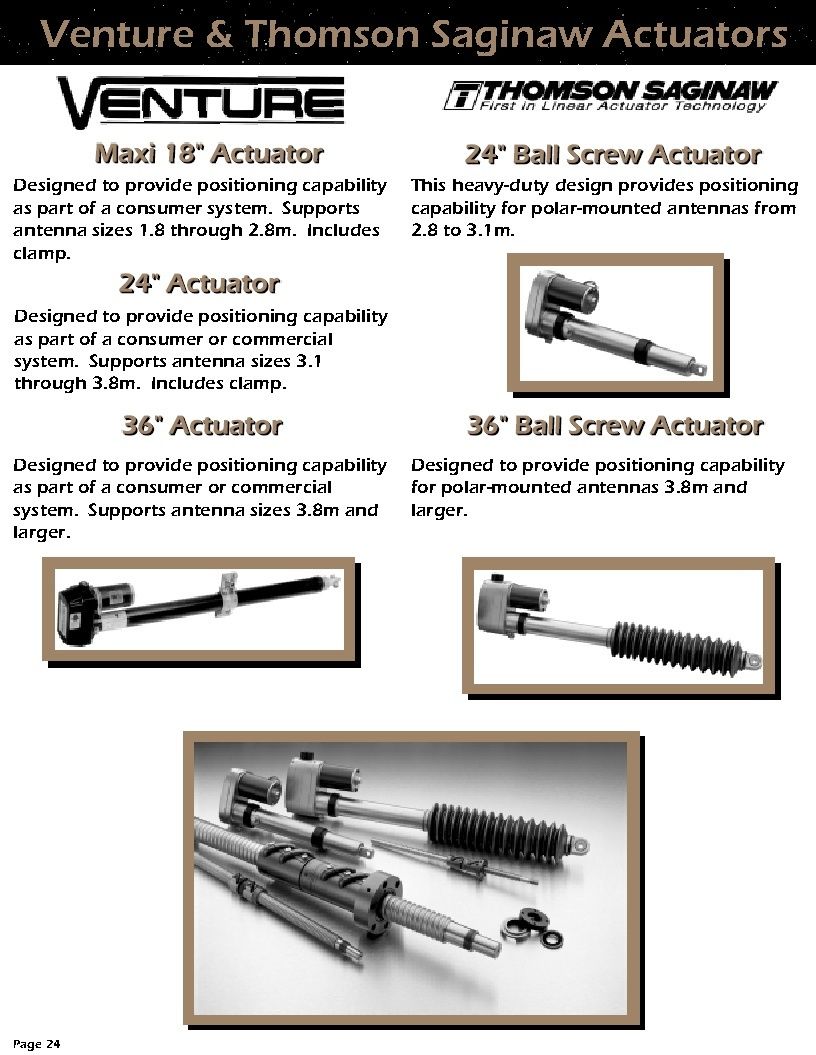

21-28

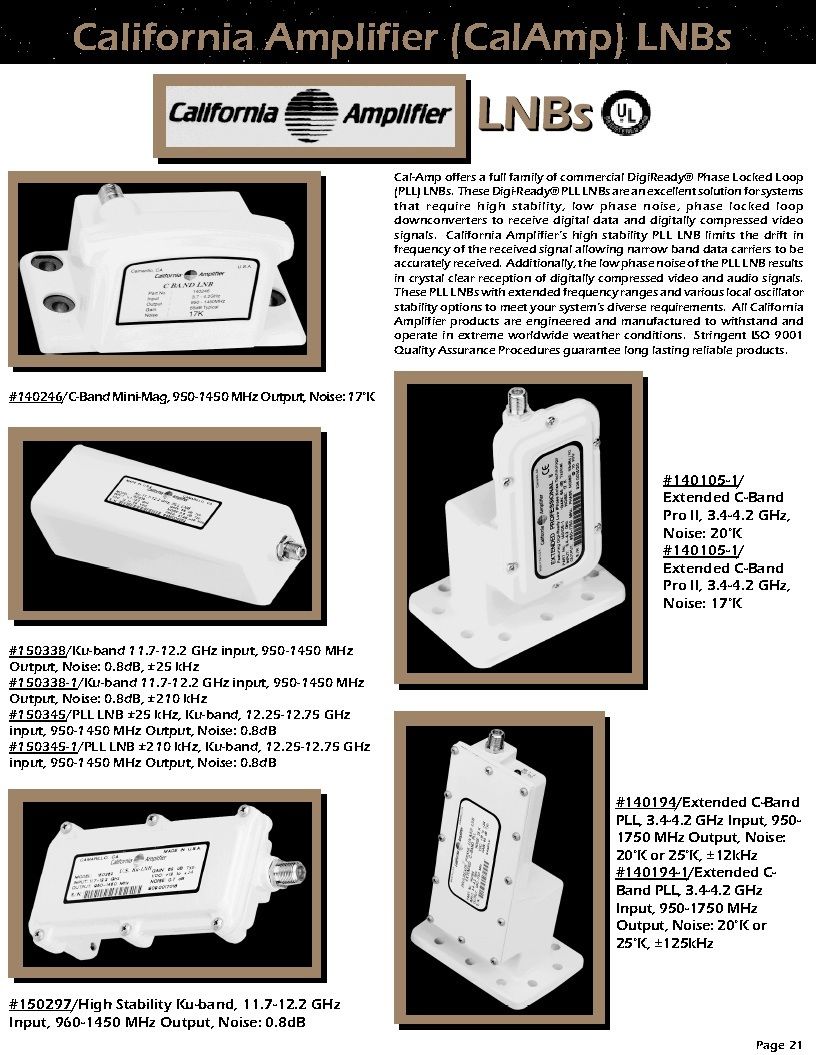

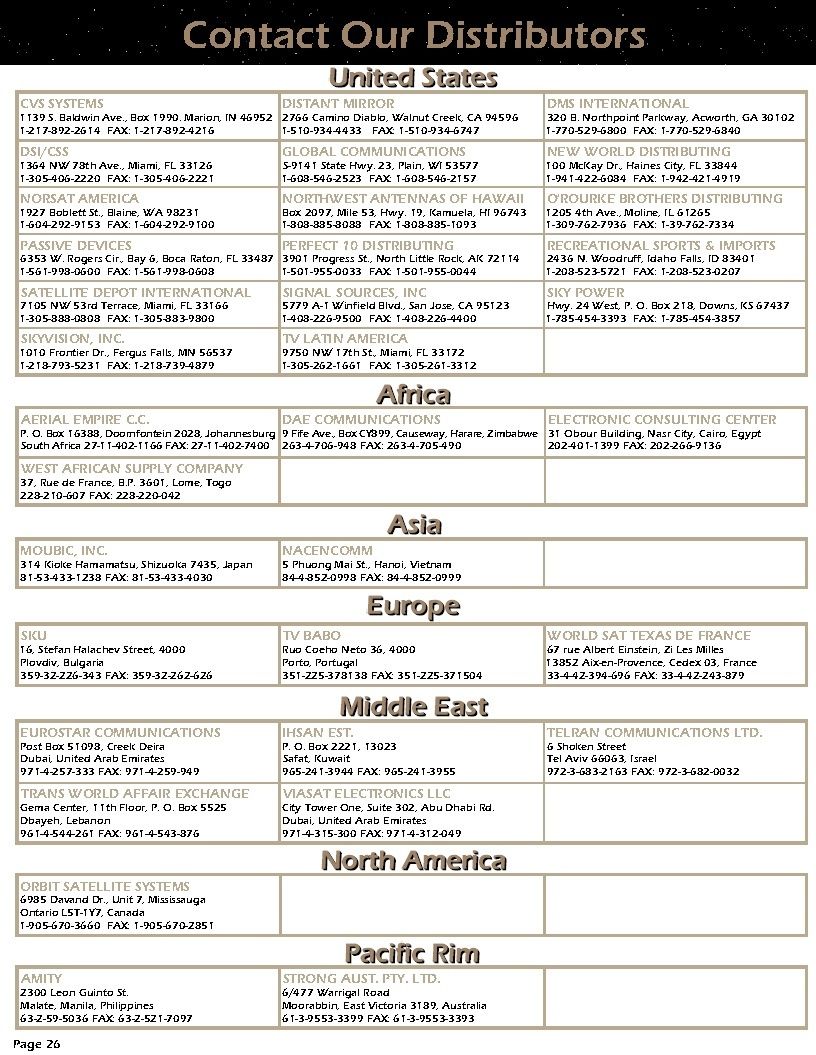

Pages 21-28



[tvropro]

very nice



[Natedawg63]

Sure wish all manufacturers woulda been like Birdview and riveted/attached a nice nameplate to their product... Would make it a whole lots easier tracking these babies down.

I would imagine the nicer large Ku dishes 5'-6' were atop early sports bars/taverns to pull in sports? One of those would be a nice find, as well as the larger sats.

Nate



[tvropro]

Sure wish all manufacturers woulda been like Birdview and riveted/attached a nice nameplate to their product... Would make it a whole lots easier tracking these babies down.


Nate

My Unimesh had a white sticker in the middle when it was new but that's long gone. Unimesh made a great 12 foot dish they had two intermediate rings for added support to the mesh. That's one of the reasons I bought it.



[tonydix]

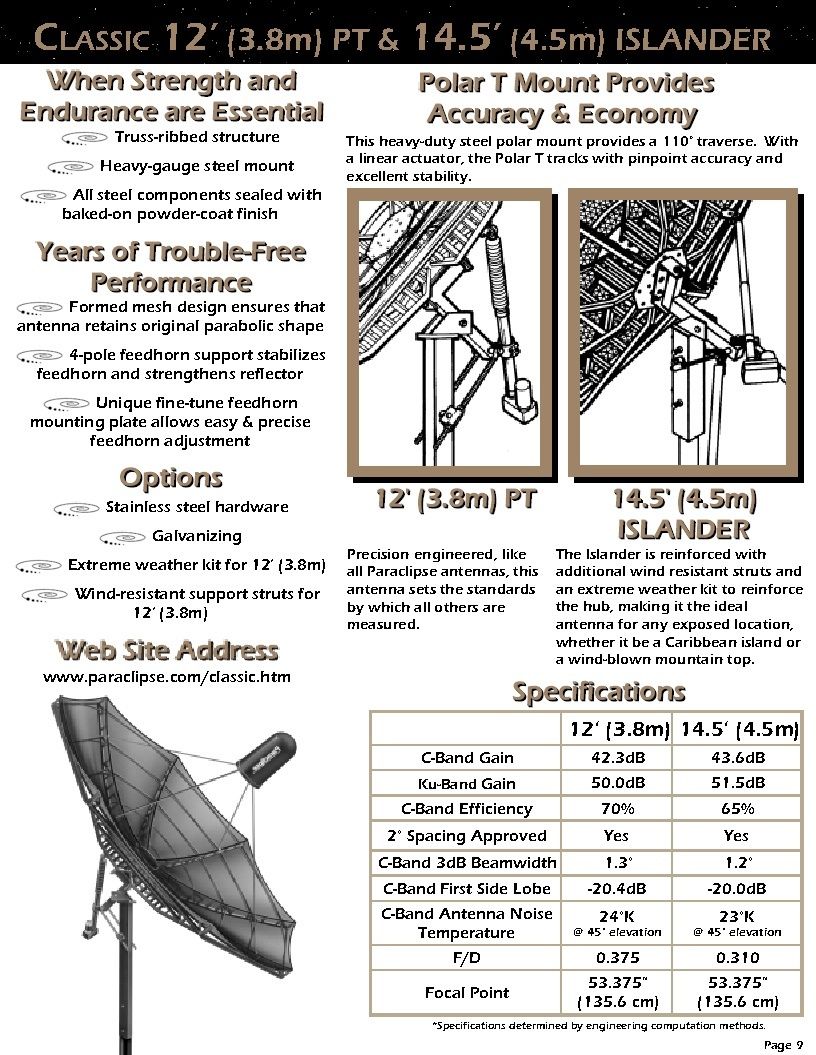

Thanks very much for posting these. My dish looks very similar in construction to the Paraclipse 14 feet. Does anyone have any more pictures or info about this dish and mount ?
Thanks
Tony



[stogie5150]

Thanks very much for posting these. My dish looks very similar in construction to the Paraclipse 14 feet. Does anyone have any more pictures or info about this dish and mount ?
Thanks
Tony

I know somebody that has a 12'...ME.

Here's mine from start to finish, there are some good PDF scans of earlier Paraclipse literature on the 12 and 14 footer in there. Enjoy.

http://www.satelliteguys.us/c-band-satellite-discussion/142822-care-feeding-12-foot-paraclipse.html



[Anole]

My dish looks very similar in construction to the Paraclipse 14 feet.
Does anyone have any more pictures or info about this dish and mount ?

Tony -

Looking through your old posts, I see you were in Central American in 2007.
But, I didn't see where you had posted any pictures of a Paraclipse 14' dish (maybe I missed it).
If you do have one and want help with it, you could start a thread in the C-band Department, and include a few pictures.
The guys will probably be able to identify your dish and help you in many ways. - :up

Stogie's thread listed above will certainly give you a lot of understanding of that dish!
I know I really enjoyed reading the saga!



[hersato]

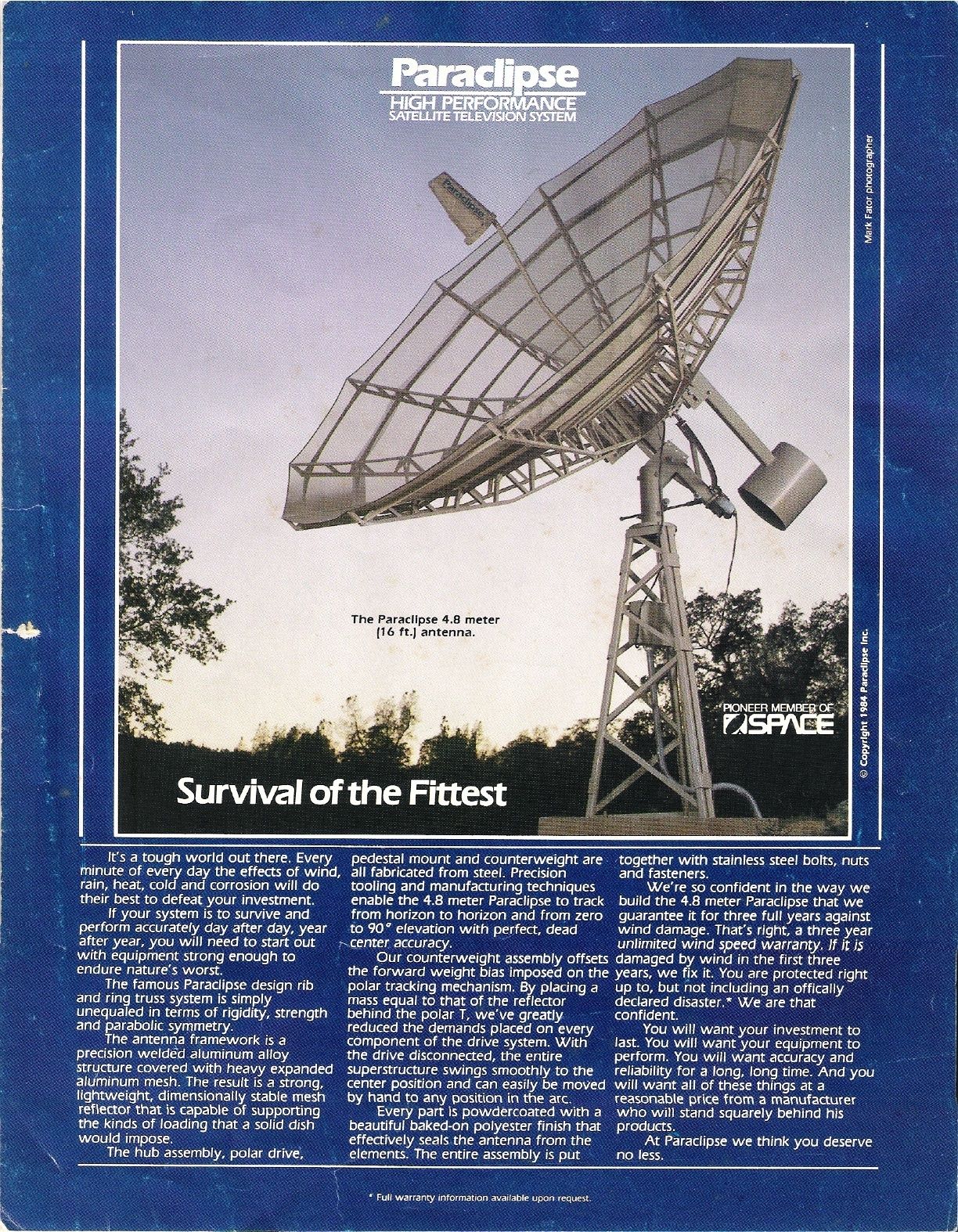

Paraclipse 16' brochure

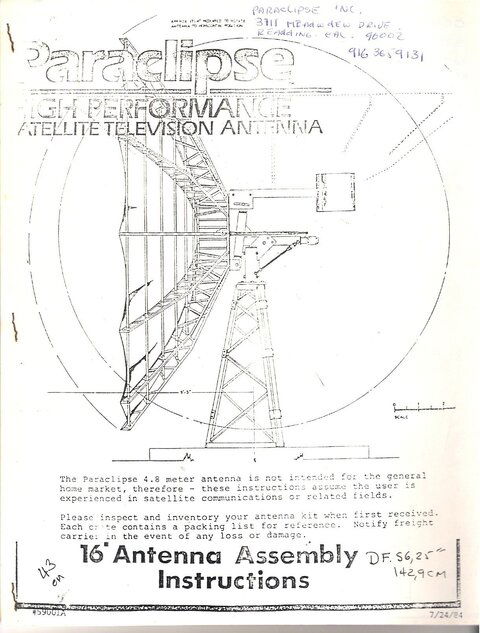

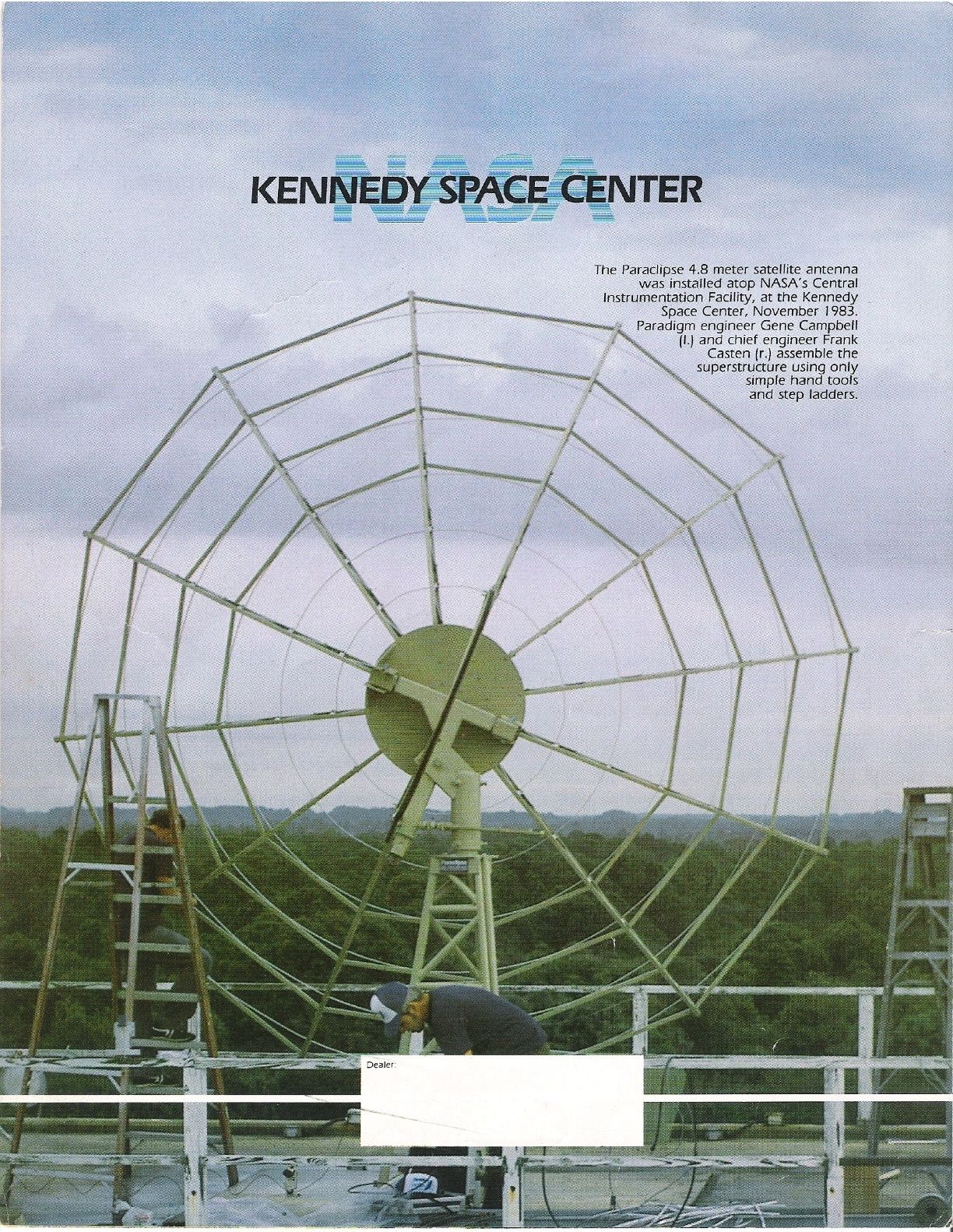

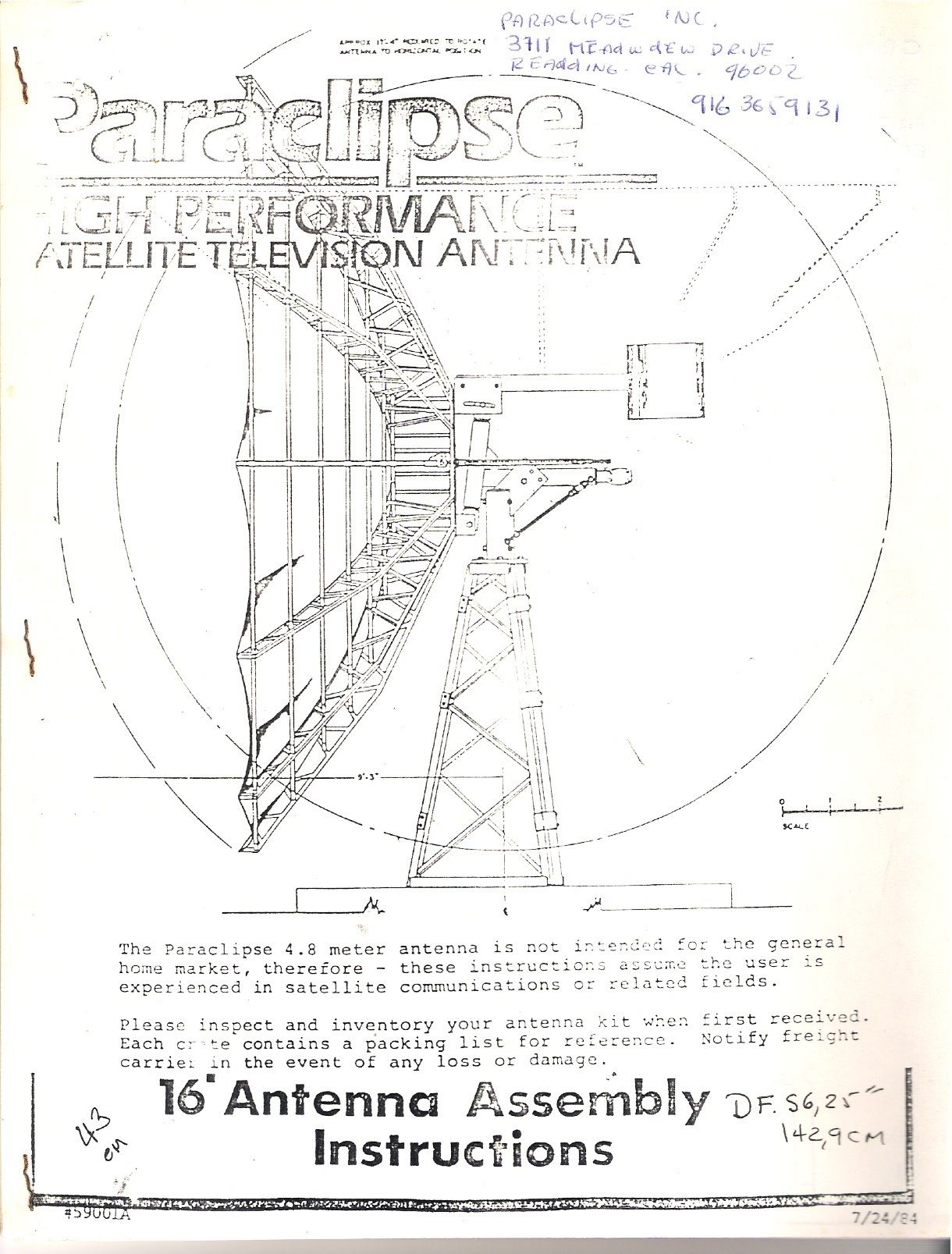

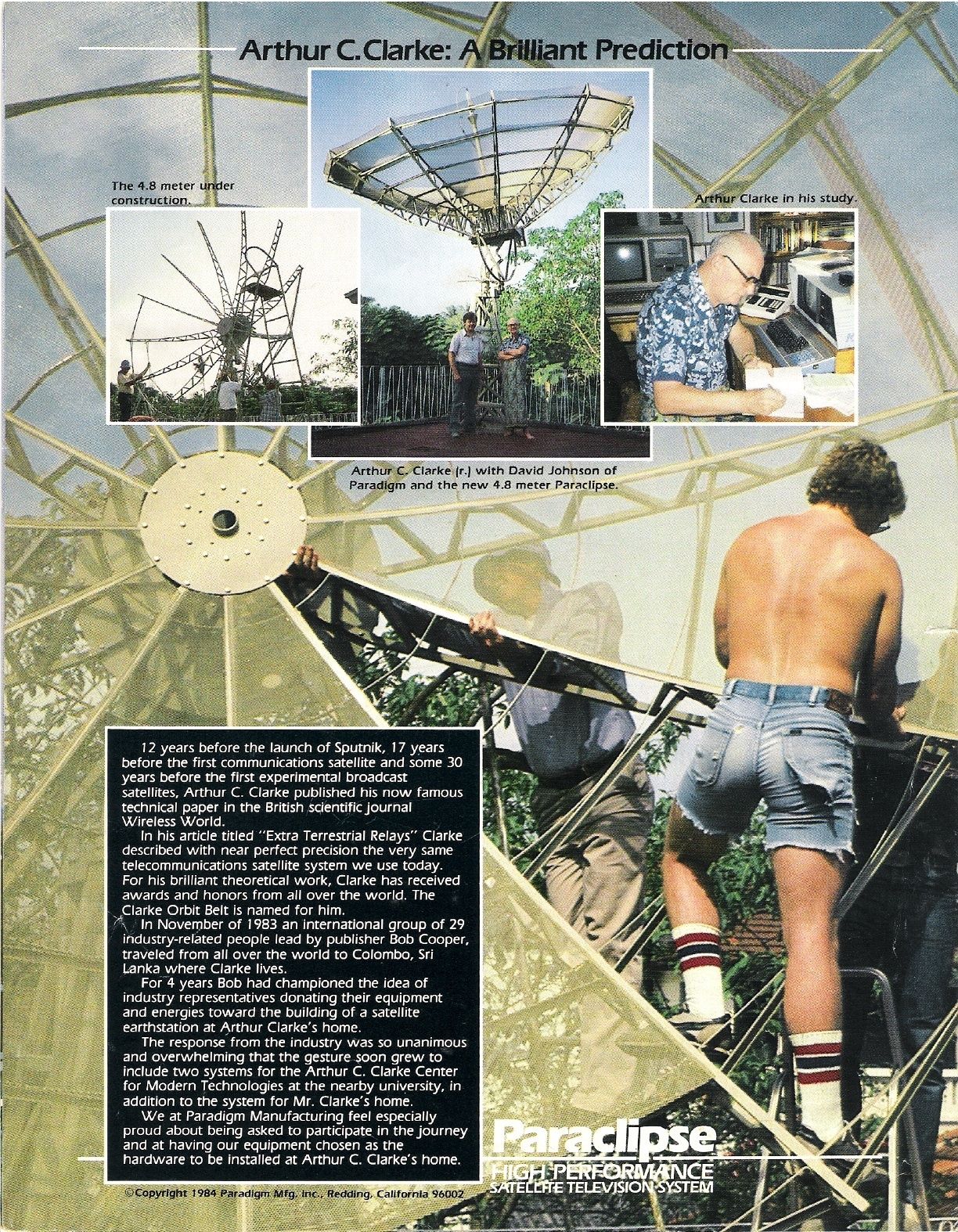

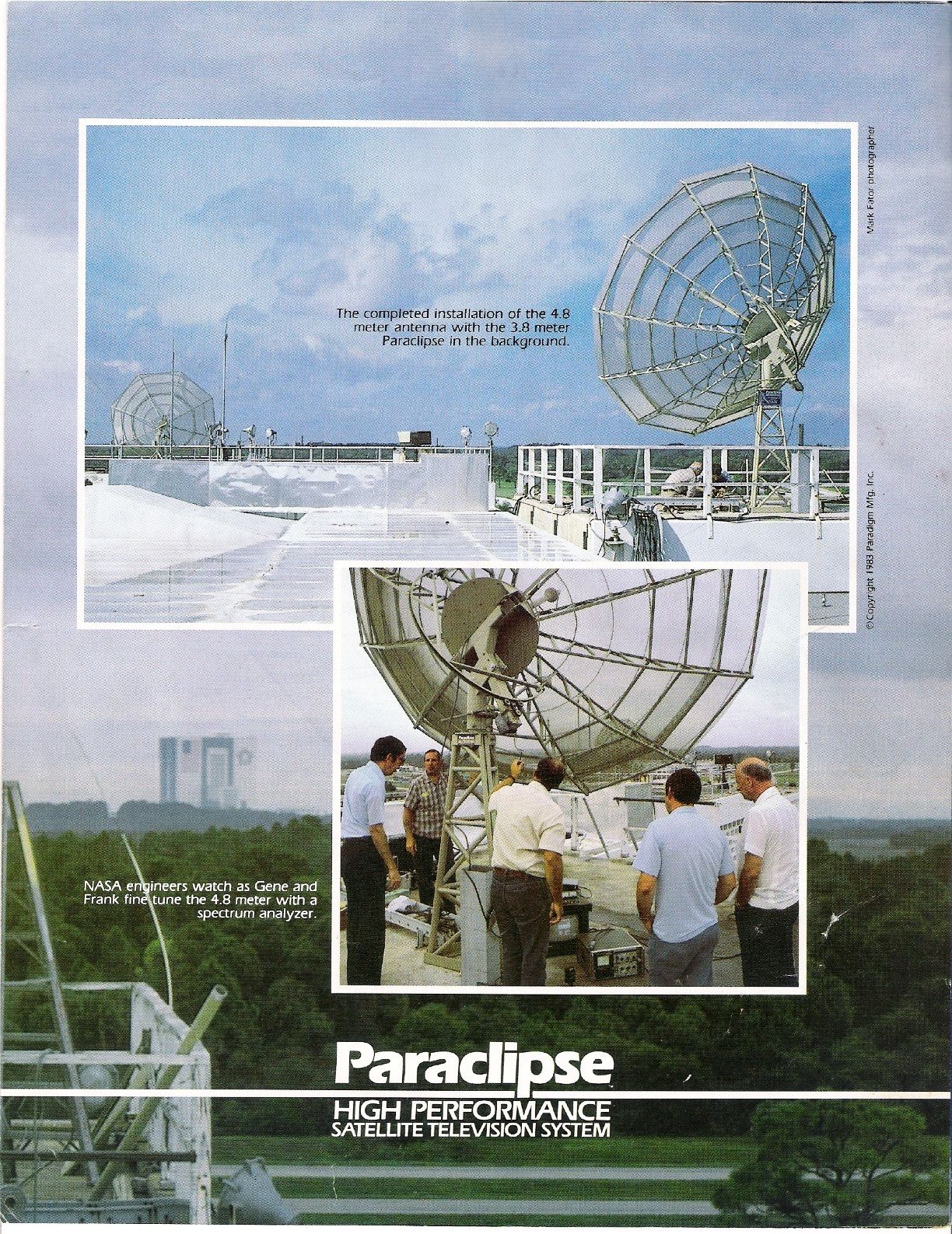

Thanks very much Natedawg63 for the brochure, i also have a Paraclipse 16 ‘ brochure from 1984 and the assembly instructions, here is the first page.
Regards

Hersato
