Splitting C2-PLL lnbf output?

Status
Please reply by conversation.
mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West
I have a C2-PLL and would like to connect to 3-4 receivers without screwing things up. One of the LNBF outputs will go direct to my primary receiver/Vbox and works fine as is. From the other LNBF output I would like to connect 2 additional receivers which understandably would receive the signal to whatever satellite position as determined by the Vbox. If I want to split the second LNBF output to connect the 2 receivers can I use a regular splitter or is special type of splitter required? Reversed DiSEqC switch?

mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West
Thank you, that makes sense now. If you don't think about this stuff for a while it's easy to forget. I just looked at the Zinwell SAM-3402 and it looks like it has separate 13v/18v inputs or are you using the Ant input to be able to get both H/V feeds with the connected receivers? I just want to be sure both receivers can access H/V feeds independently.

Last edited:
F

Fearless Freep

On Vacation
Apr 17, 2021
17
20
USA
The Ant input is not used. The C2PLL two outputs are connected to the H/V inputs on the switch. One output sends the vertical channels and the other sends the horizontal channels to the switch. The switch then connects which one is needed by the receivers.

  • Like
Reactions: Titanium and mr3p
mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West
Thank you, now I understand. I should have thought this through before I pulled cables a couple of weeks ago, LOL Looks like I might need to make a change to one of my cable runs or I guess I could stick the switch outside and add another cable. Is there any way to split a single LNBF feed to 2 receivers?

F

Fearless Freep

On Vacation
Apr 17, 2021
17
20
USA
Another use for the multi-switch is to combine two single polarity LNBs as in an orthomode feed to one cable going to the receiver. My two motorized C and Ku dishes with orthos are connected to one 4 X 8 multi-switch feeding seven receivers. Only one receiver controls the two dish motors in this particular setup.

  • Like
Reactions: mr3p and Titanium
mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West
I probably should have pulled 2 cables from the LNB back to the main panel and distributed from that point but I'll figure out how to be reconfigure cabling. Any suggestions on exterior rated 4x multi switch?

Cham

Cham

VE4GLS
Pub Member / Supporter
Dec 19, 2008
2,442
1,005
Boonies
Been using Zinwell SAM-4803 powerd switches for a few years, they have H and V voltage polarity for LNBFs and inputs for two dual LNBFs. Eight outputs so each receiver would see each LNBF V or H. Requires 24 Vdc.
I have 3 of them in my system, and bought a spare so I'll never have one blow out on me. :)
Think these are outdoor rated but I would keep them out of direct sun & rain if possible.
I installed them in an enclosure at the dish, and run a power cable from the 24v p/s in the house. If you have power at the dishes you could power it there, the units come with a wall-wart (at least mine did).

  • Like
Reactions: Titanium and mr3p
Comptech

Comptech

SatelliteGuys Pro
Jun 26, 2006
3,160
2,348
Travelers Rest SC
Nothing beats a two dish setup, one a Ku and the other a c-band dish, both with ortho feeds running to a modded WNC 4x8 switch to feed your home!

mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West

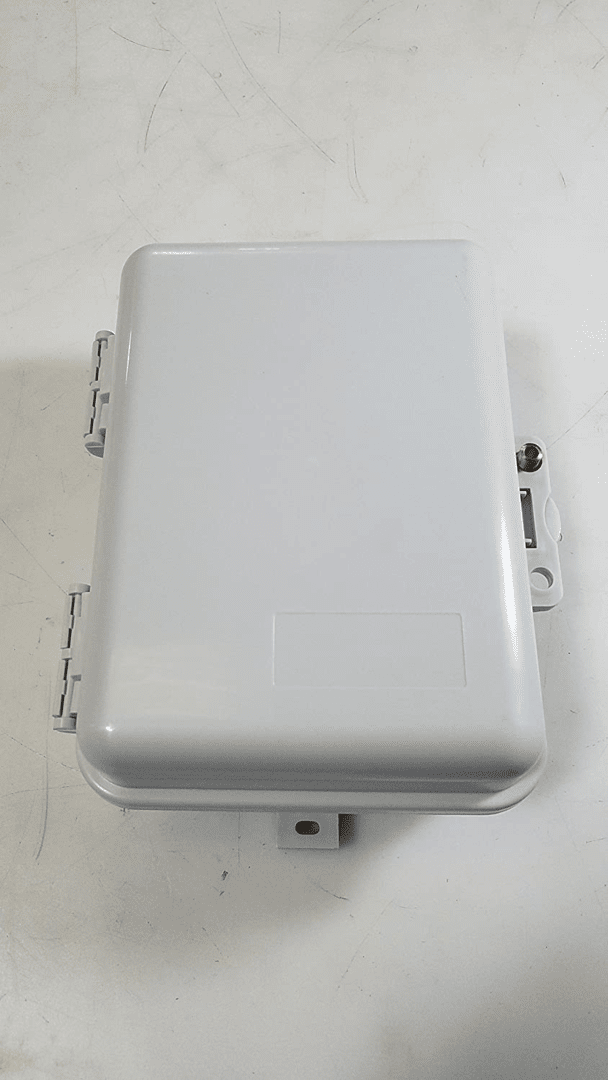

I'm thinking maybe the best option at this point is purchase the inexpensive Zinwell multi-switch and put it next to the dish inside one of these enclosures
1623026988142

mr3p

mr3p

Thread Starter
SatelliteGuys Pro
Pub Member / Supporter
Jan 1, 2010
1,225
195
West
What determines whether you need a powered or can use a non-powered multi-switch? Number of receivers?

iBoston

iBoston

SatelliteGuys Pro
Jul 15, 2014
2,193
1,503
North Central
What determines whether you need a powered or can use a non-powered multi-switch? Number of receivers?

I have NOT had luck with the non-powered multi-switches. I have tried them a couple times to no avail. I have mostly the multiswitch that allows 4 receivers, but i also have a couple that allow 8 receivers. It all depends on how many receivers your planning, and whether or not you have limitations on the amount of RG6 you can run.

  • Like
Reactions: mr3p
Captain Midnight

Captain Midnight

SatelliteGuys Pro
Sep 16, 2019
475
310
Greers Ferry, Arkansas
Comptech

Comptech

SatelliteGuys Pro
Jun 26, 2006
3,160
2,348
Travelers Rest SC
I chose to you a modded switch because I use PLL LNB's. They draw more current. You could more than likely get away with a unmodded one. but my labels on the LNB's say 18 to 24 volts, so I feed them that.

F

Fearless Freep

On Vacation
Apr 17, 2021
17
20
USA
I chose to you a modded switch because I use PLL LNB's. They draw more current. You could more than likely get away with a unmodded one. but my labels on the LNB's say 18 to 24 volts, so I feed them that.
Actually the C2PLL LNBF will not work with a switch modded to power LNBs. You have to have 13V from the vertical port and 18V+ from the horizontal for an LNBF to work.

Comptech

Comptech

SatelliteGuys Pro
Jun 26, 2006
3,160
2,348
Travelers Rest SC
Wrong, the input to the switch selects polarity from the receiver. Have you ever seen a 4x8 switch? there are 13 and 18 volt inputs from the dish along with 22khz inputs from the dishes. What the switch sees from your receiver it chooses the correct dish input to use.

  • Sad
Reactions: Titanium
